Ford Truck
>>
2010
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Injector

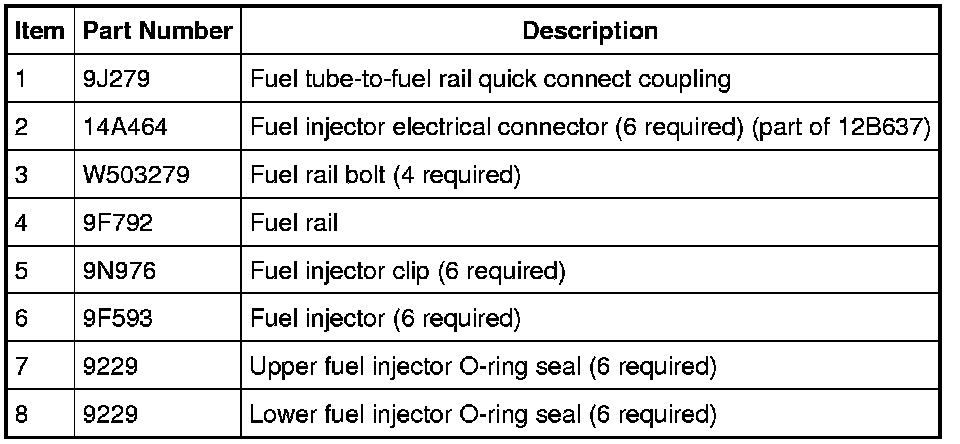

Fuel Injector

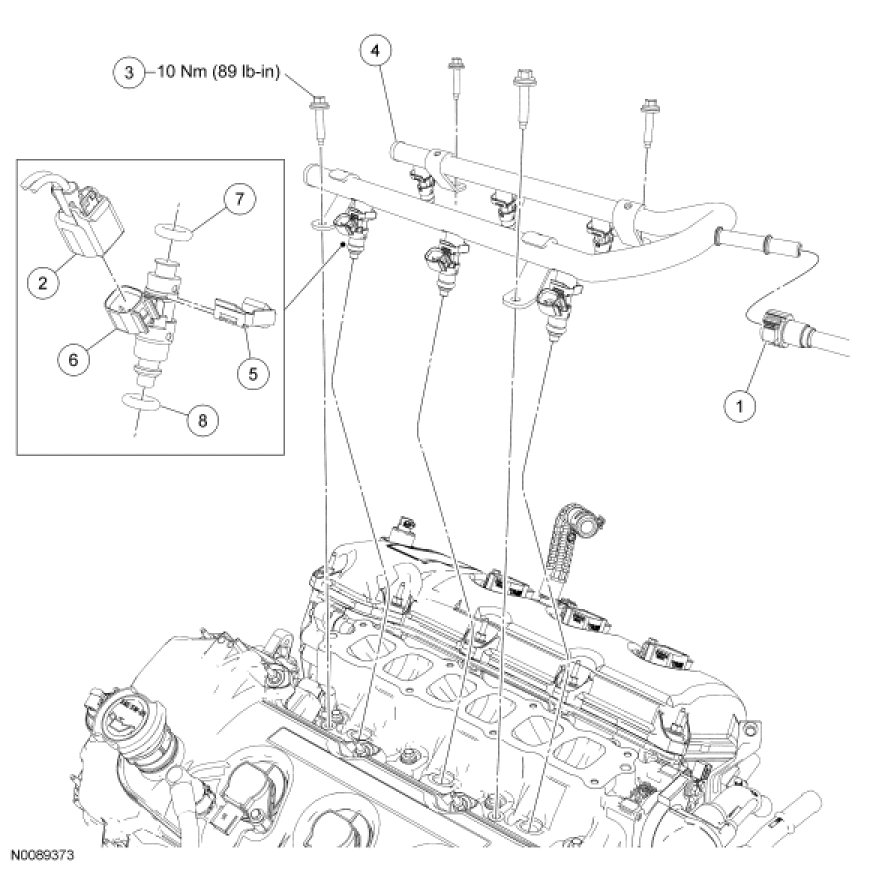

Fuel Rail
and
Fuel Injector
- Exploded View
