Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

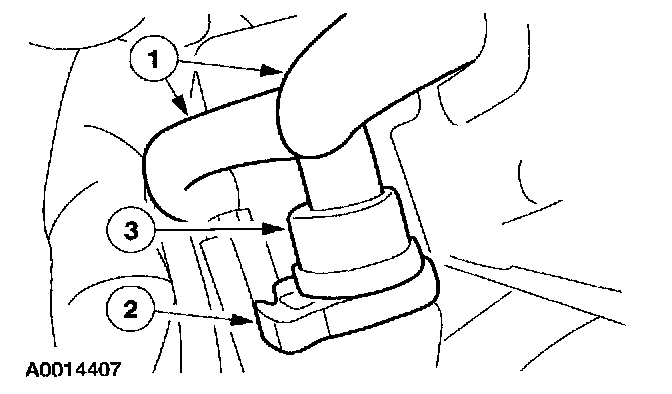

1. Remove the Positive Crankcase Ventilation (PCV) valve.
1 Disconnect the vacuum hoses.
2 Release the retainer clamp.
3 Remove PCV valve from the hose.

INSTALLATION
1. To install, reverse the removal procedure.
