System Diagram

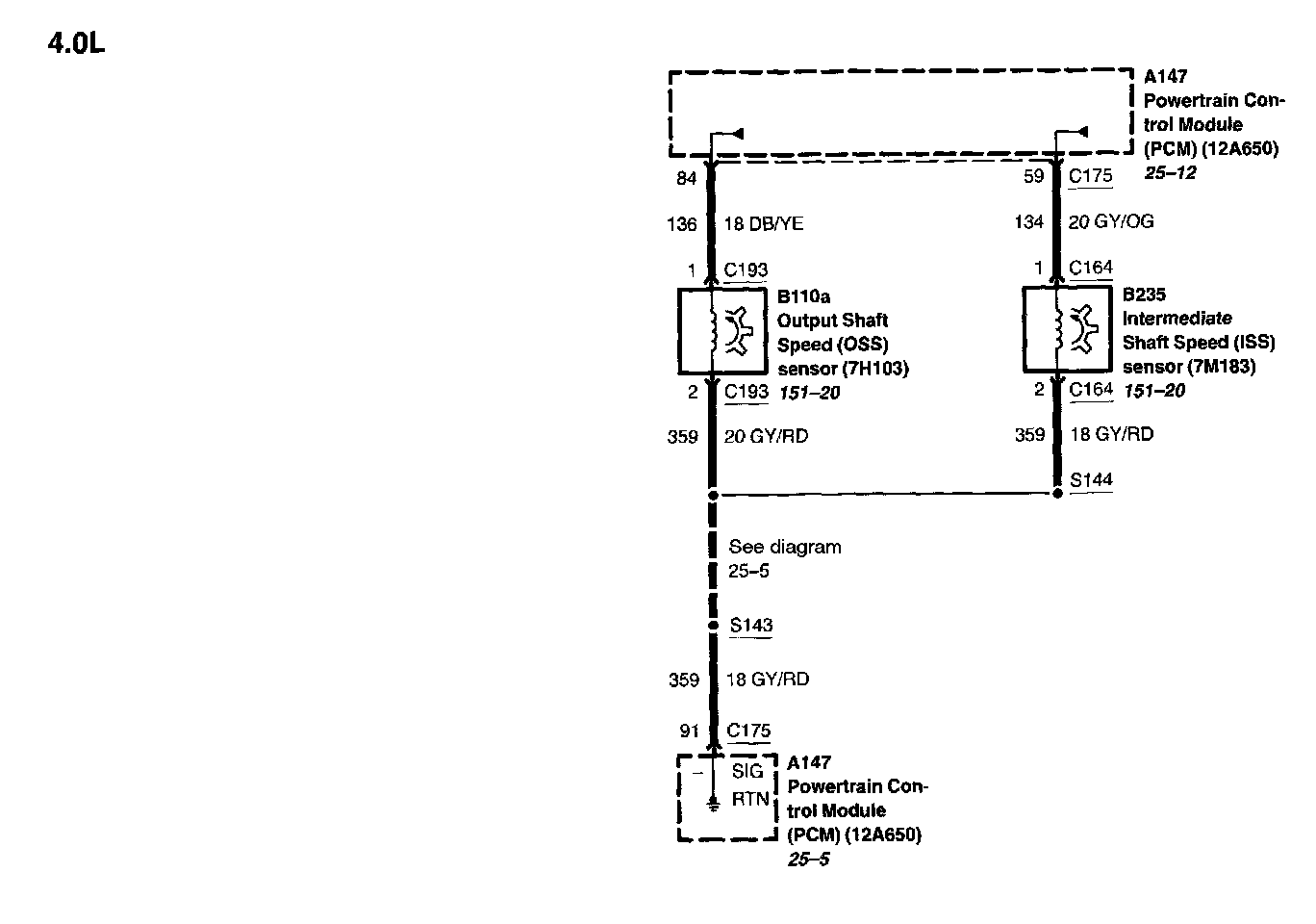

Diagram 30-1:

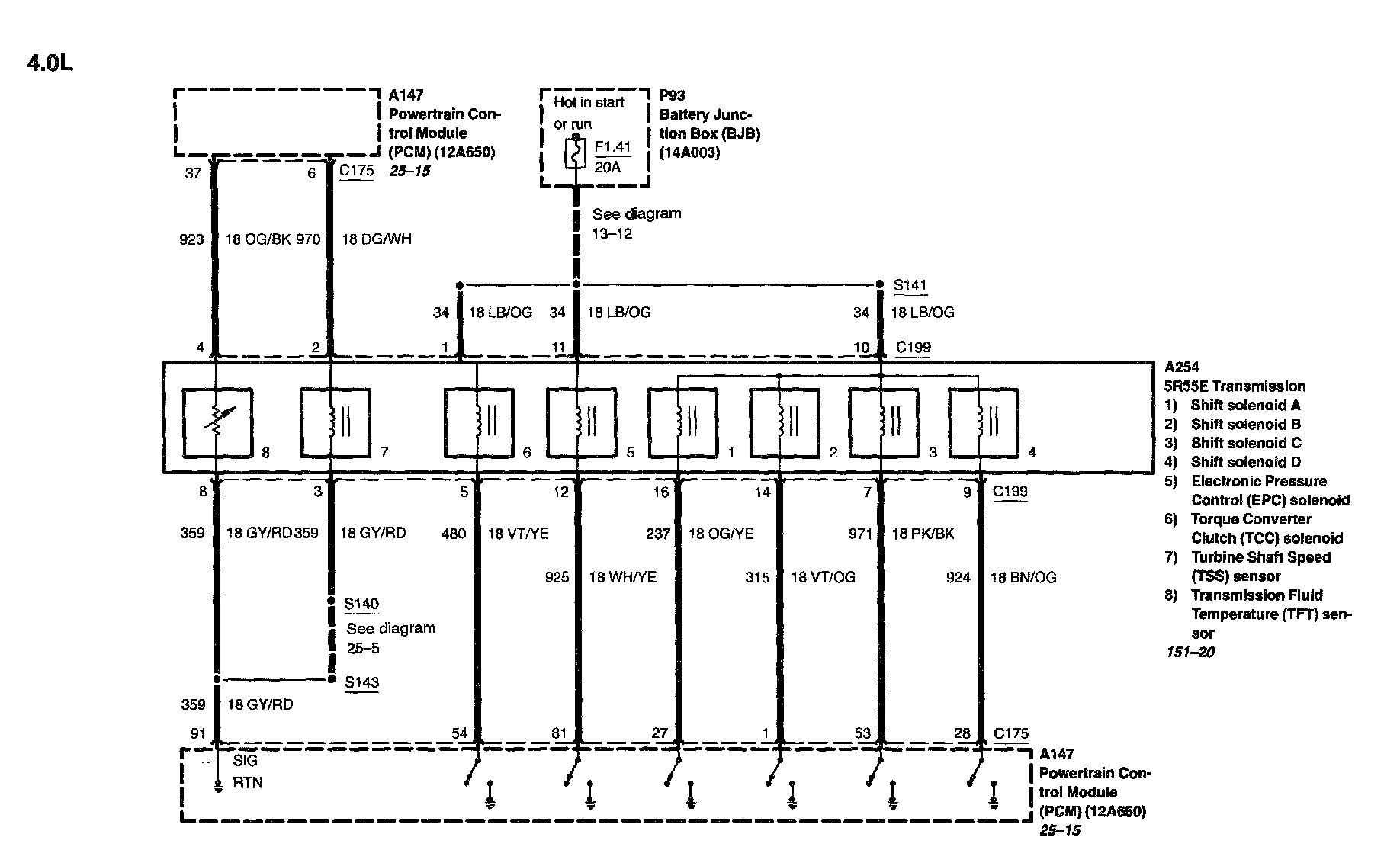

Diagram 30-2:






Diagram 30-5:






Diagram 30-6:






Diagram 30-7:
