Flex Plate: Service and Repair

Flexplate

Removal
1. Remove the transmission.

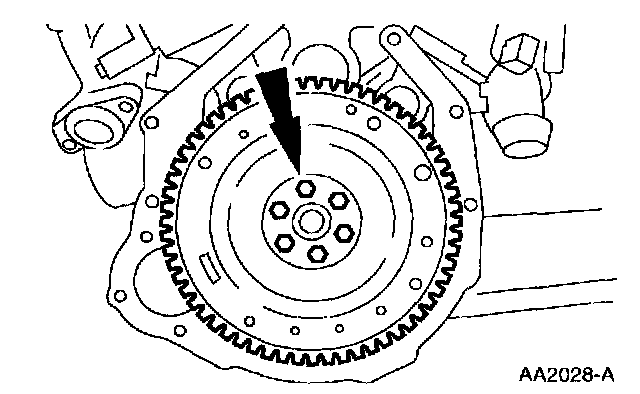

2. Remove the bolts and the flexplate.
- Inspect the flexplate for cracks or other damage. Install a new flexplate if necessary.

Installation

NOTE: Special bolts are used for the installation. Do not use standard bolts.





1. Position the flexplate on the crankshaft and install the bolts.
- Tighten the bolts in a cries-cross pattern.
2. Install the transmission.
