High Pressure Safety Valve HVAC: Service and Repair

REMOVAL
1. Recover the refrigerant.

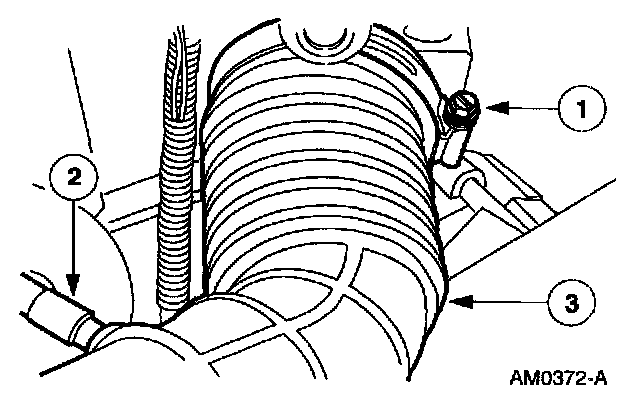

2. Position the air cleaner outlet tube aside.
1 Loosen the clamp.
2 Disconnect the crankcase ventilation tube.
3 Position the air cleaner outlet tube aside.







3. Remove the A/C pressure relief valve.

INSTALLATION
1. To install, reverse the removal procedure.
2. Evacuate, leak test, and charge the refrigerant system.
