Test A

PINPOINT TEST A: MECHANICAL SHIFT FUNCTIONAL TEST

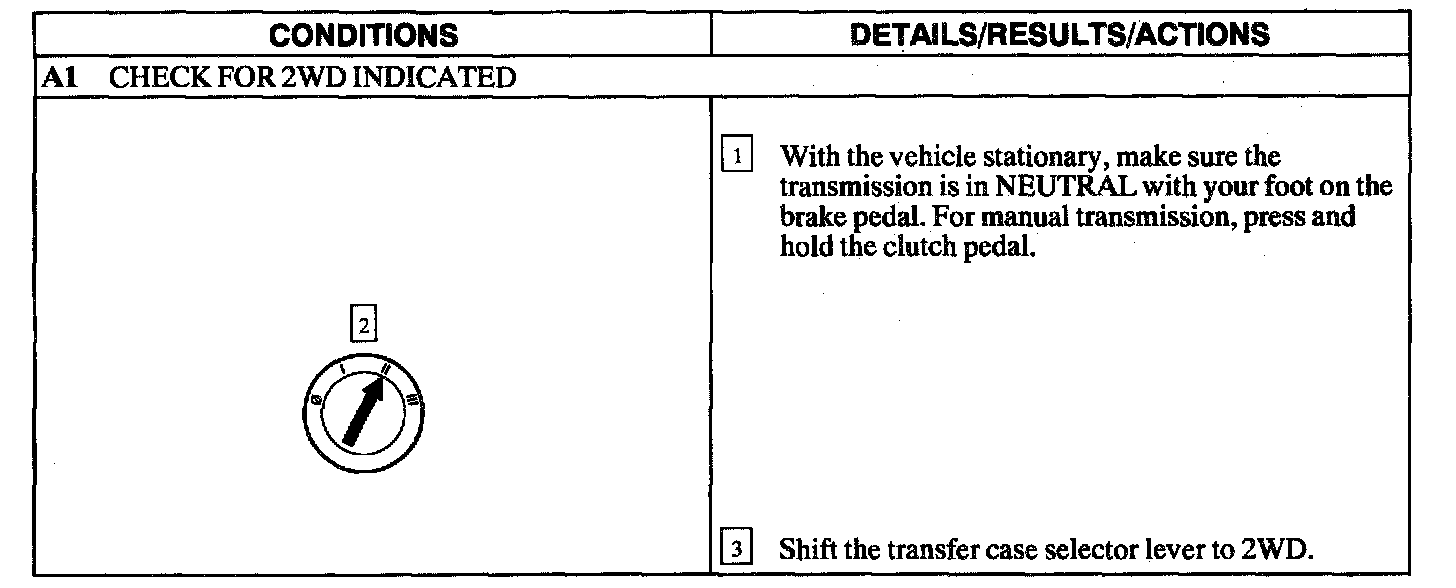

Test A1

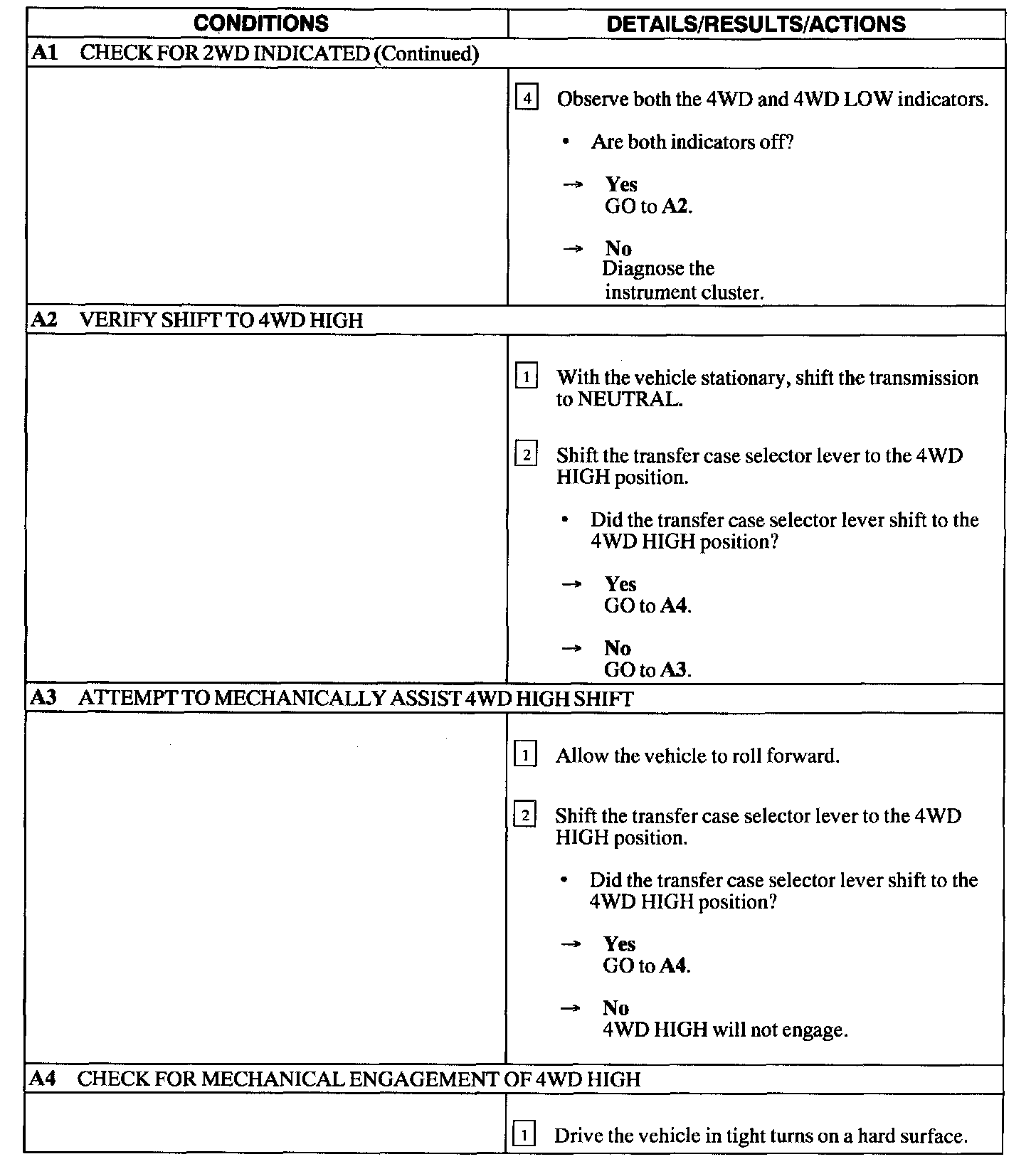

Test A1-A4

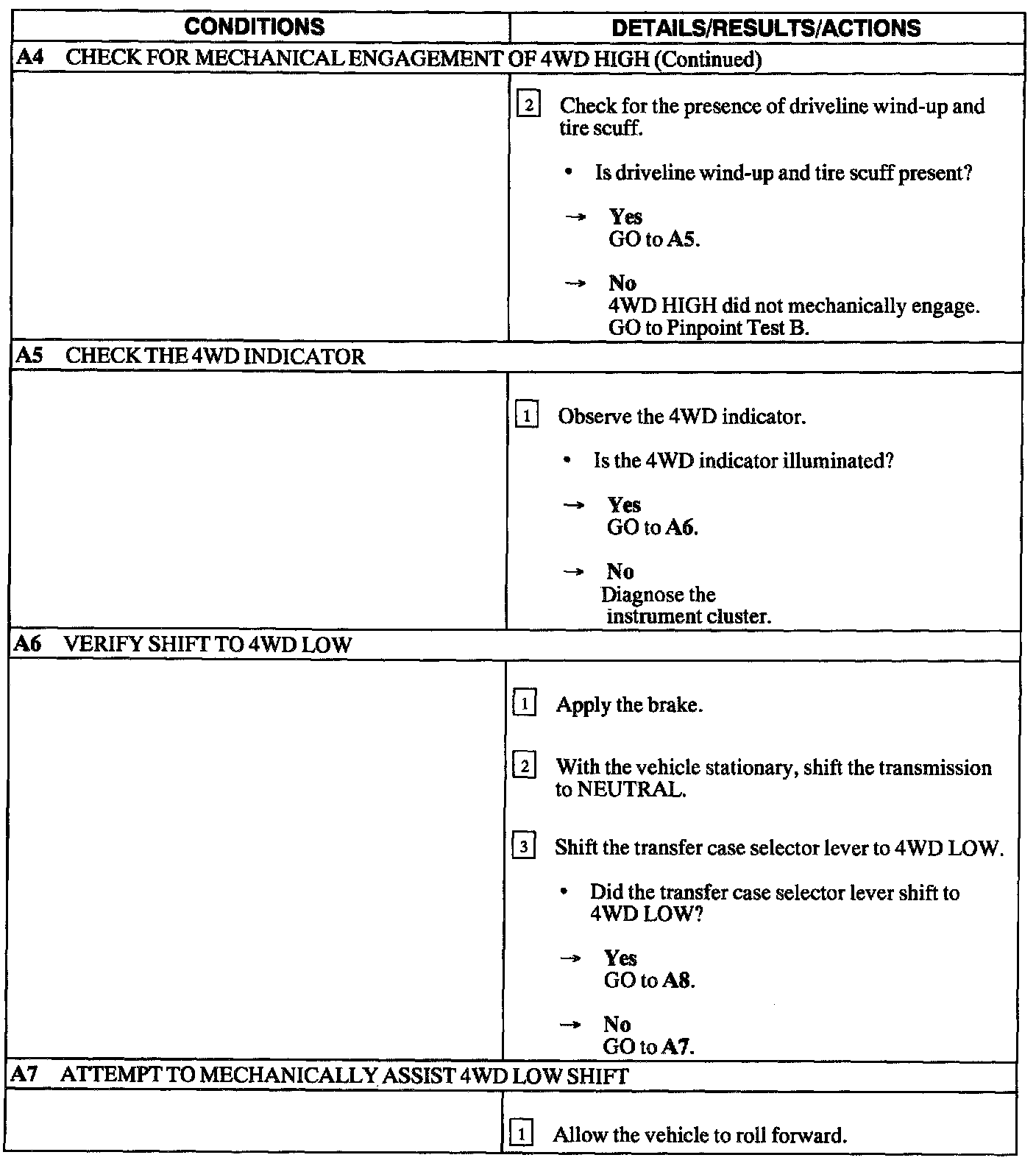

Test A4-A7

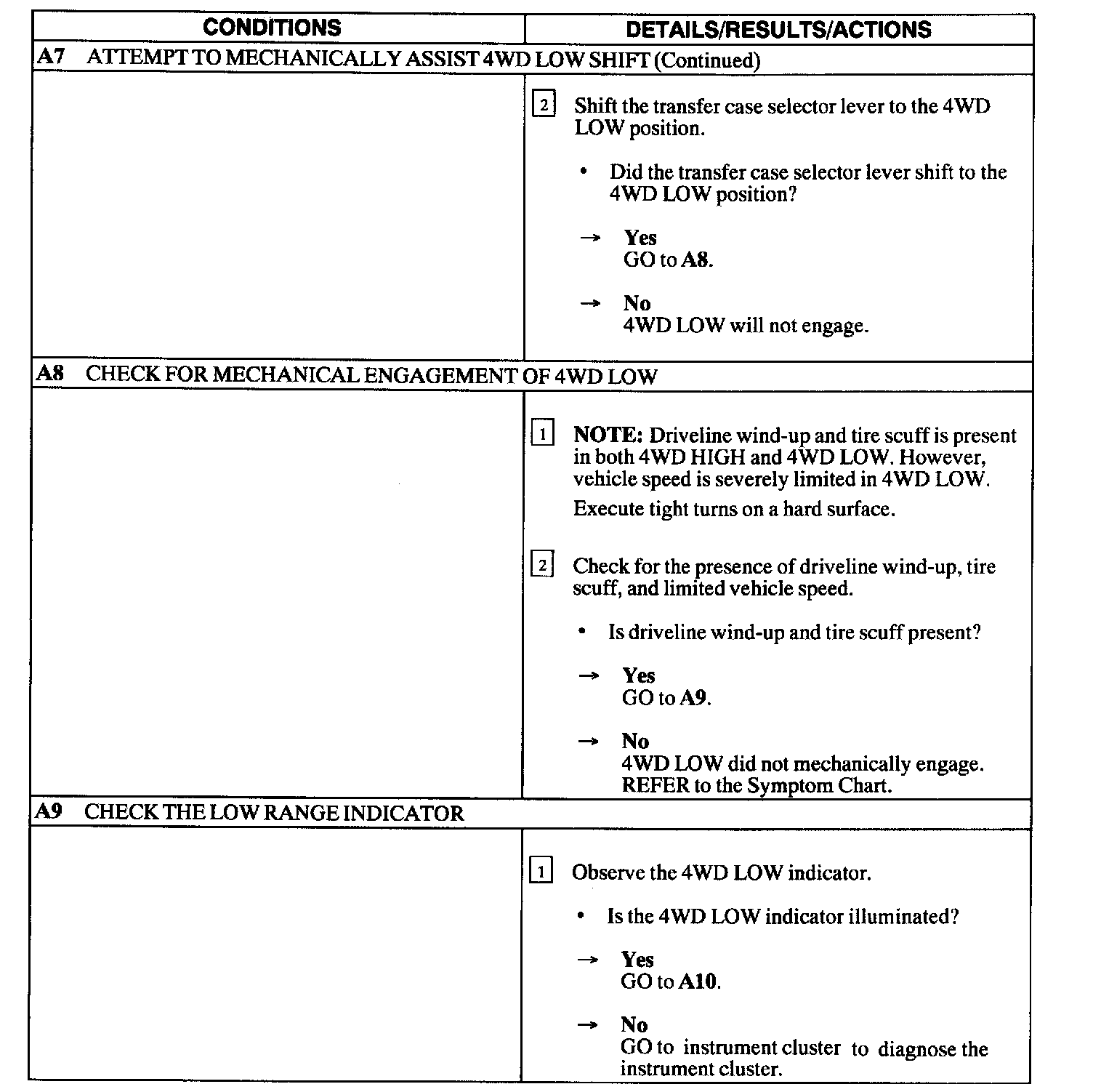

Test A7-A9

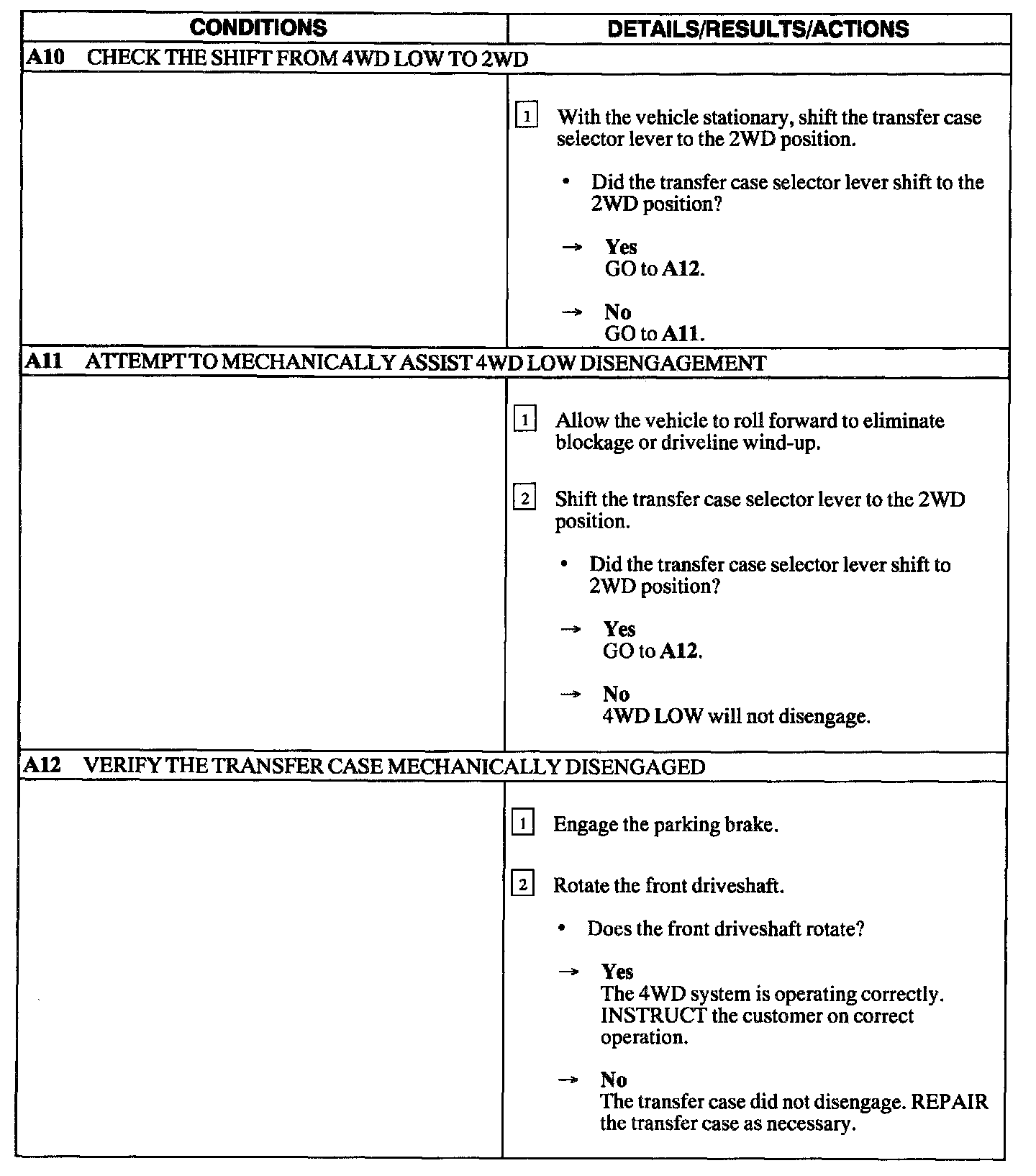

Test A10-A12
