Test C

PINPOINT TEST C: ELECTRONIC SHIFT FUNCTIONAL TEST

CAUTION: The function test must be carried out on a hard surface in a vacant area without traffic.

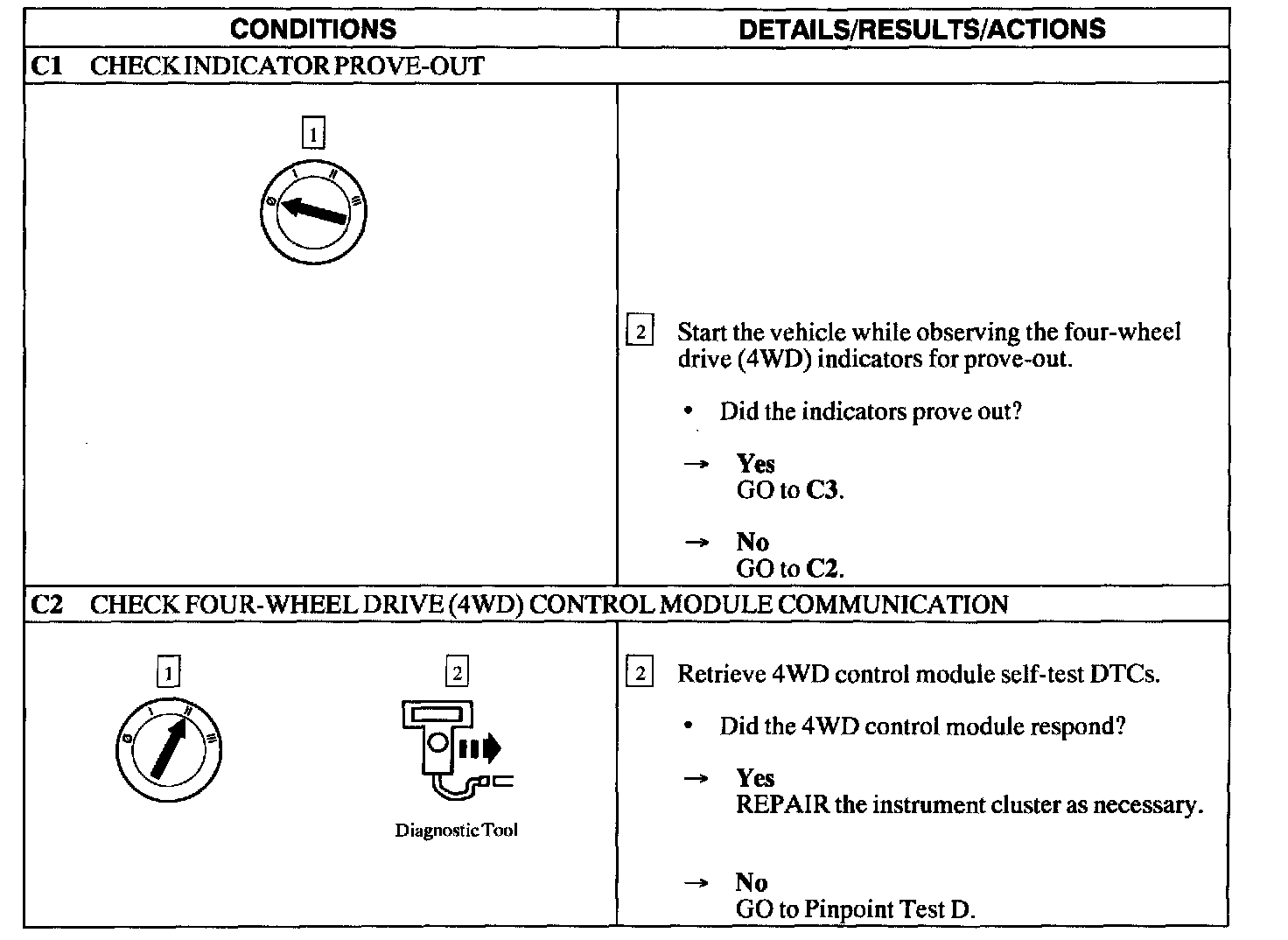

Test C1-C2

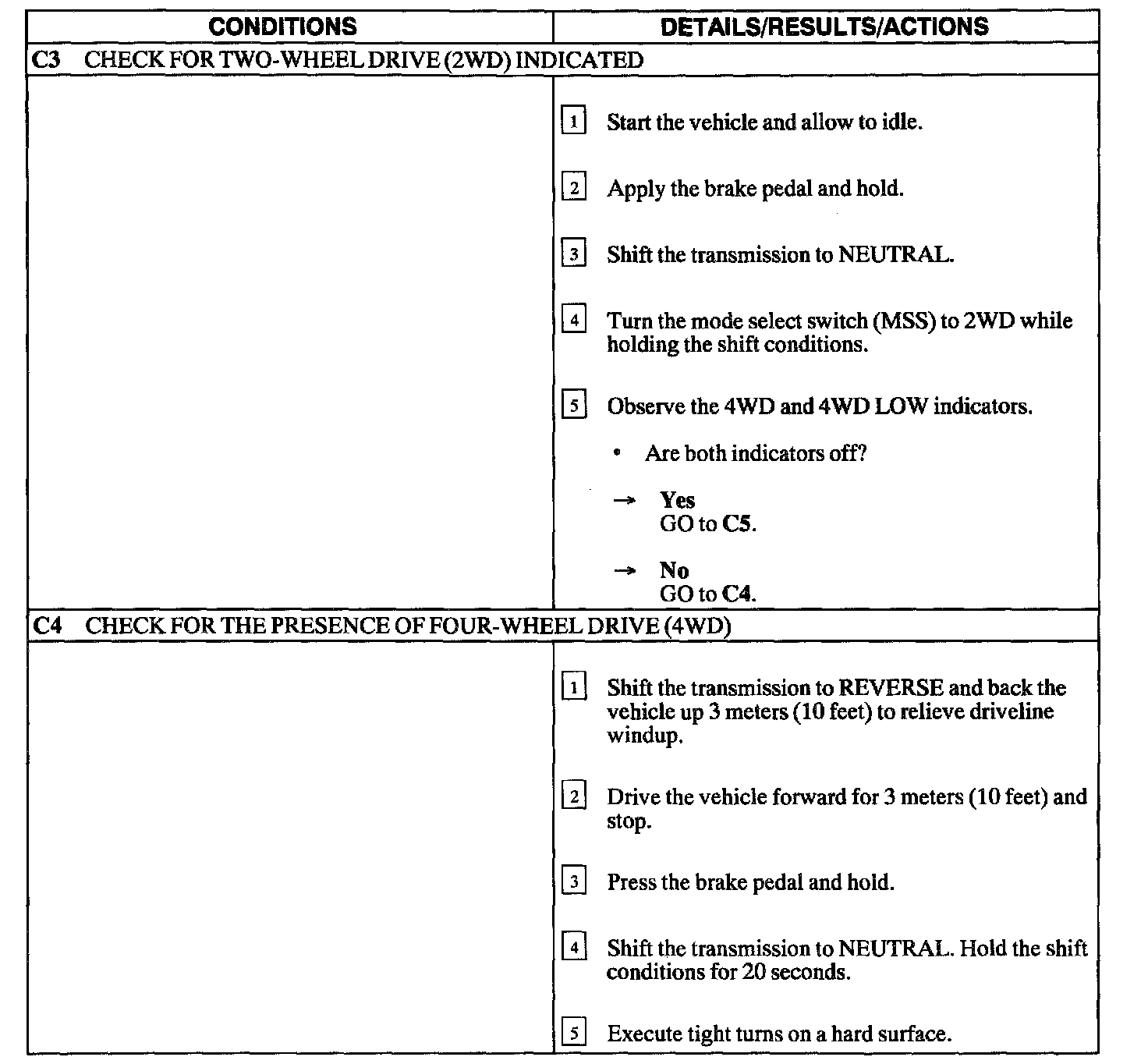

Test C3-C4

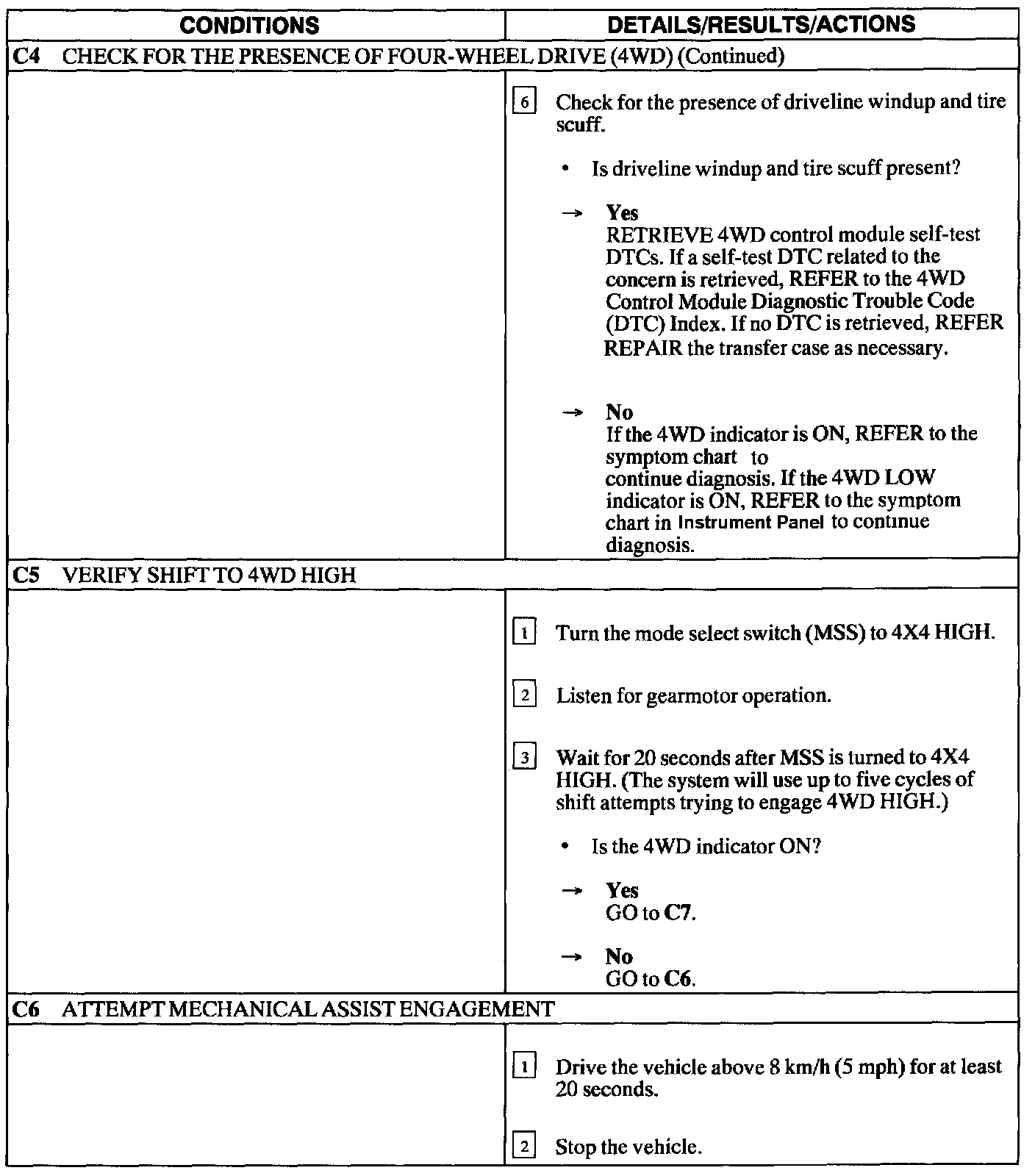

Test C4-C6

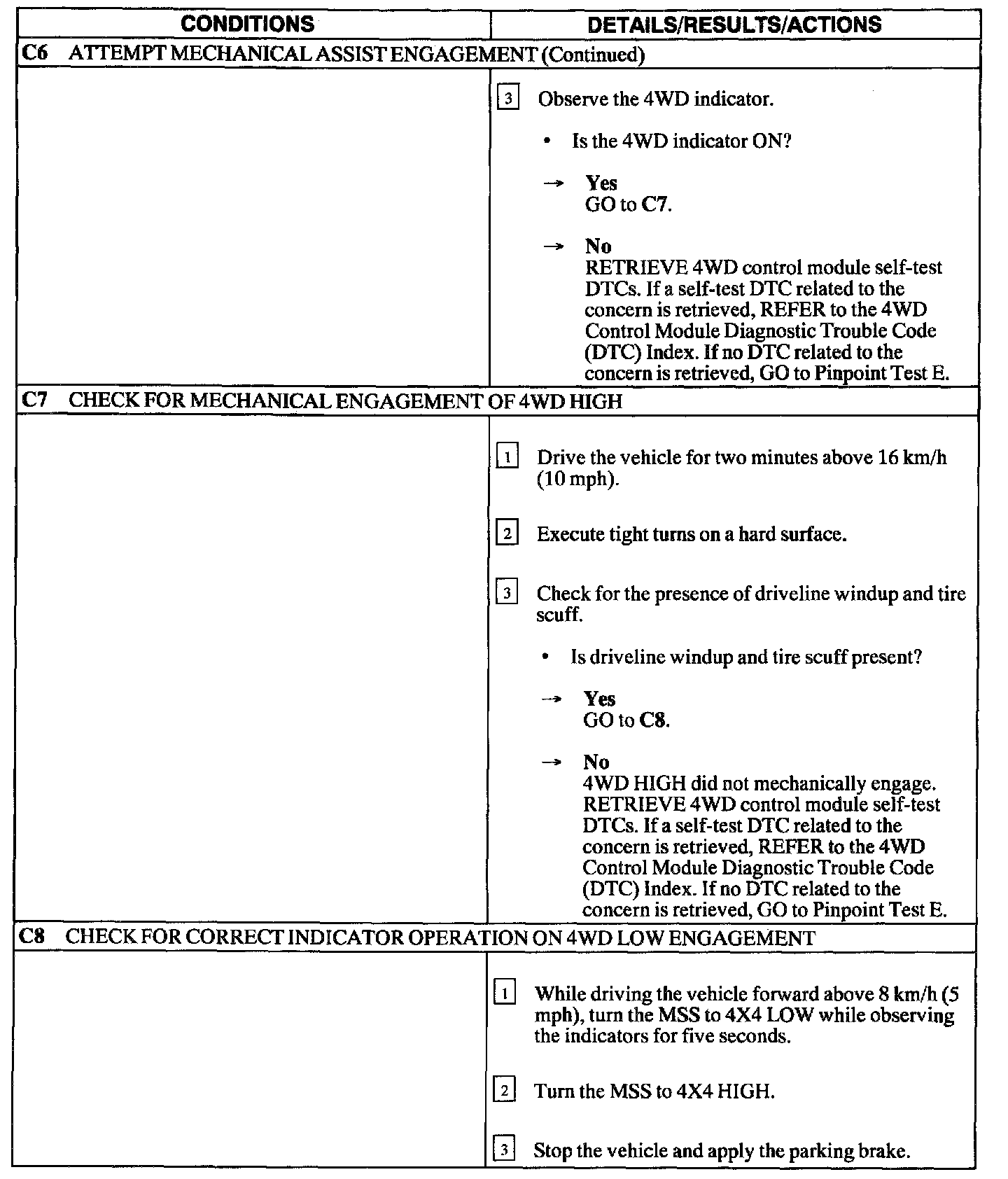

Test C6-C8

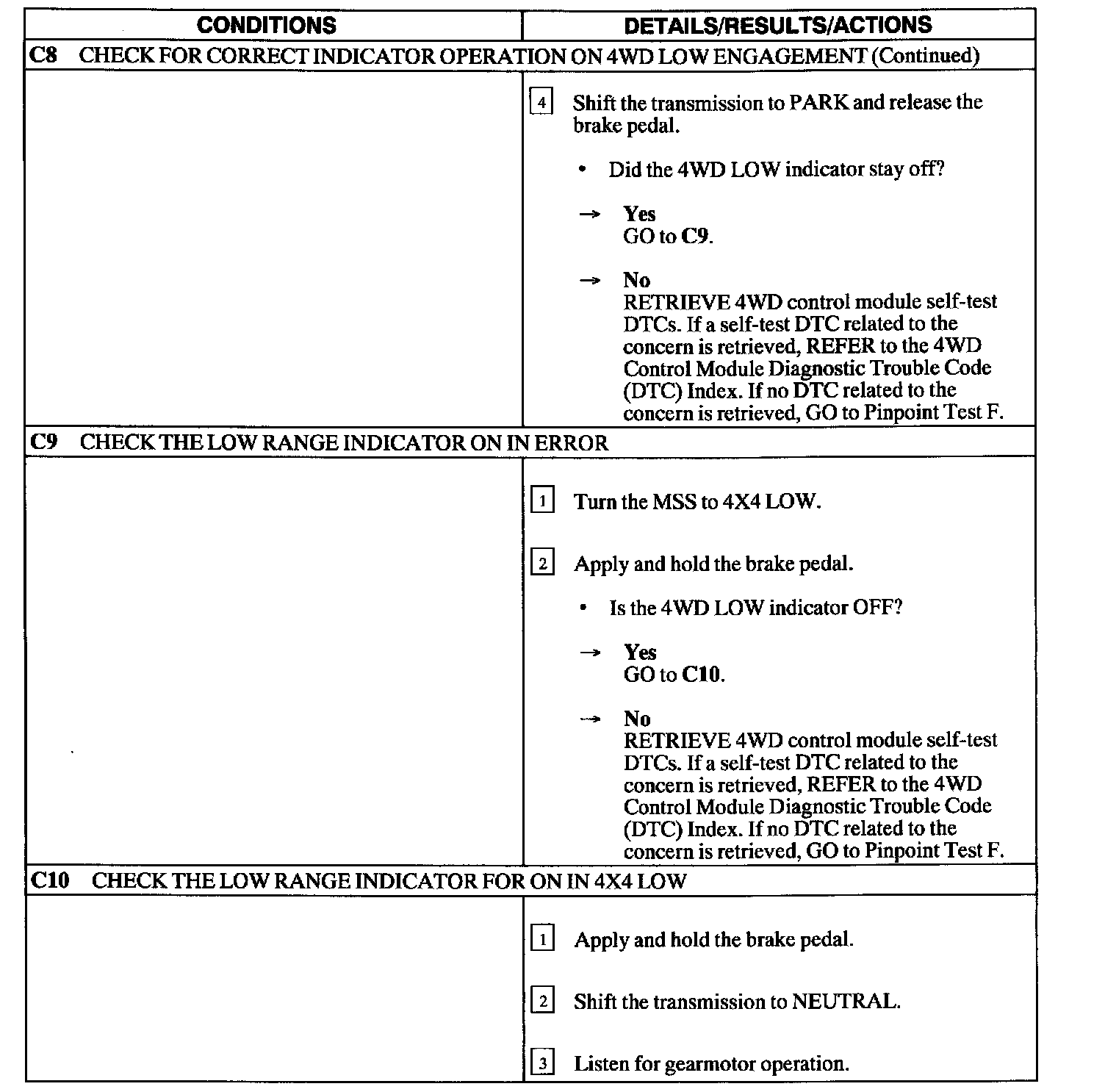

Test C8-C10

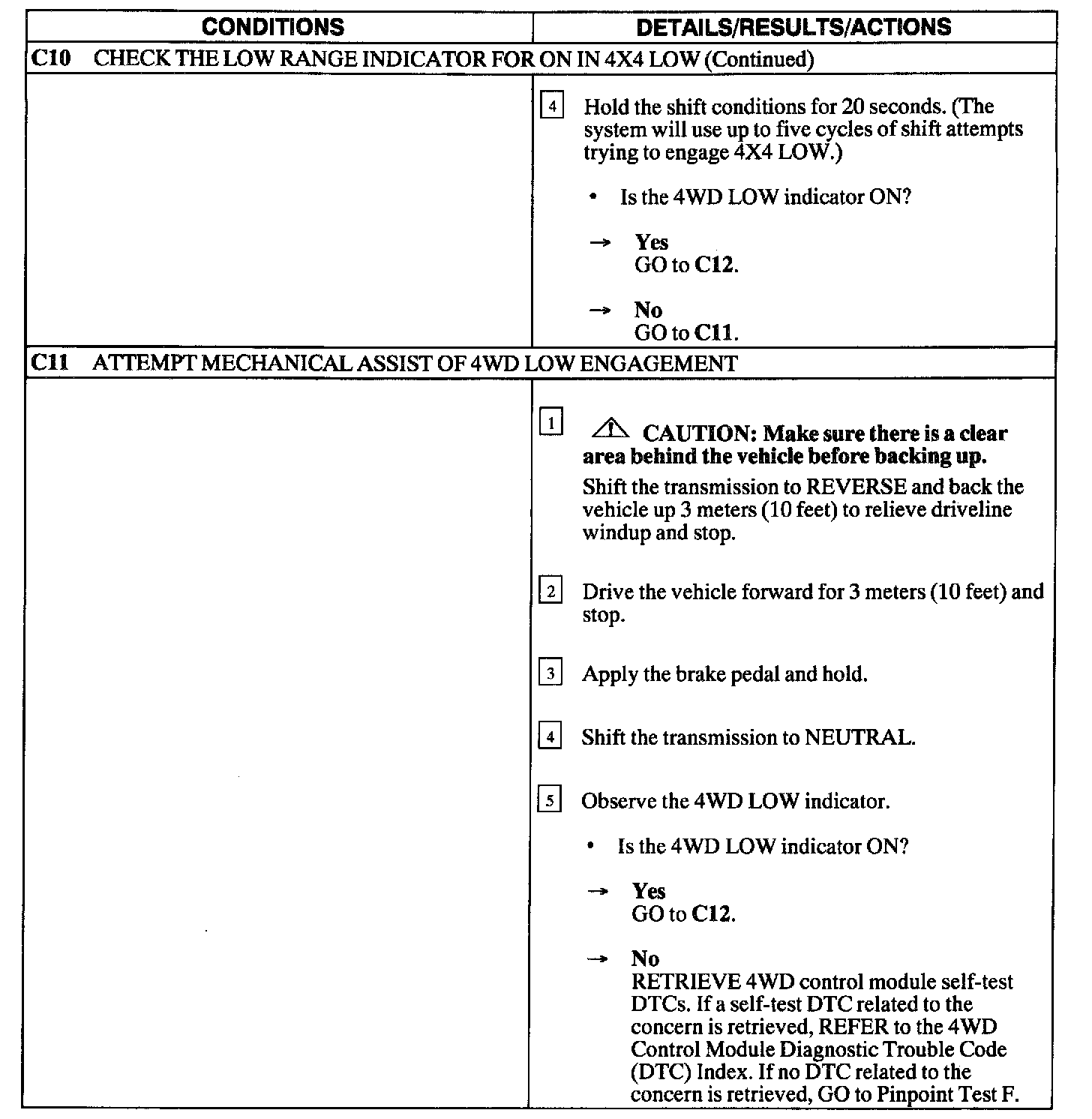

Test C10-C11

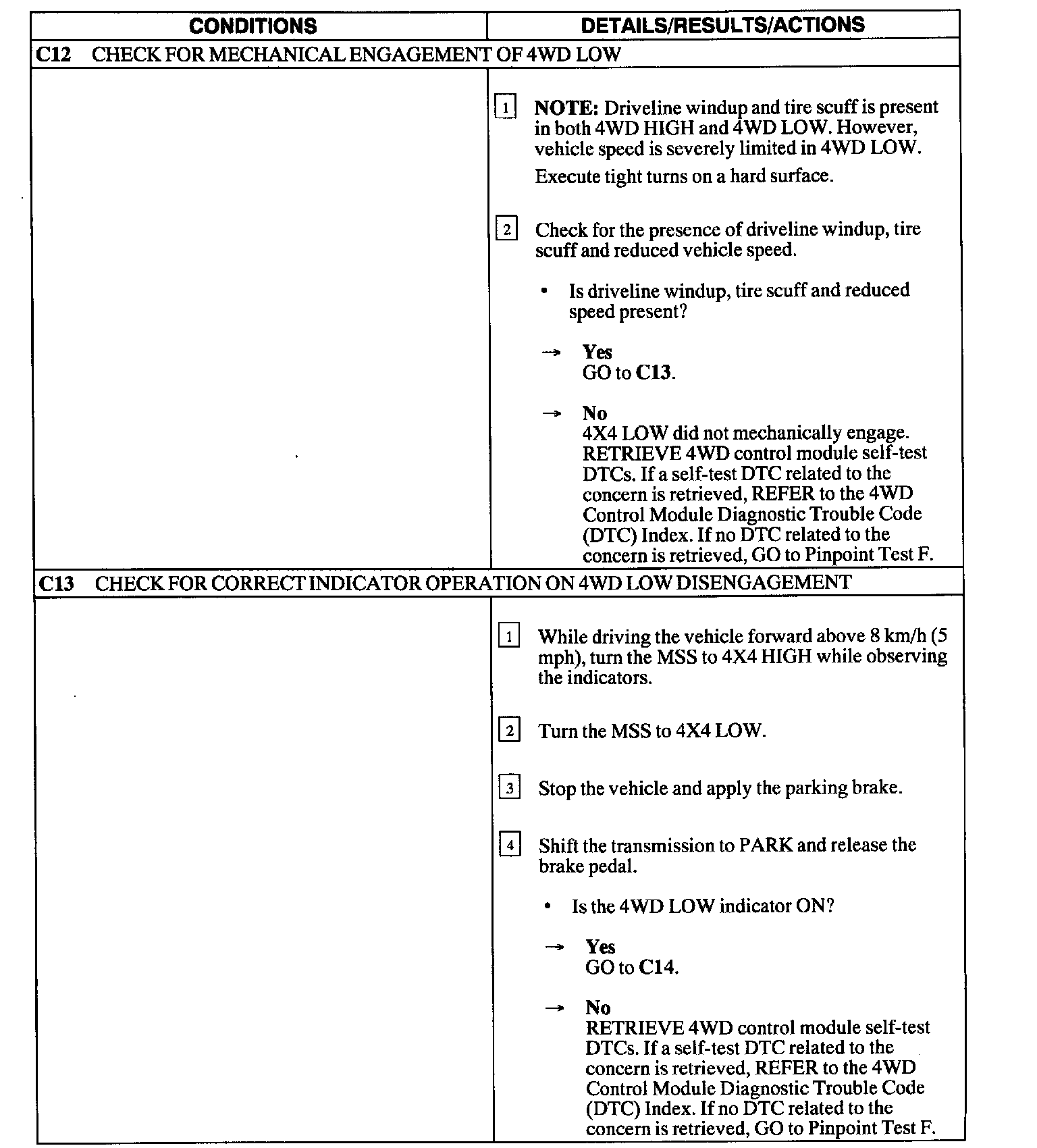

Test C12-C13

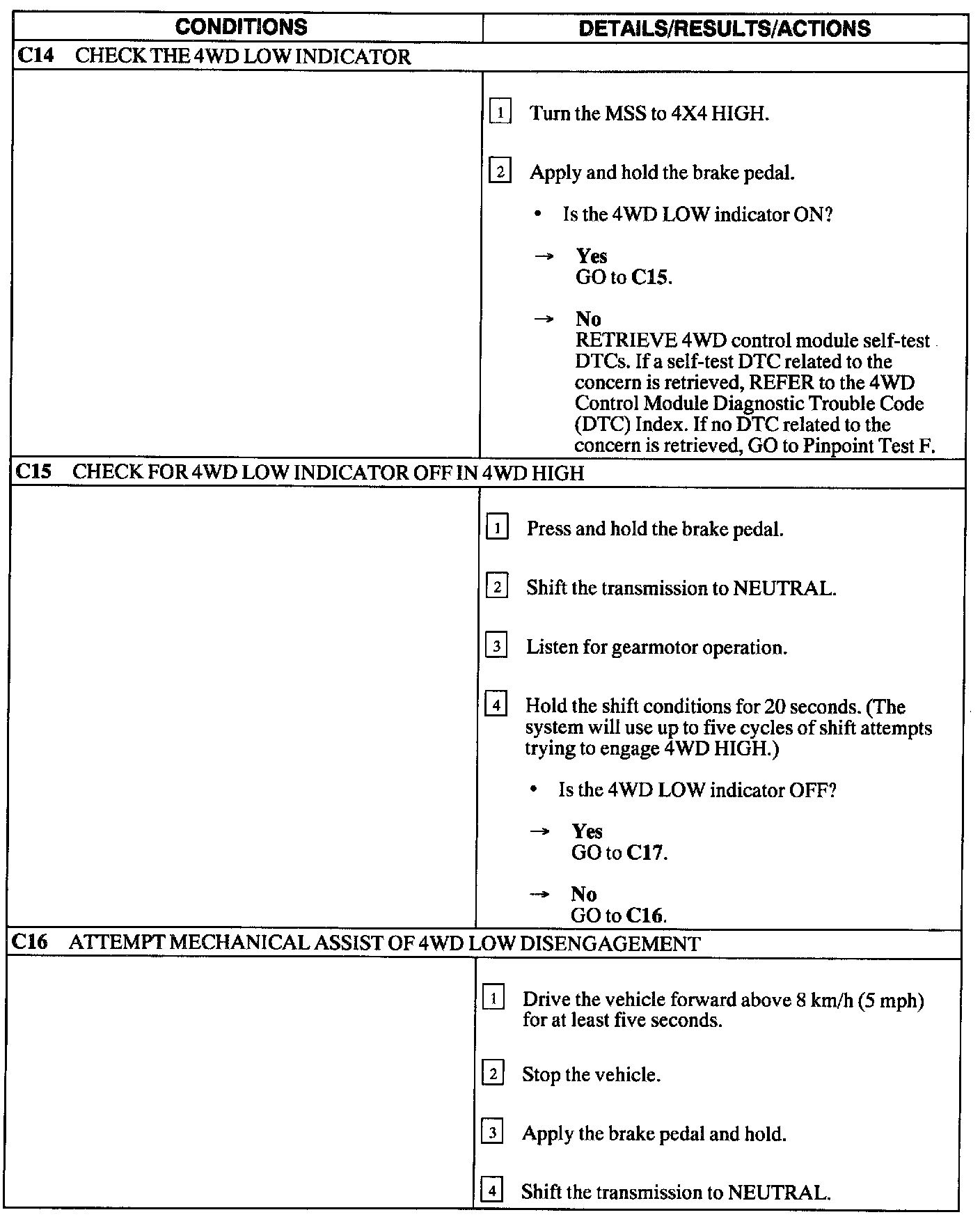

Test C14-C16

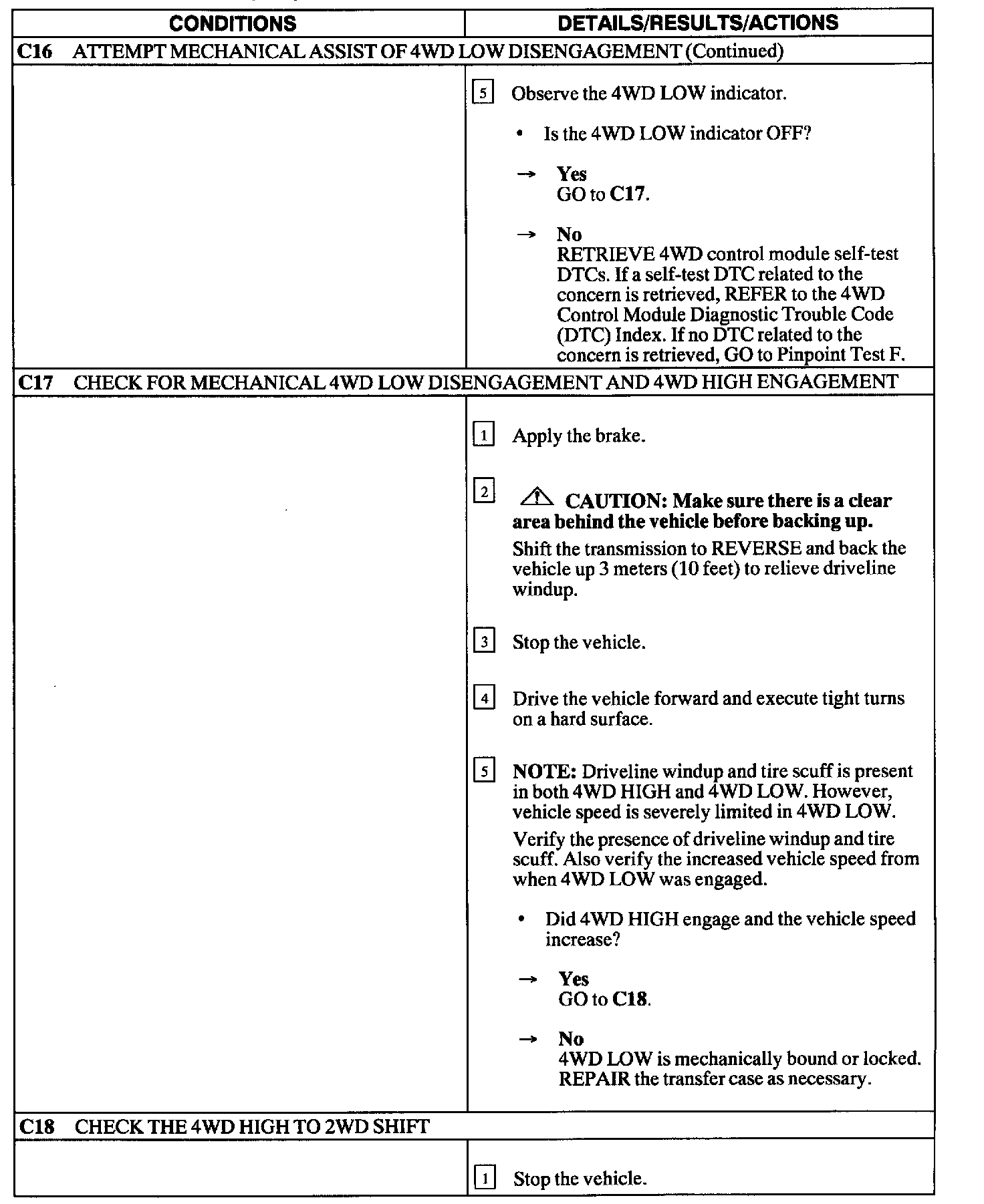

Test C16-C18

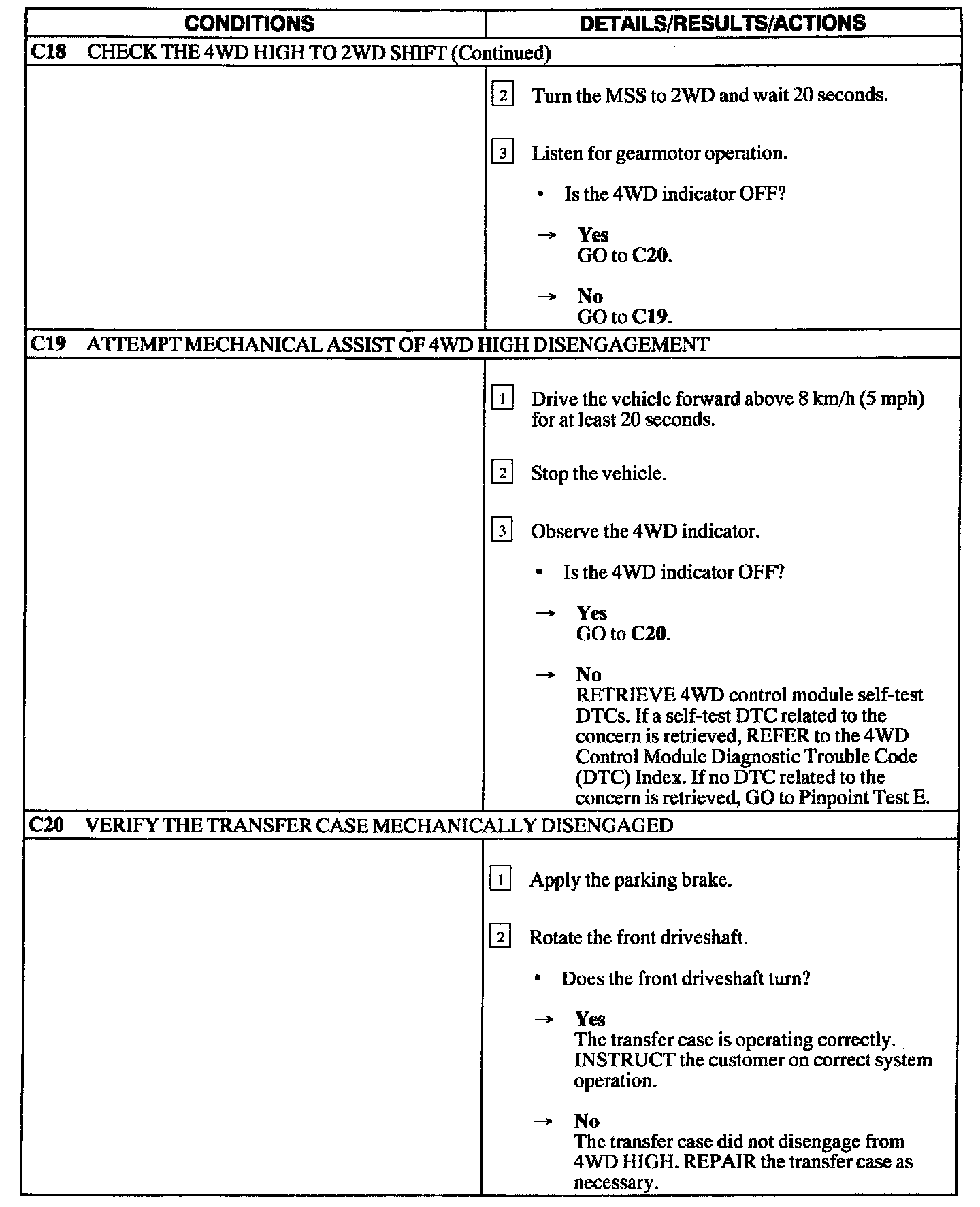

Test C18-C20
