Variable Induction Control Actuator: Service and Repair

Intake Manifold Runner Control (IMRC) Actuator-2.3L


Removal

1. Disconnect the battery ground cable.

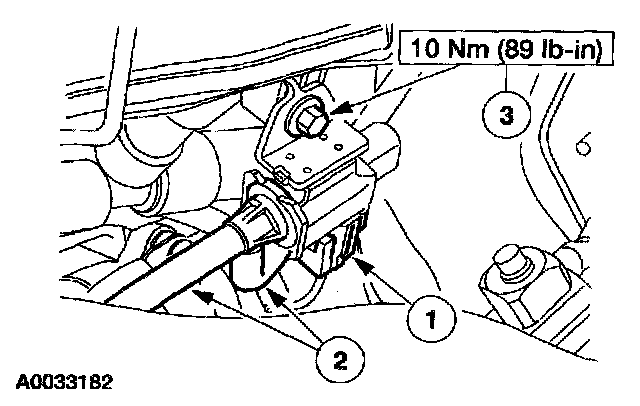

2. Remove the intake manifold runner control actuator.
1 Disconnect the electrical connector.
2 Disconnect the vacuum lines.
3 Remove the bolt and the IMRC actuator.






Installation

1. To install, reverse the removal procedure.
