Water Pump: Service and Repair

Water Pump

Removal and Installation
1. Drain the cooling system.
2. Remove the drive belt.

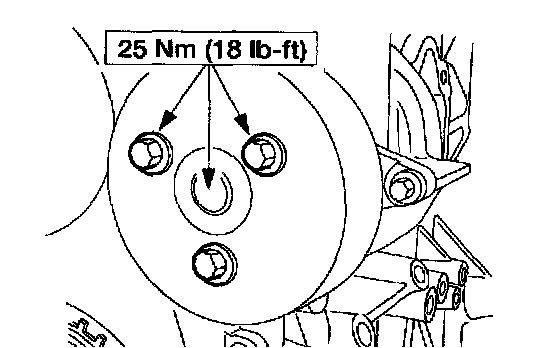

3. Remove the bolts and the water pump pulley.

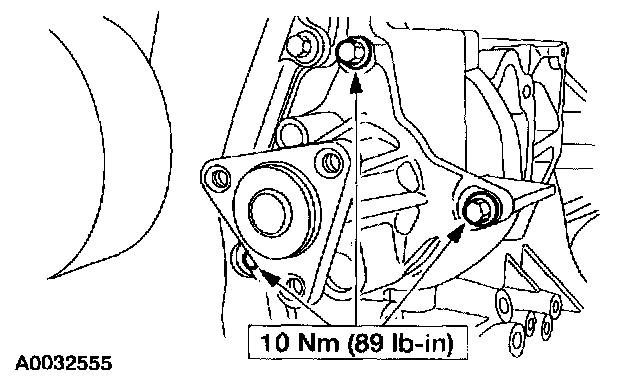

4. Remove the bolts and the water pump.

5. NOTE: Lubricate the water pump O-ring, with MERPOL.





To install, reverse the removal procedure.
