Home >> Ford Truck >> 2002 >> Ranger 4WD L4-2.3L VIN D >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> A

A

PINPOINT TEST A: NO COMMUNICATION WITH THE MODULE - ANTI-LOCK BRAKE CONTROL MODULE

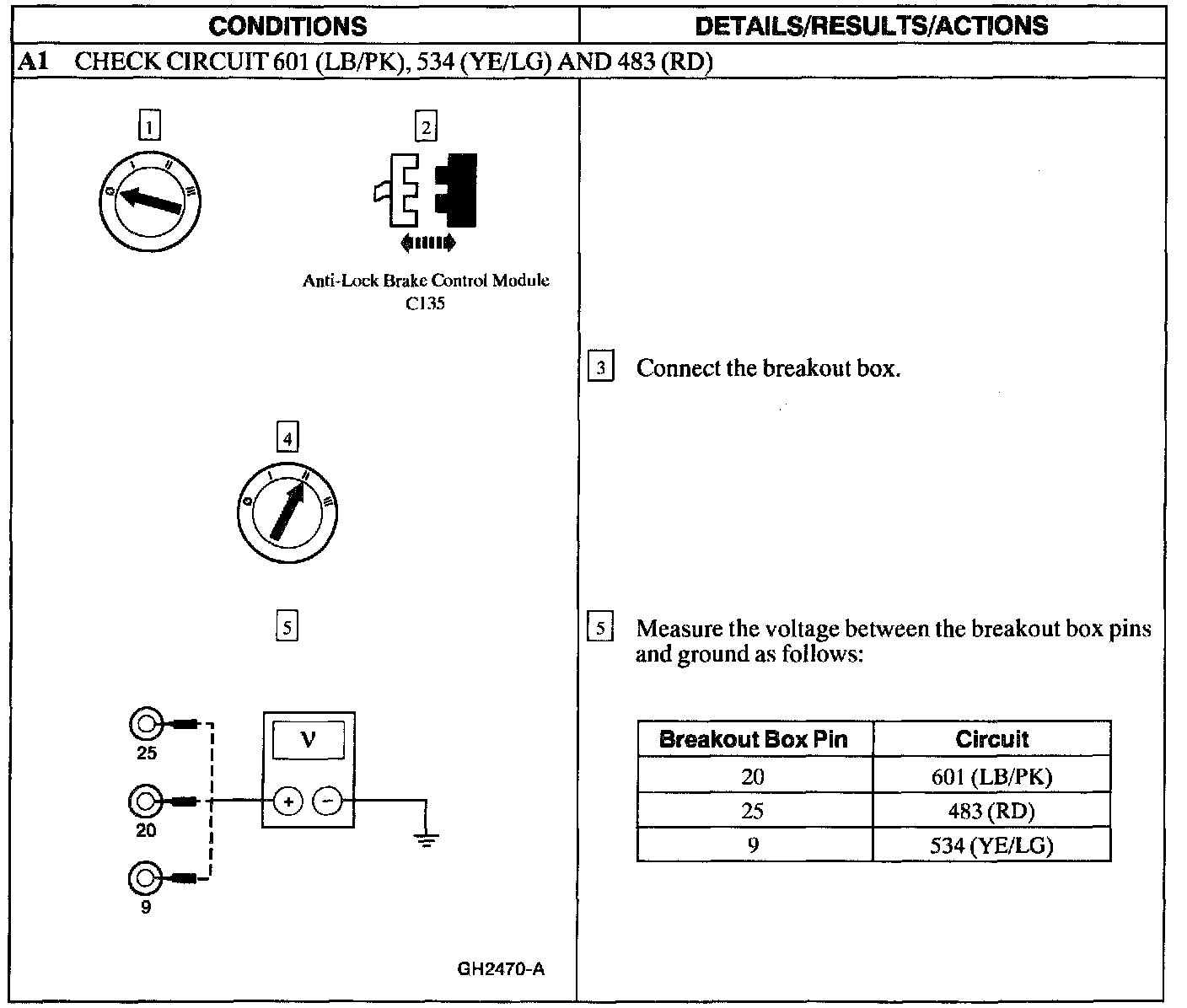

Test A1:






Test A1-A2:
