Fluid Line/Hose: Service and Repair

Tubes

Removal
1. Raise the vehicle on a hoist.

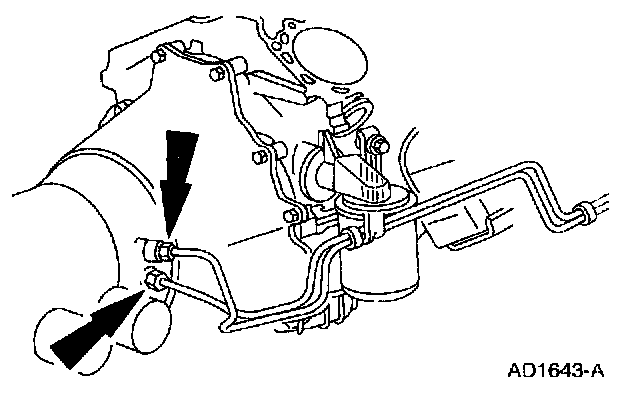

2. Disconnect the fluid cooler inlet tube and the fluid cooler tube from the radiator.





3. Disconnect the fluid cooler inlet tube and the fluid cooler tube and the fluid cooler tube from the transmission.





4. Remove the transmission fluid cooler line clip, the fluid cooler inlet tube and the fluid cooler tube and C-clips.

Installation

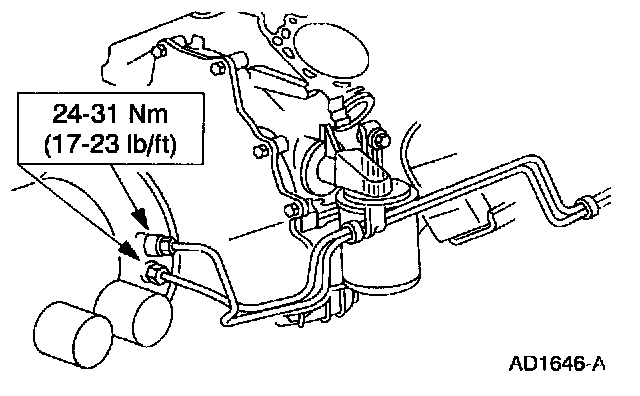

1. Position the fluid cooler inlet tube and fluid cooler tube. Install the transmission fluid cooler line clip and C-clips.





2. Connect the fluid cooler inlet tube and fluid cooler tube to the transmission.

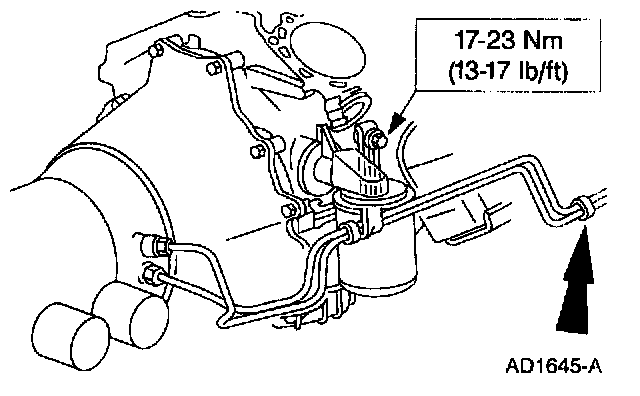

3. Connect the fluid cooler inlet tube and fluid cooler tube to the radiator.
