Test B: The Shift Control Is Out of Correct Gear Relationship
Test B: The Shift Control Is Out of Correct Gear Relationship
PINPOINT TEST B: SHIFT CONTROL IS OUT OF PROPER GEAR RELATIONSHIP

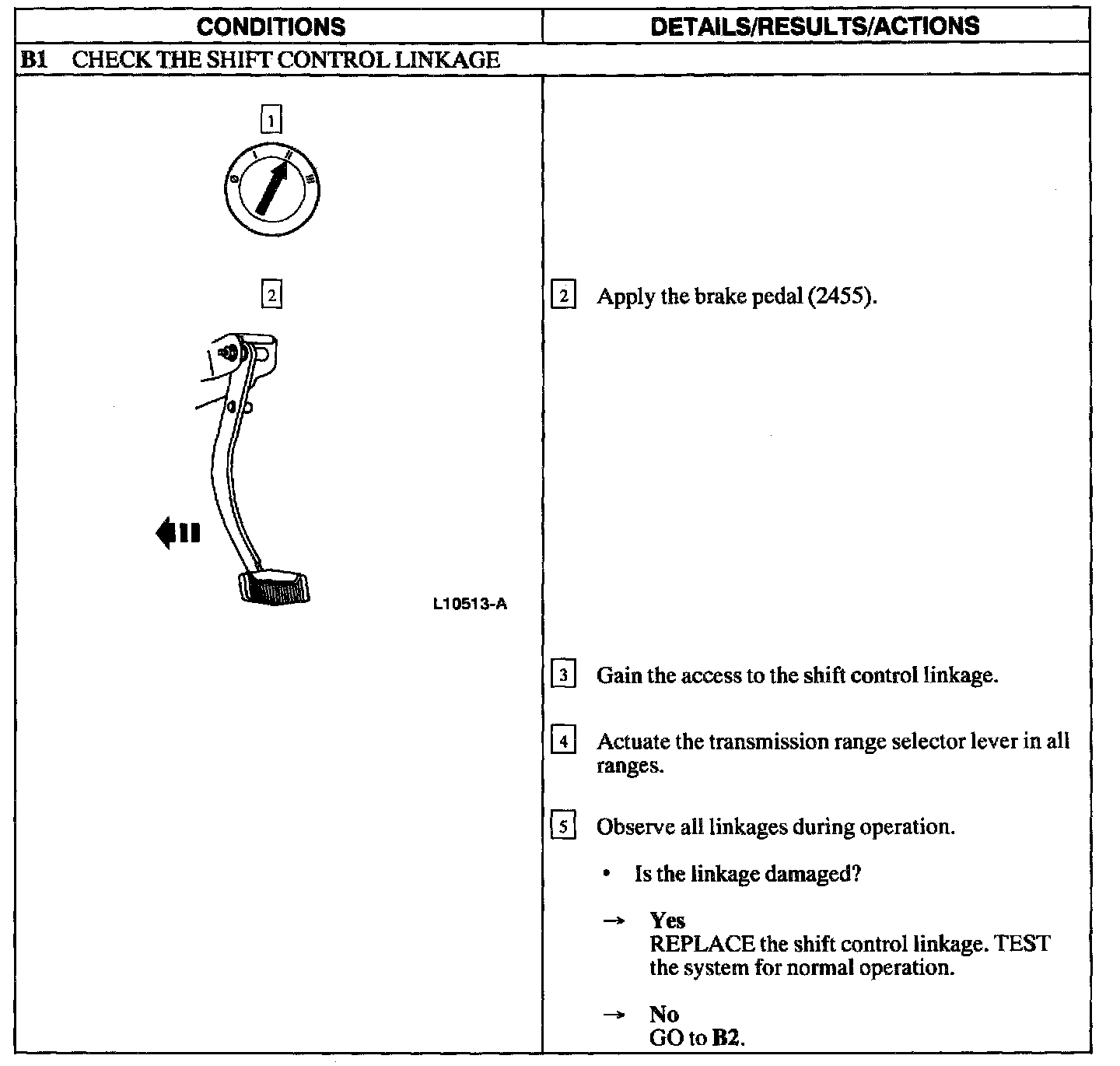

Test B1

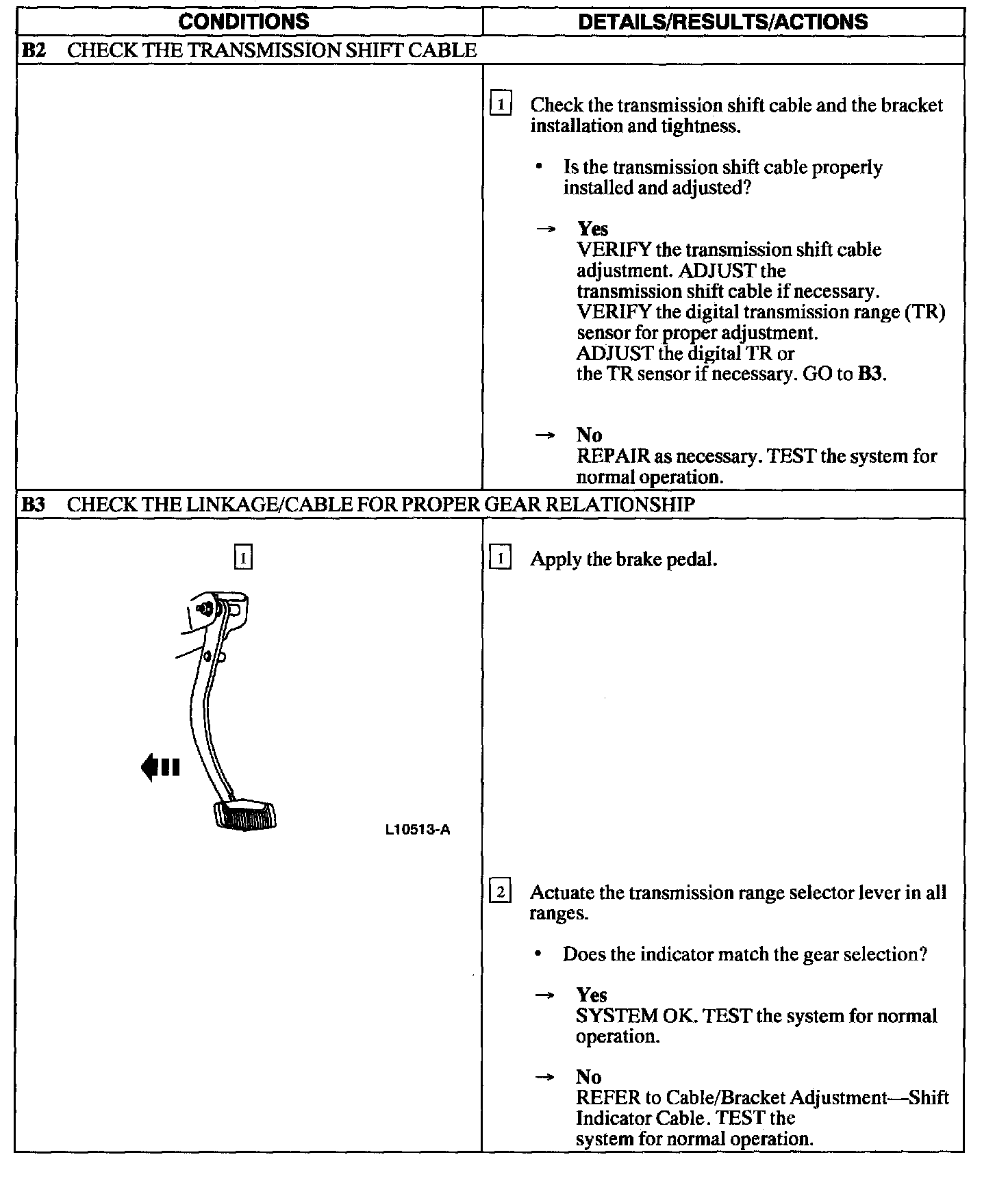

Test B2-B3
