Fuel Delivery and Air Induction: Locations

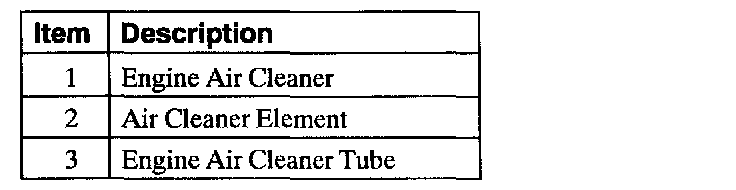

Air Intake Component Locations, Part 1:

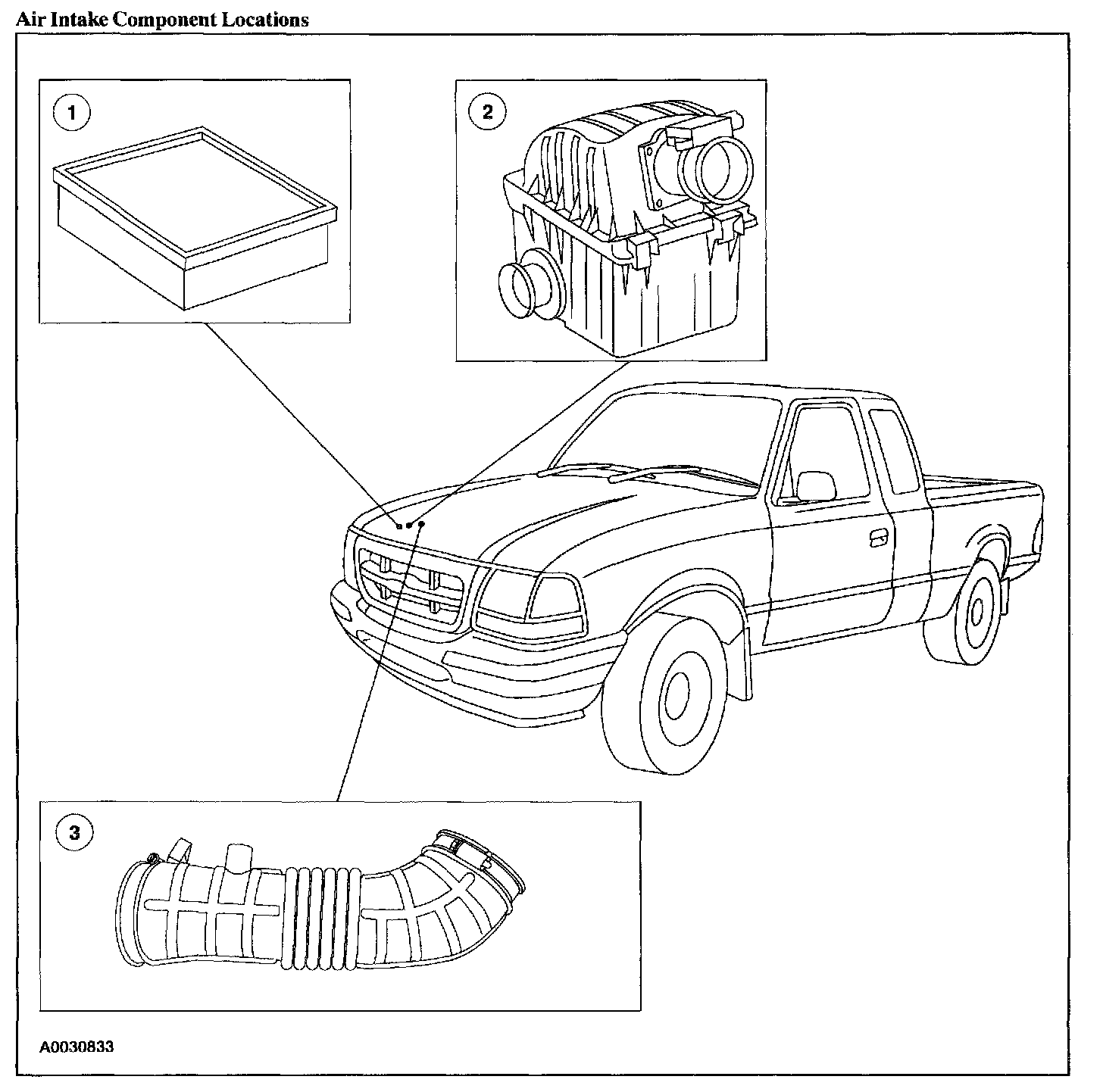

Air Intake Component Locations, Part 2:

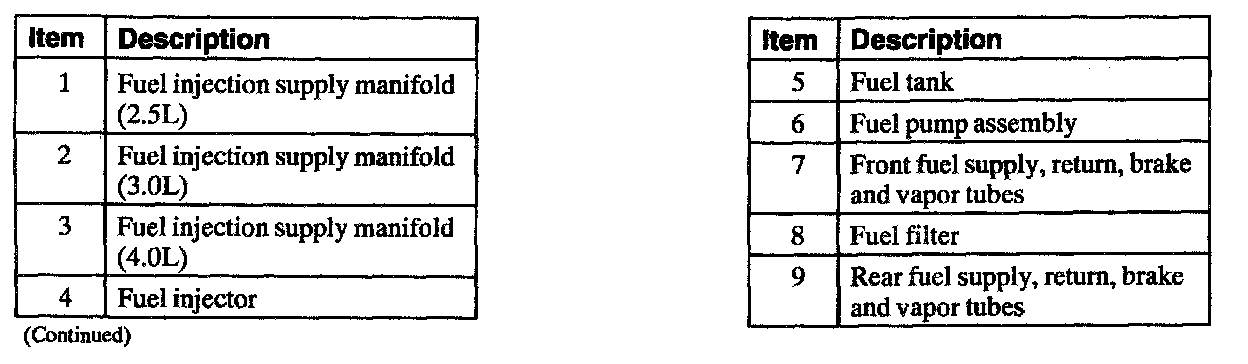

Fuel System, Part 1:

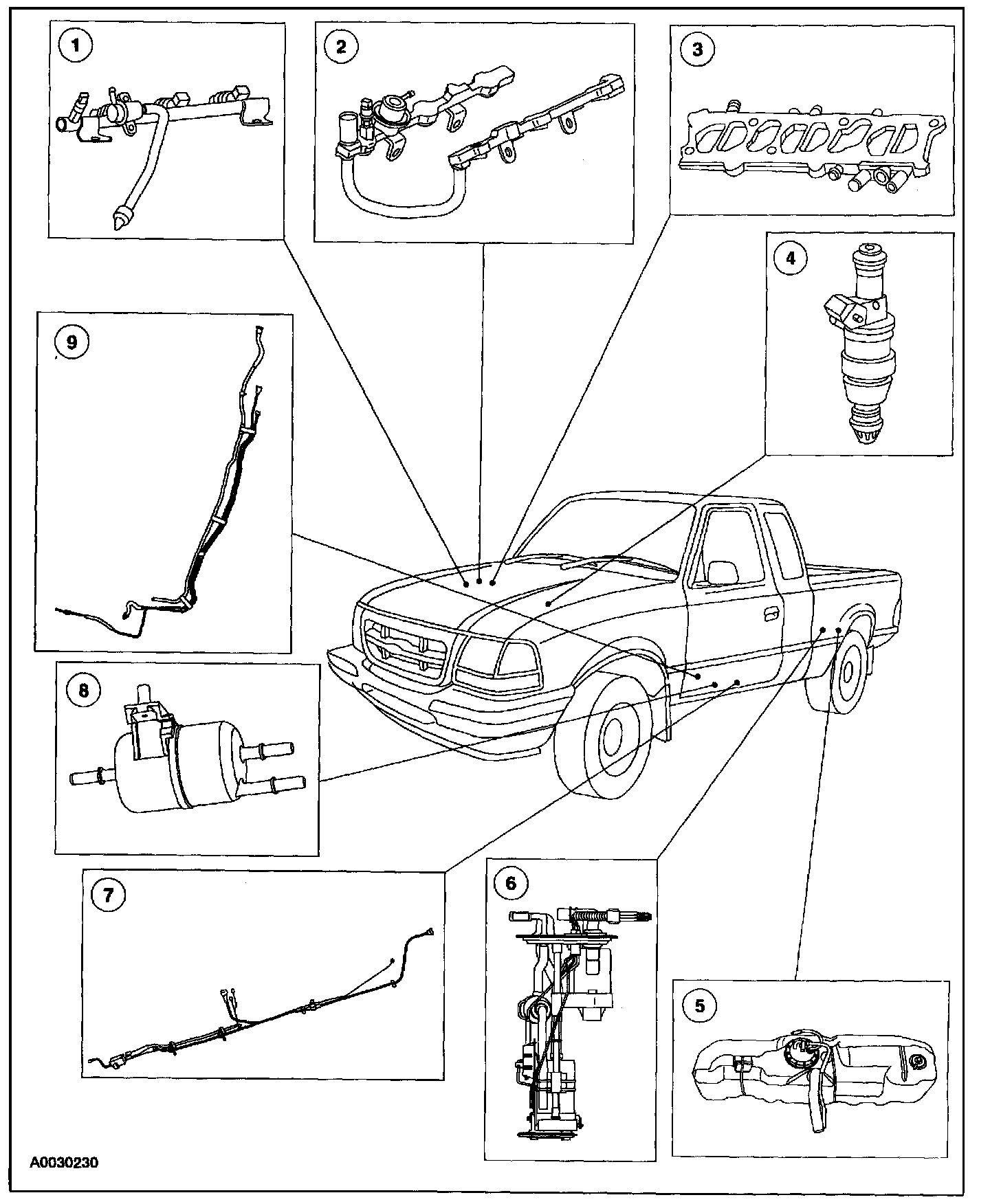

Fuel System, Part 2:
