Intake Air Duct: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

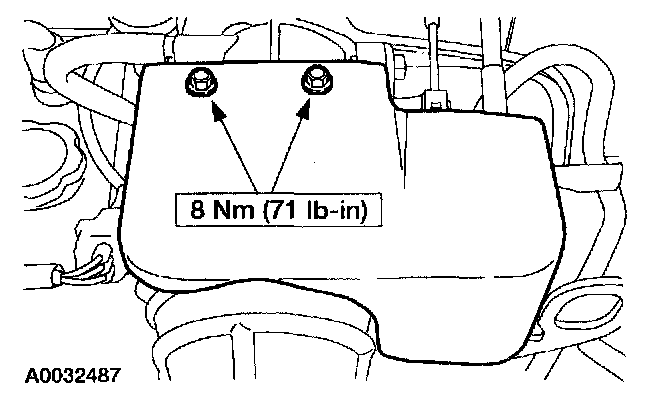

2. Remove the accelerator control splash shield.

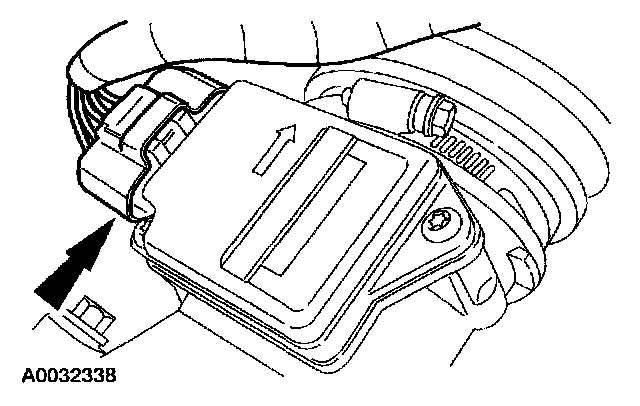

3. Disconnect the Mass Air Flow (MAF) electrical connector.

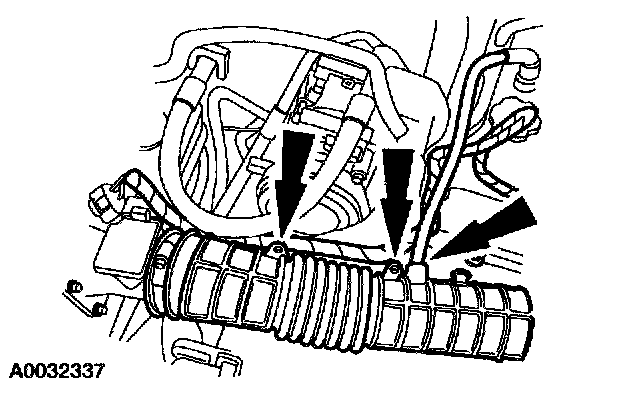

4. Disconnect the electrical harness push pins and the crankcase ventilation tube.

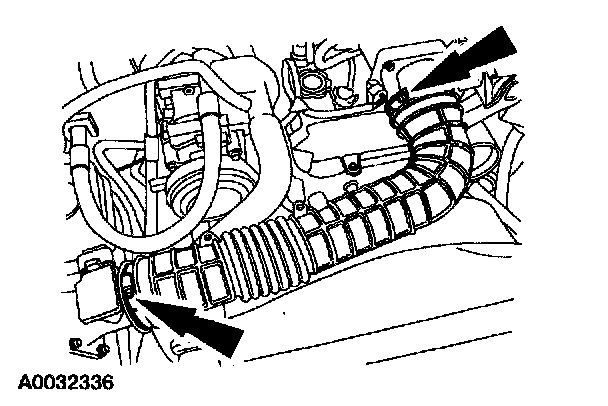

5. Loosen the hose clamps and remove the air cleaner outlet pipe.

INSTALLATION
1. To install, reverse the removal procedure.
