Home >> Ford Truck >> 2002 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Tank >> Locations

Fuel Tank: Locations

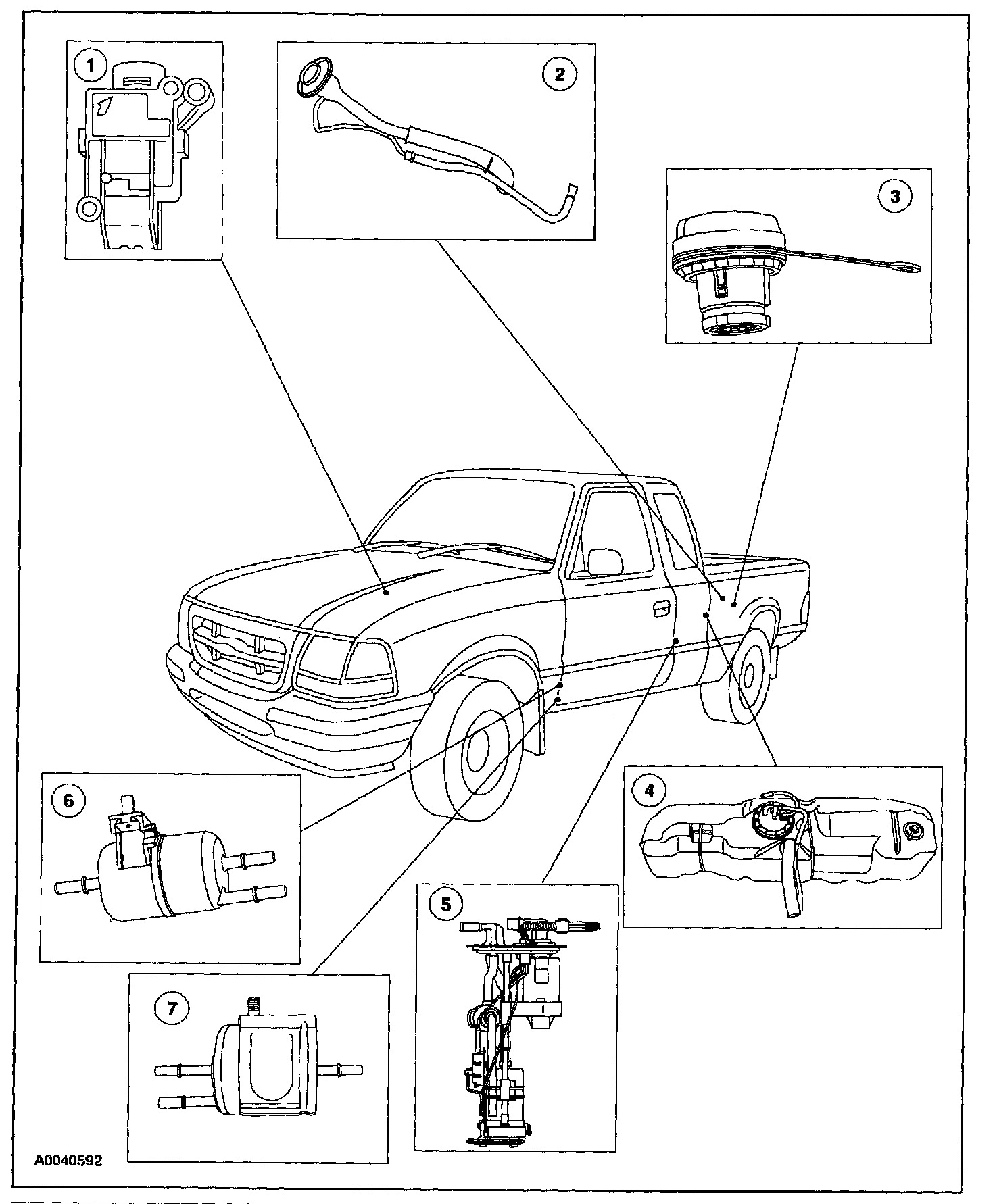

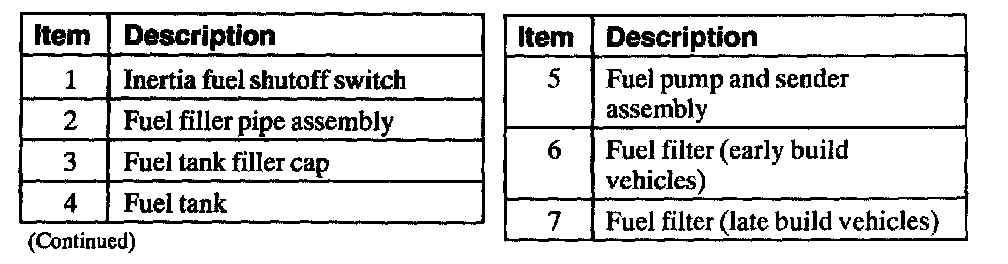

Fuel Tank And Lines, Part 1:



Fuel Tank And Lines, Part 2:
