Fuel Rail: Service and Repair

Disconnect Tool, Fuel Pipe:

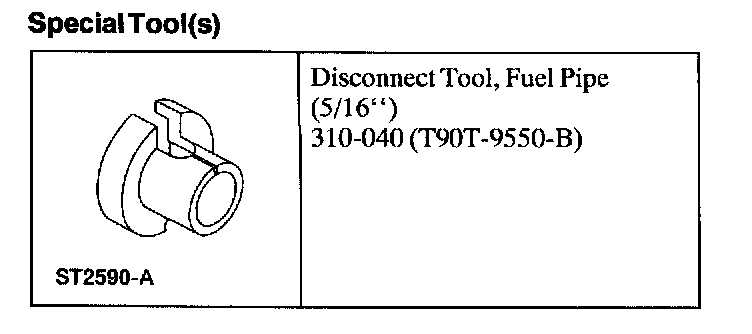

SPECIAL TOOL(S)

REMOVAL
1. Disconnect the battery ground cable.
2. Relieve the fuel pressure.
3. Remove the upper intake manifold.

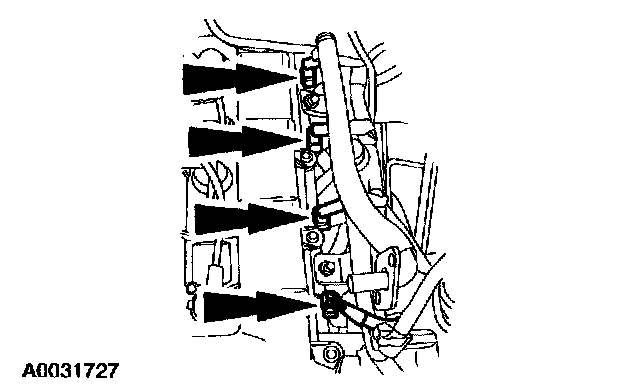

4. Disconnect the fuel injector connectors.







5. Disconnect the fuel injector harness from the fuel injector supply manifold.







6. Disconnect the fuel line spring lock.

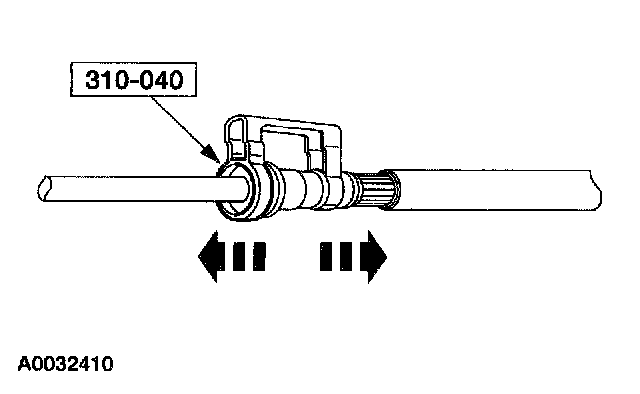

7. Using the special tool, disconnect the fuel line.







8. Remove the fuel injection supply manifold.

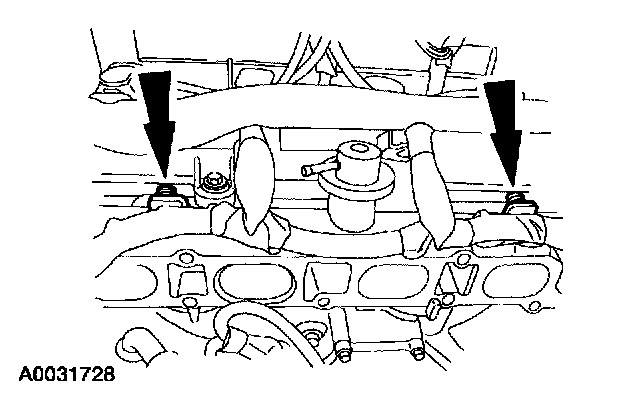

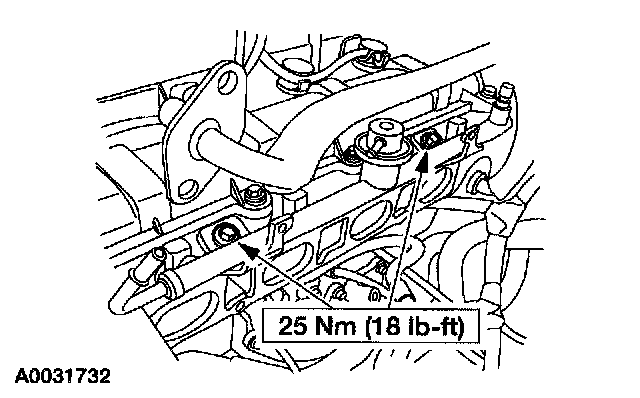

^ Remove the bolts and the spacer insulators.
^ Remove the manifold.
9. For injector removal, refer to Fuel Injectors.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Lubricate the O-rings with clean engine oil.
