Pedal

REMOVAL

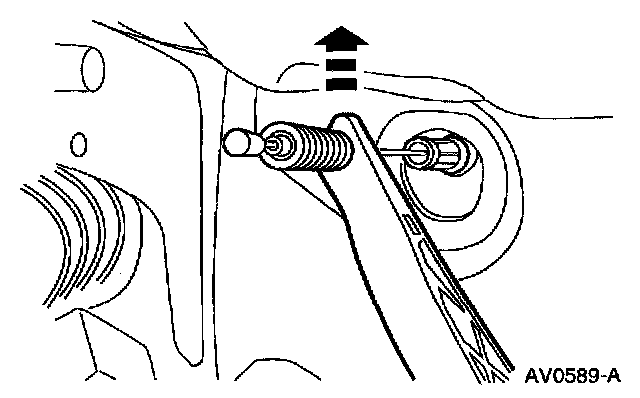

1. Disconnect the accelerator cable from the accelerator pedal and shaft.







2. Remove the bolt and remove the accelerator pedal and shaft.

INSTALLATION
1. To install, reverse the removal procedure.
