Hose Exhaust Gas Recirculation (EGR) Valve Heater Hose

Hose Exhaust Gas Recirculation (EGR) Valve Heater Hose

Removal and Installation
1. Drain the cooling system.

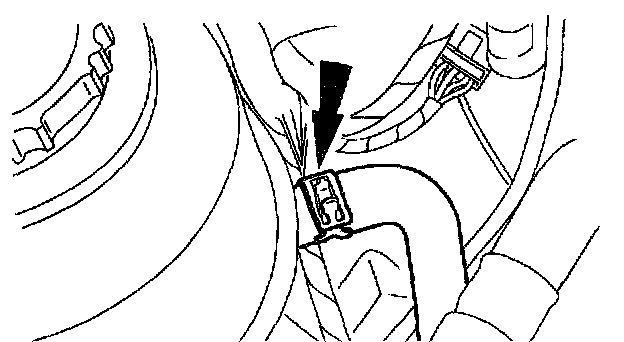

2. Disconnect the hose from the degas bottle.

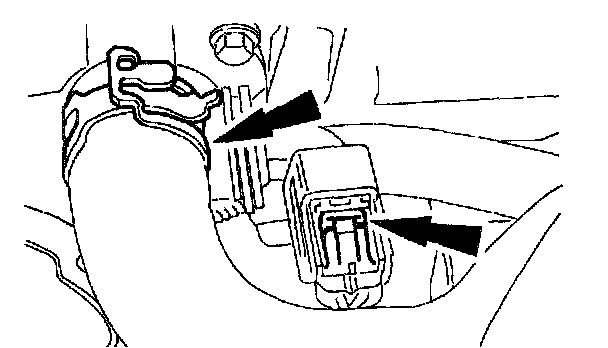

3. Disconnect the electrical connector and the hose from the thermostat housing.
4. Remove the transmission.

5. CAUTION: Remove the electrical connector locators from the splash shield before removing the shield.

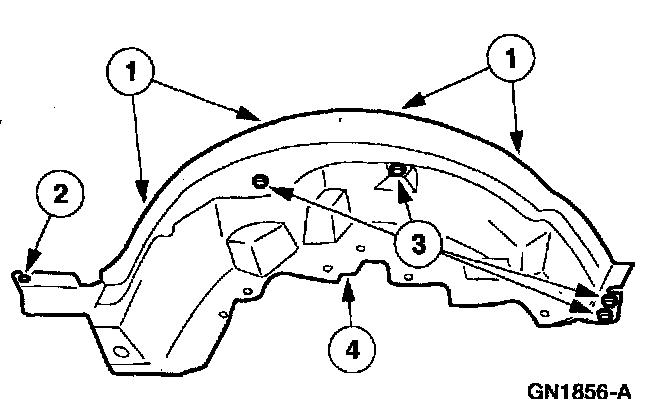

Remove the RH inner fender splash shield.
1. Remove the screws.
2. Remove the pushpin.
3. Remove the bolts.
4. Remove the splash shield.





6. Remove the hose mounting nuts.





7. Disconnect the hose from the Exhaust Gas Recirculation (EGR) valve and remove the hose from the vehicle.
8. To install, reverse the removal procedure.
