Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Lower the spare tire out of the way.
2. Disconnect the battery ground cable.

WARNING: THE EVAPORATIVE EMISSION (EVAP) SYSTEM CONTAINS FUEL VAPOR AND CONDENSED FUEL VAPOR. ALTHOUGH NOT PRESENT IN LARGE QUANTITIES, IT STILL PRESENTS THE DANGER OF EXPLOSION OR FIRE. DISCONNECT THE BATTERY GROUND CABLE FROM THE BATTERY TO MINIMIZE THE POSSIBILITY OF AN ELECTRICAL SPARK OCCURRING, POSSIBLY CAUSING A FIRE OR EXPLOSION IF FUEL VAPOR OR LIQUID FUEL IS PRESENT IN THE AREA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

3. Raise the vehicle on an appropriate hoist.

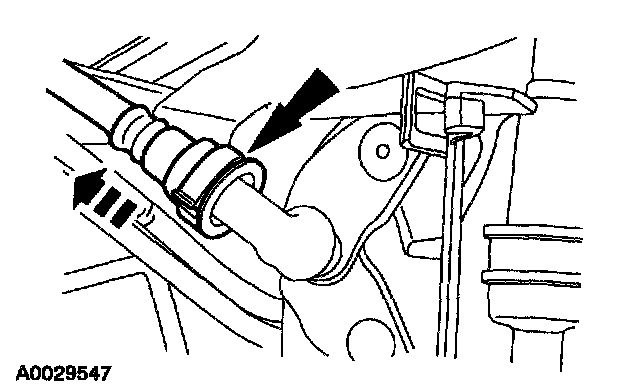

4. Disconnect the EVAP canister purge outlet tube.







5. Disconnect the connector.

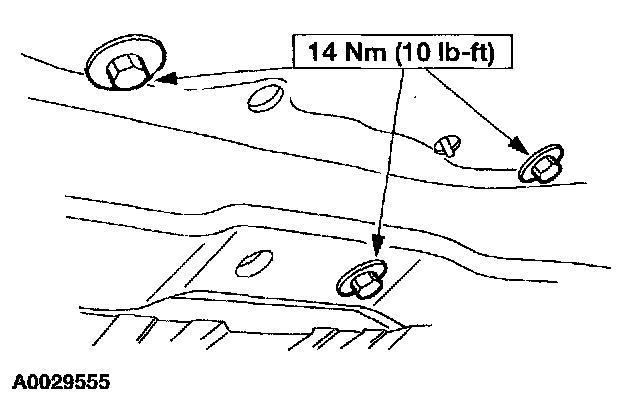

6. Remove the nuts and the bolt.

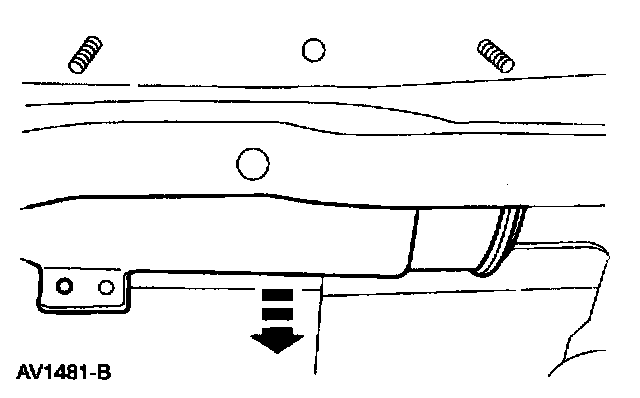

7. Remove the EVAP canister and bracket assembly.







8. Disconnect the hose.

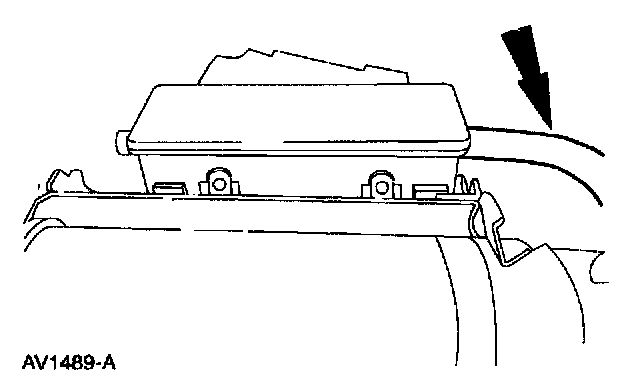

9. Remove the canister vent solenoid.

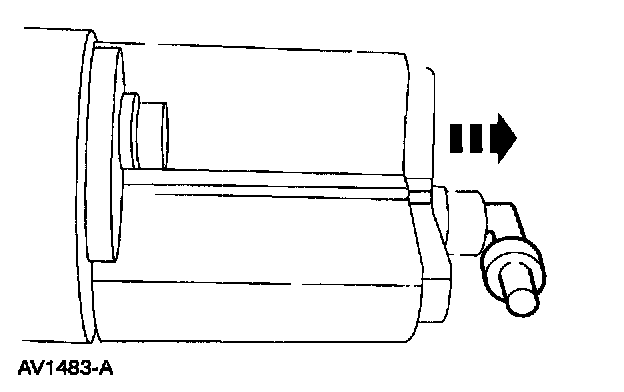

10. Remove the EVAP canister purge sleeve.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carry out the leak test. Evaporative Emission System Leak Test
^ Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle

NOTE: Lubricate all O-ring seals with O-ring seal lubricant.
