Ford Truck
>>
2002
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Electrical Accessory Panel
>>
Locations
>>

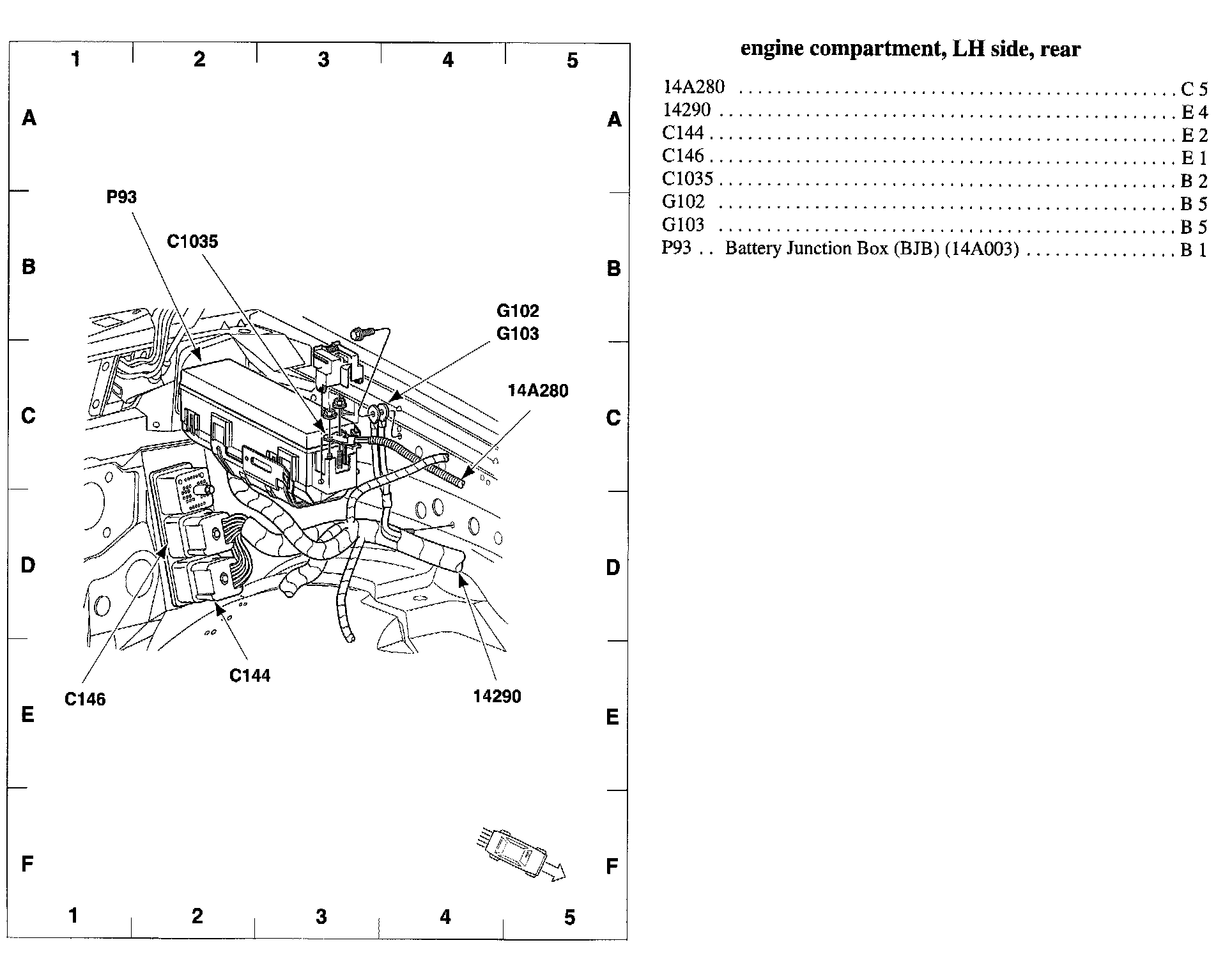

Battery Junction Box
Battery Junction Box
View 151-44:
View 151-4:
