Center Mounted Brake Lamp: Service and Repair

REMOVAL

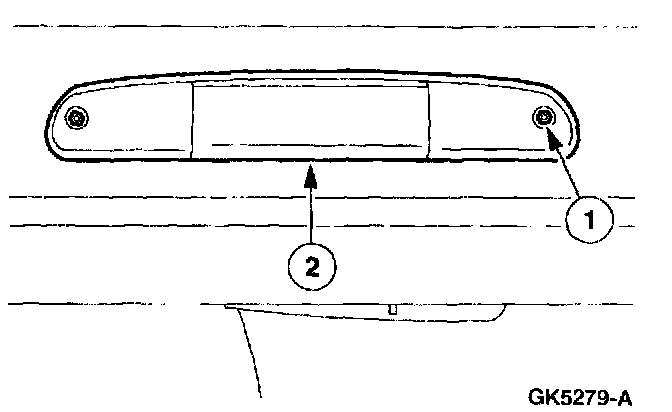

1. Remove the hi-mount lamp.
1 Remove the screws.
2 Pull out the hi-mount lamp.

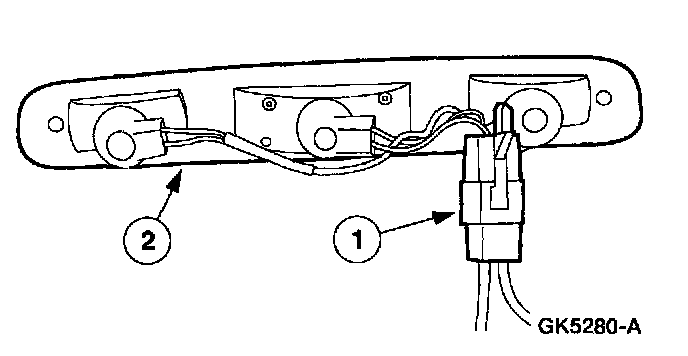

2. Remove the hi-mount lamp.
1 Disconnect the connector.
2 Remove the hi-mount lamp.

INSTALLATION

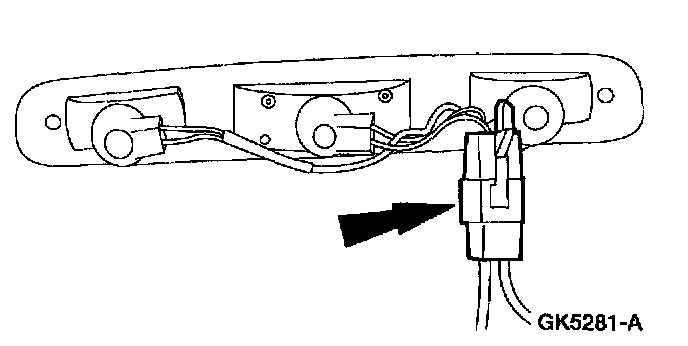

1. Connect the hi-mount lamp connector.

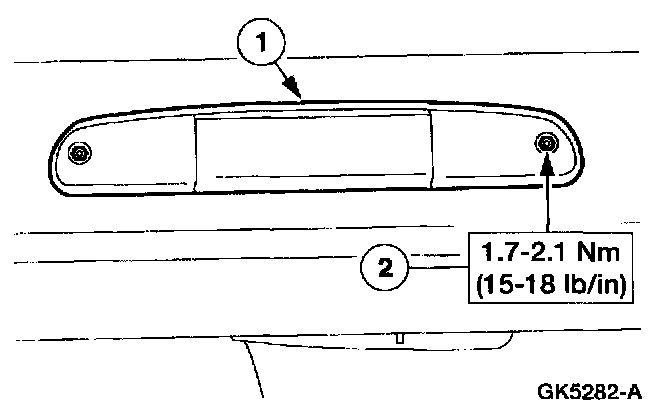

2. Install hi-mount lamp.
1 Position the hi-mount lamp.
2 Install the screws.
