RH Instrument Panel Register Duct

REMOVAL
1. Remove the RH instrument panel register.
2. Remove the passenger side air bag module.

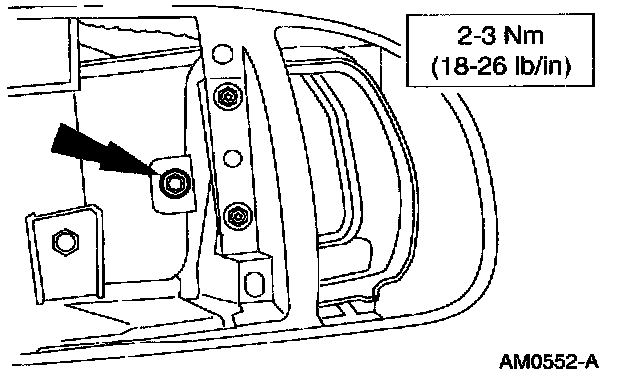

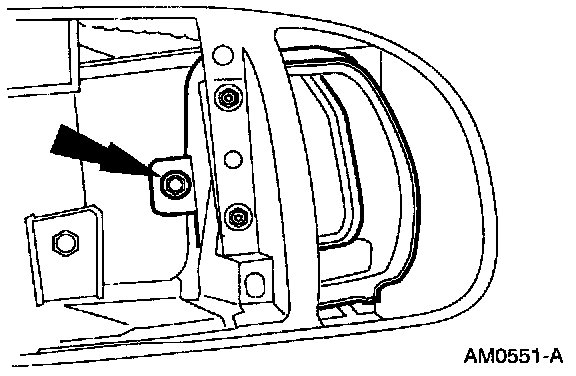

3. Remove the two screws and remove the RH instrument panel register duct.

INSTALLATION







1. To install, reverse the removal procedure.
