Oil Pressure Sender: Service and Repair

Oil Pressure Sender

Removal and Installation
1. Disconnect the battery ground cable.
2. Raise the vehicle on a hoist.





3. Disconnect the wire connector at the sender.

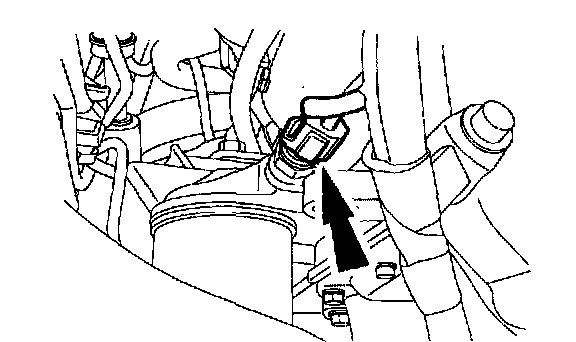

4. Remove the oil pressure sender.

5. NOTE: Apply pipe sealant with Teflon(R) to sender threads.

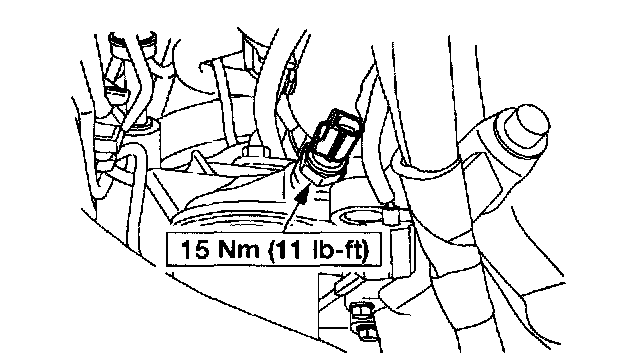

To install, reverse the removal procedure.
