Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

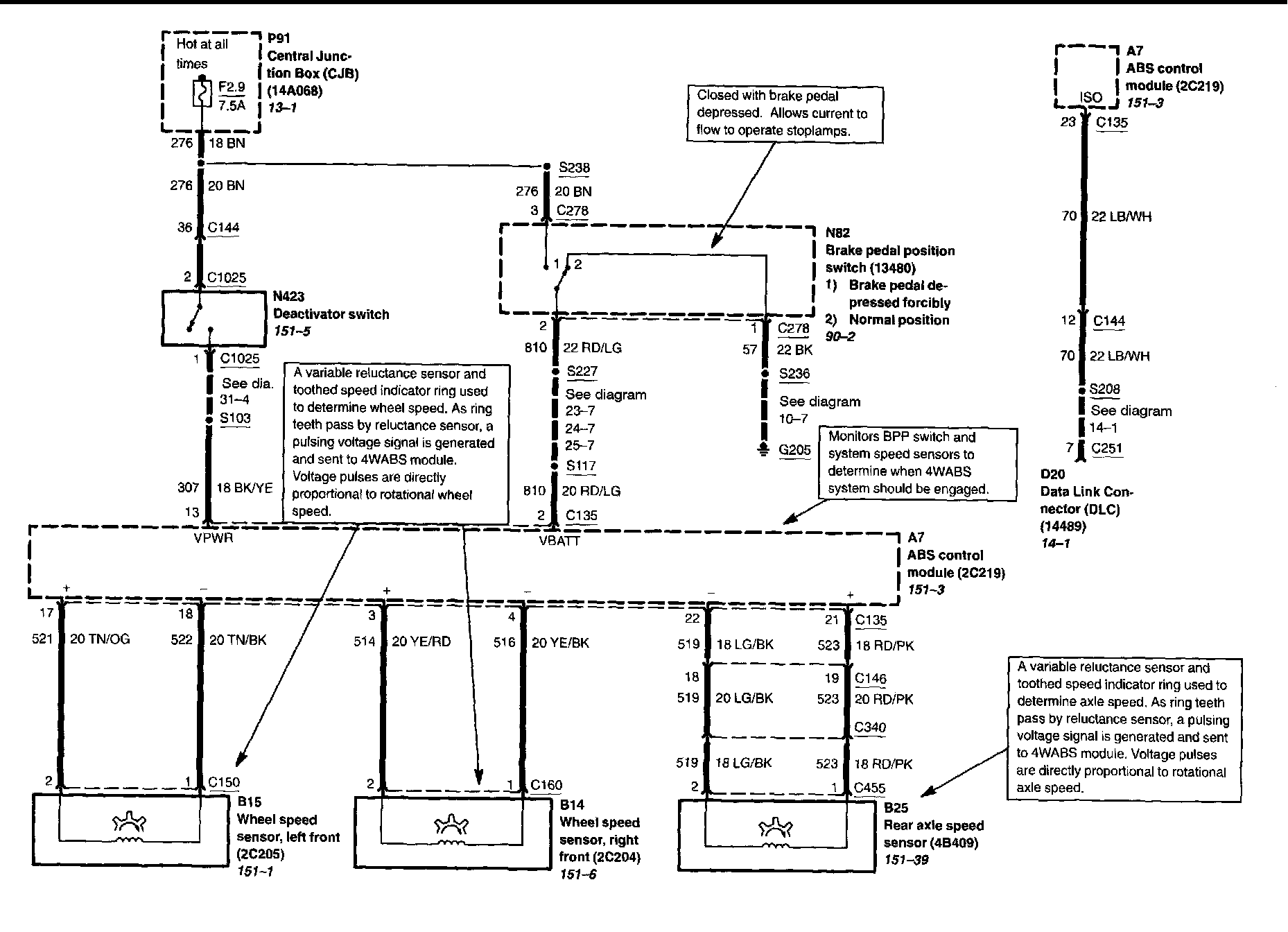

Diagram 42-1:

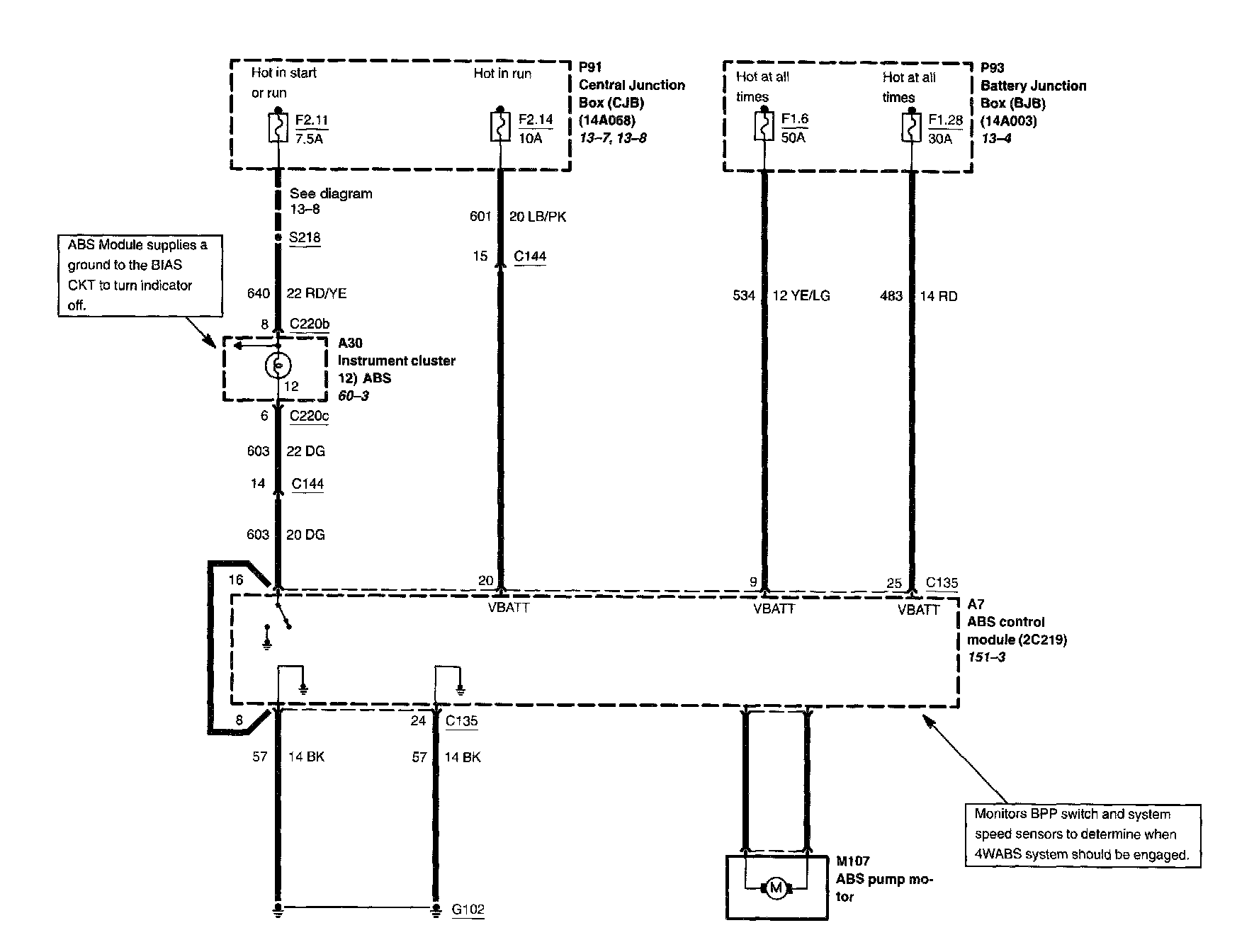

Diagram 42-2:
