Ford Truck
>>
2002
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

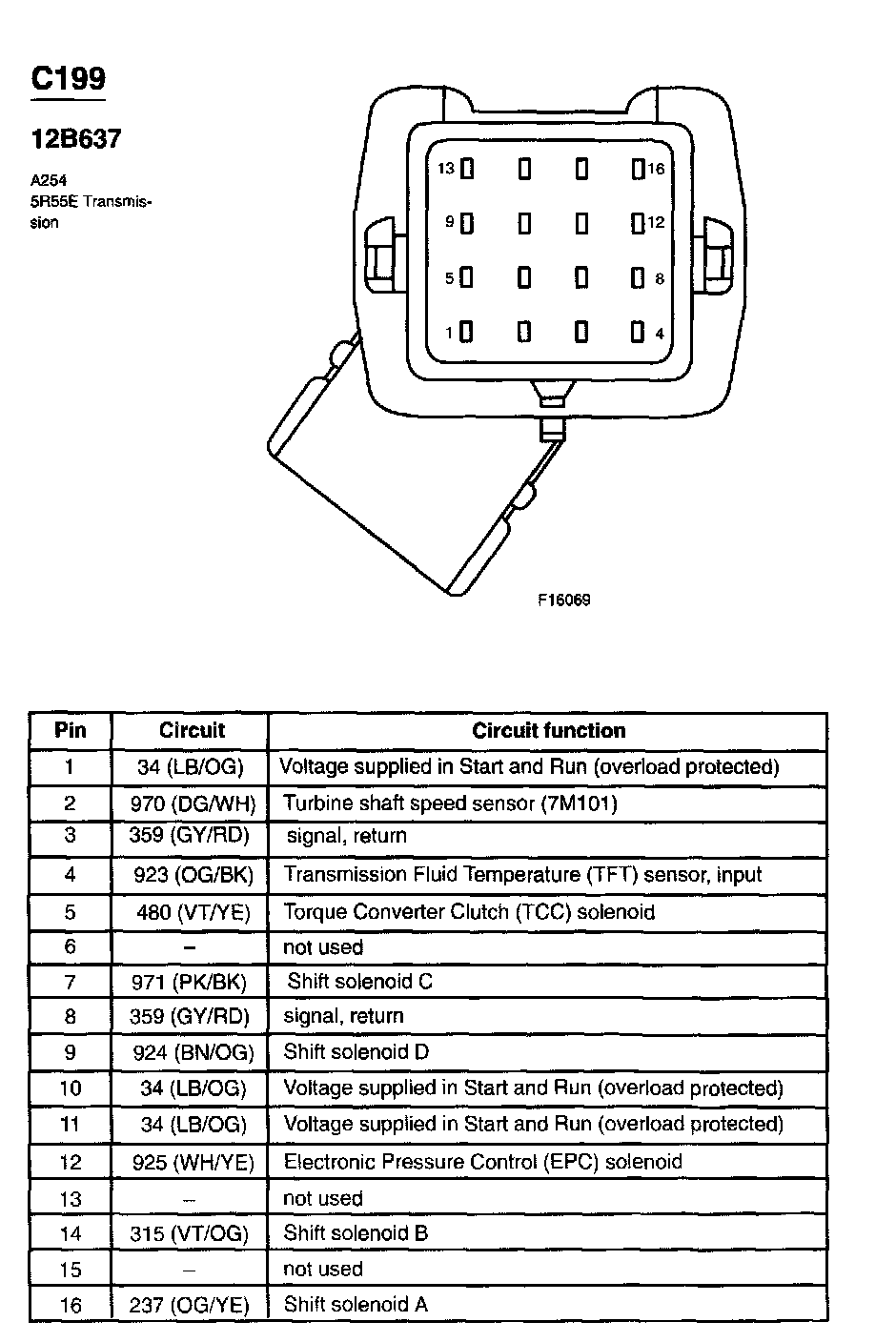

5R55E Automatic Transmission
5R55E Automatic Transmission
