Removal and Installation

Removal and Installation

WARNING: Brake fluid contains polyglycol. ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

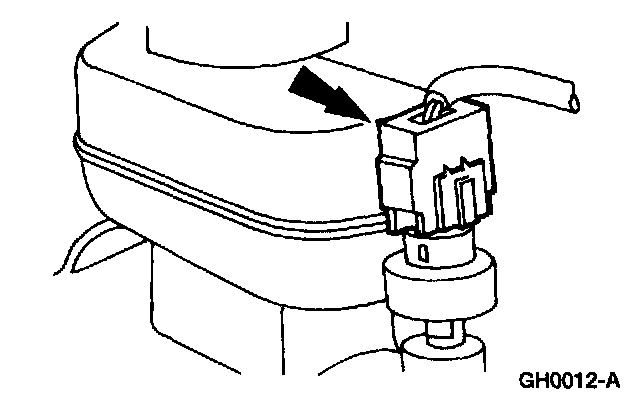

1. Disconnect the brake fluid level warning switch.

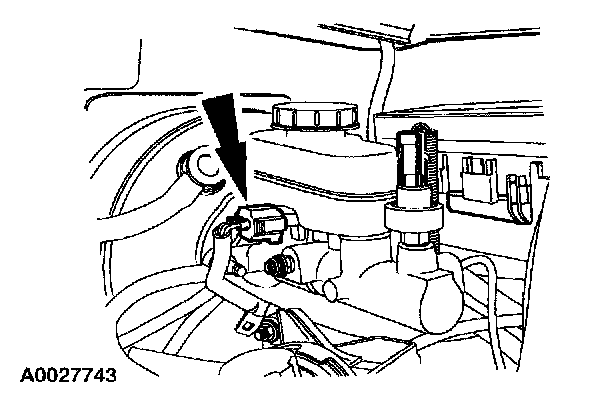

2. On cruise control equipped vehicles, disconnect the brake pressure switch.

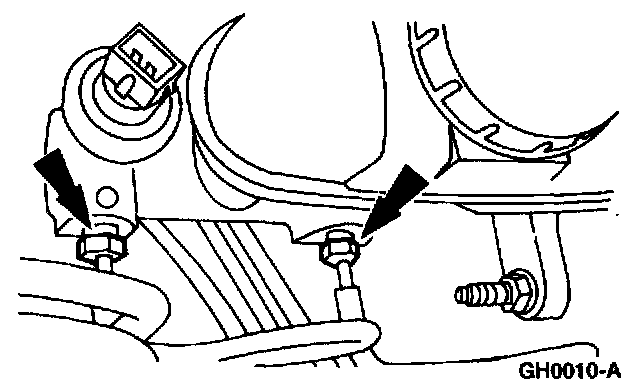

3. Disconnect the two brake lines, and plug the lines and the brake master cylinder ports.

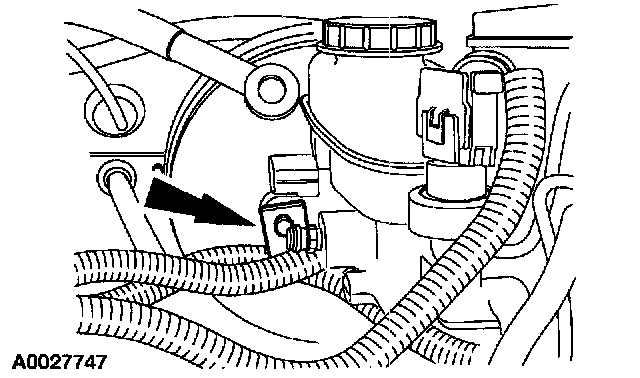

4. Remove wiring retainer clip from the master cylinder.

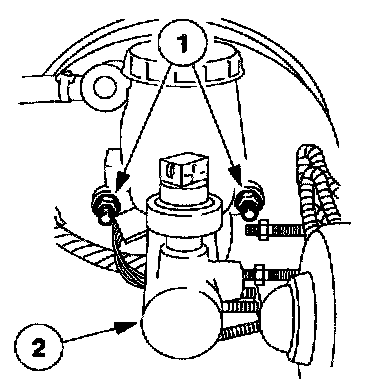

5. Remove the brake master cylinder.
1. Remove the nuts.
2. Remove the brake master cylinder.

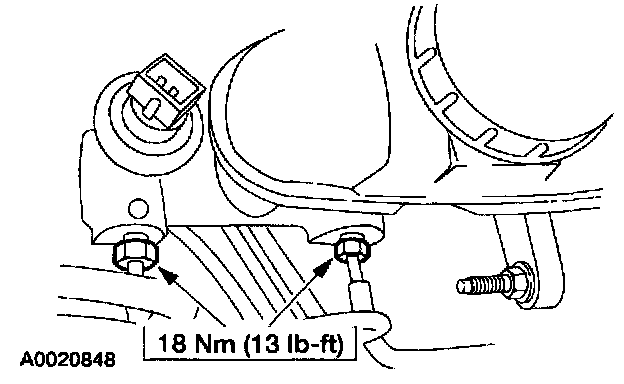

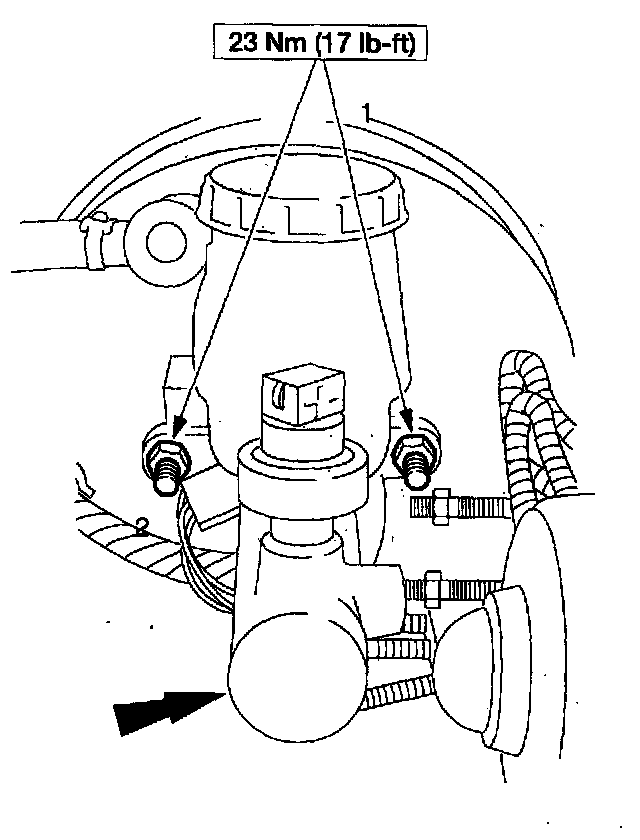

6. To install, reverse the removal procedure.
^ Bleed the master cylinder before installation.
^ Bleed the brake system.
