Backing Plate: Service and Repair

Backing Plate

Removal
1. Remove the brake shoes and linings.

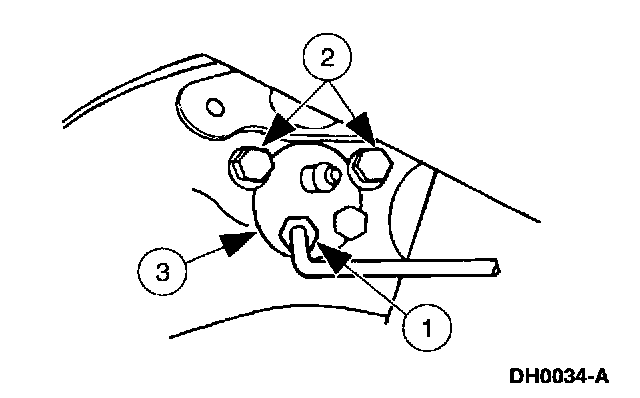

2. Remove the rear wheel cylinder.
1. Disconnect the brake line fitting.
2. Remove the two rear wheel cylinder bolts.
3. Remove the rear wheel cylinder.

Installation

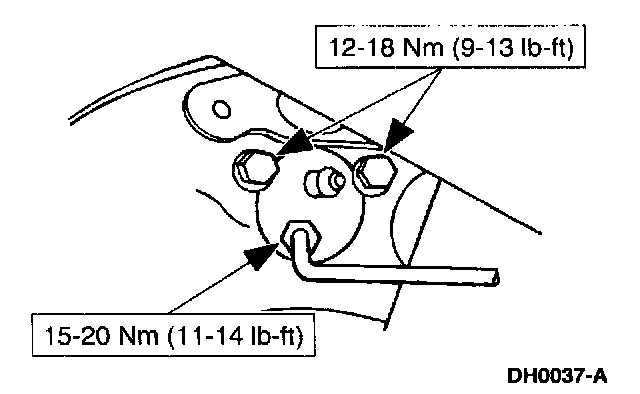

1. Follow the removal procedure in reverse order.
2. Bleed the brake system.
