Home >> Ford Truck >> 2002 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> F

F

PINPOINT TEST F: THE YELLOW ABS WARNING INDICATOR DOES NOT SELF-CHECK

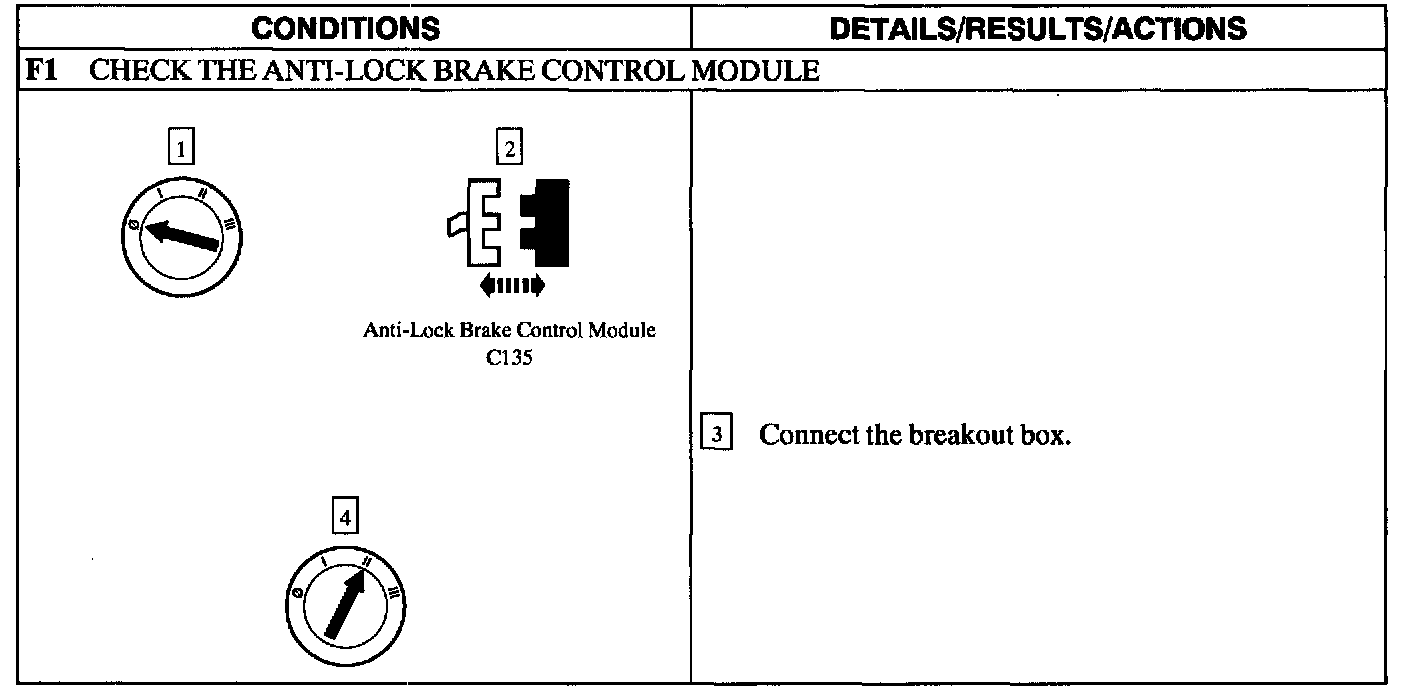

Test F1:

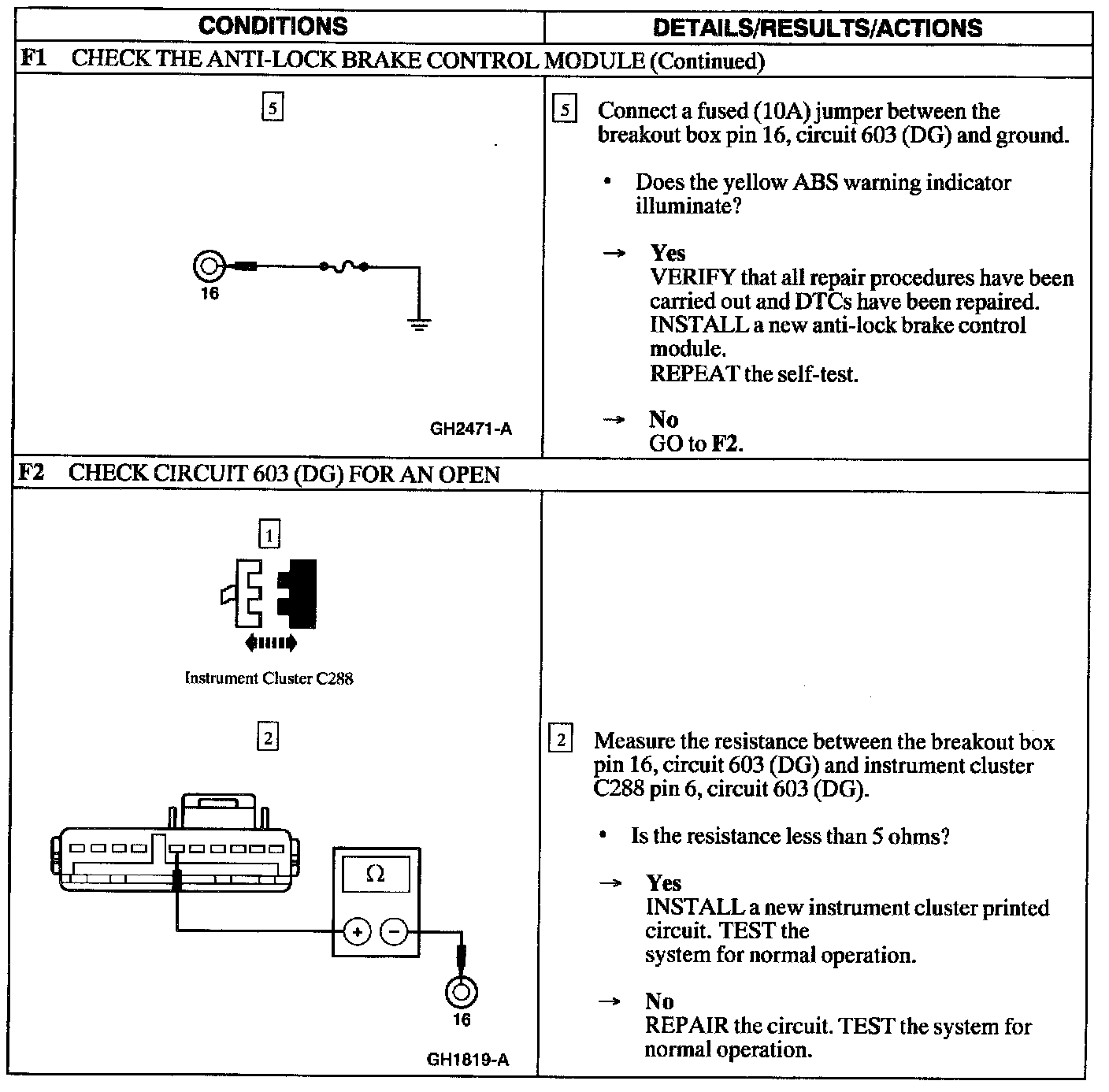

Test F1-F2:
