Center Facing Rear Seat, Back

DISASSEMBLY

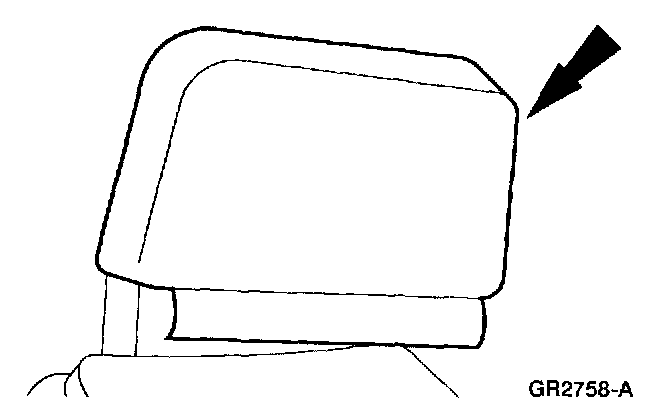

1. Unhook the trim cover retainer.

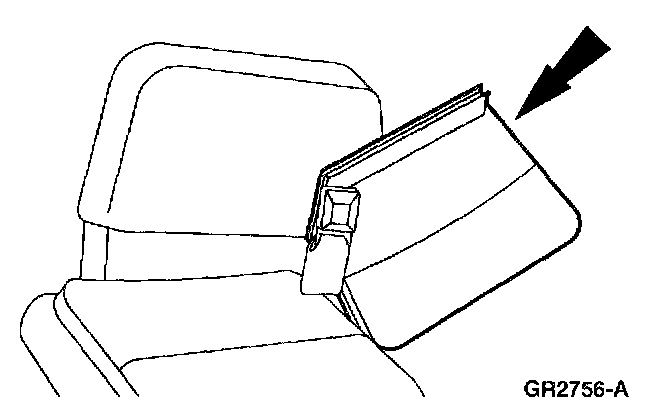

2. Reposition the seat back trim cover.







3. Remove the seat back trim cover and the safety belt buckle.

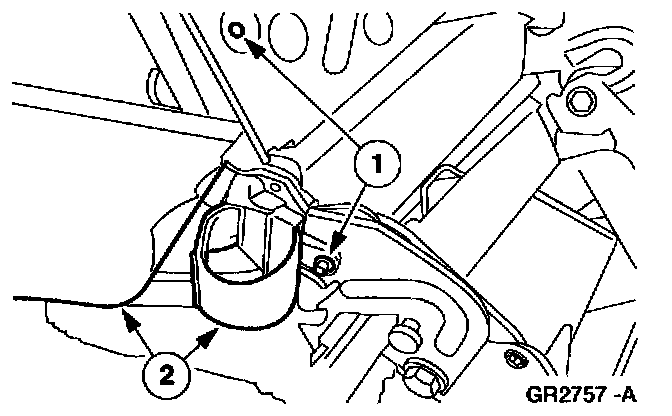

1 Drill out the rivets.
2 Remove the seat back trim cover and the safety belt buckle.







4. Remove the seat back cushion.

CAUTION: Use care when removing the seat back padding because it may be attached to the seat back frame with adhesive.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
2. Check the restraint system for correct operation.
