Home
>>
Ford Truck
>>
2002
>>
F 350 4WD Super Duty V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Relays and Modules - Glow Plug System
>>
Glow Plug Relay
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

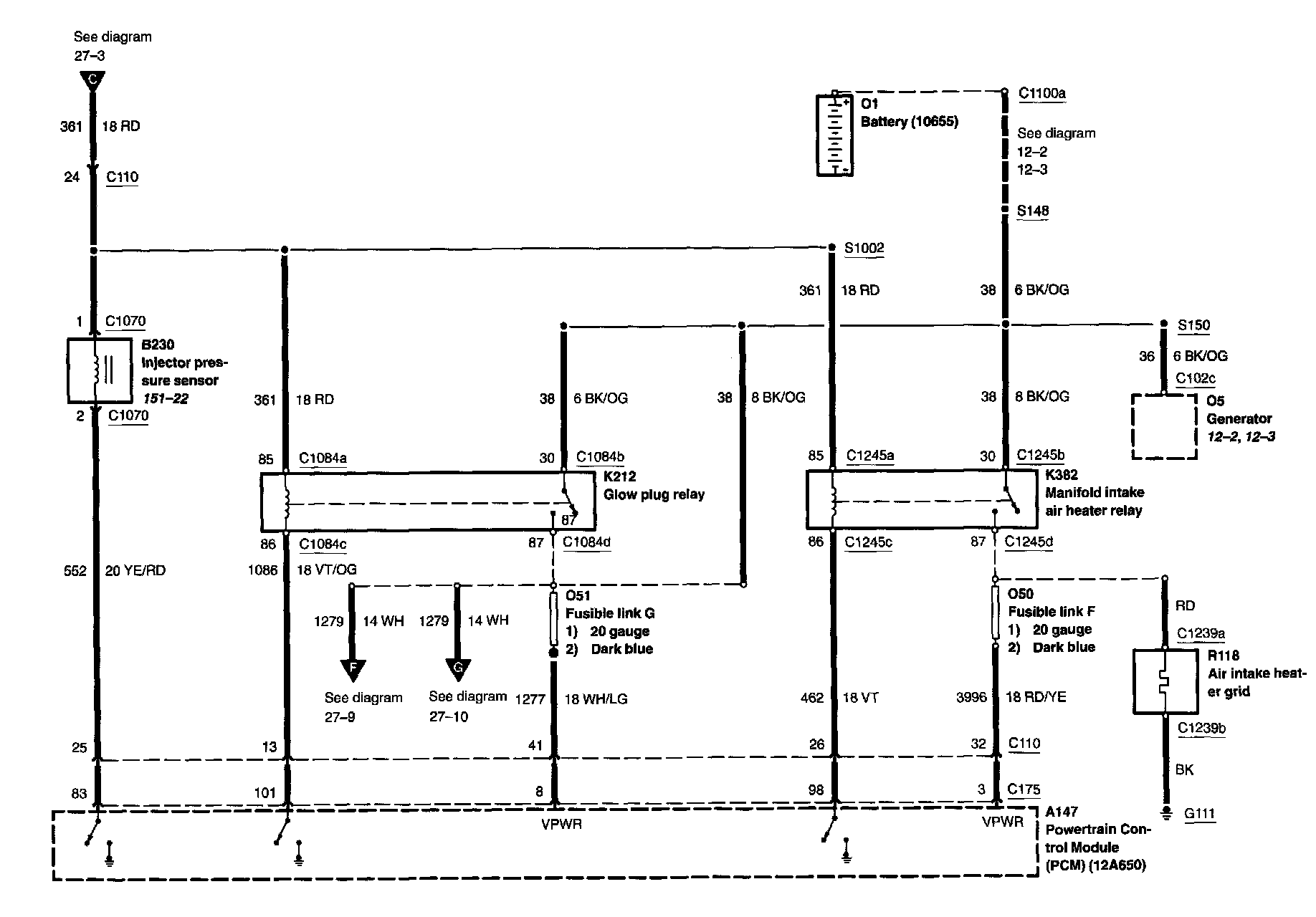

Diagram 27-4:
