Seals and Gaskets: Service and Repair

Seal - Oil

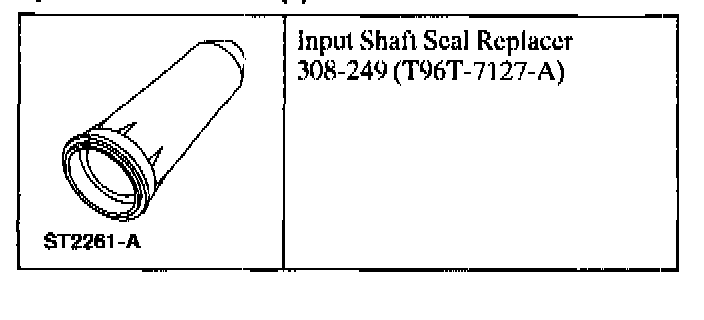

Special Tool(s)

Removal
1. Raise and support the vehicle.





2. NOTE: Index-mark the rear driveshaft yoke.

Remove the rear driveshaft.





3. Using a suitable tool, remove the oil seal.

Installation





1. To install, reverse the removal procedure.

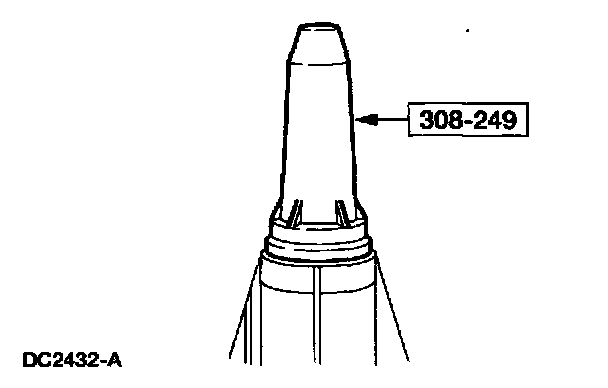

- Using the special tool, install the oil seal.
