Ford 8.8 Inch Front Axle
>>

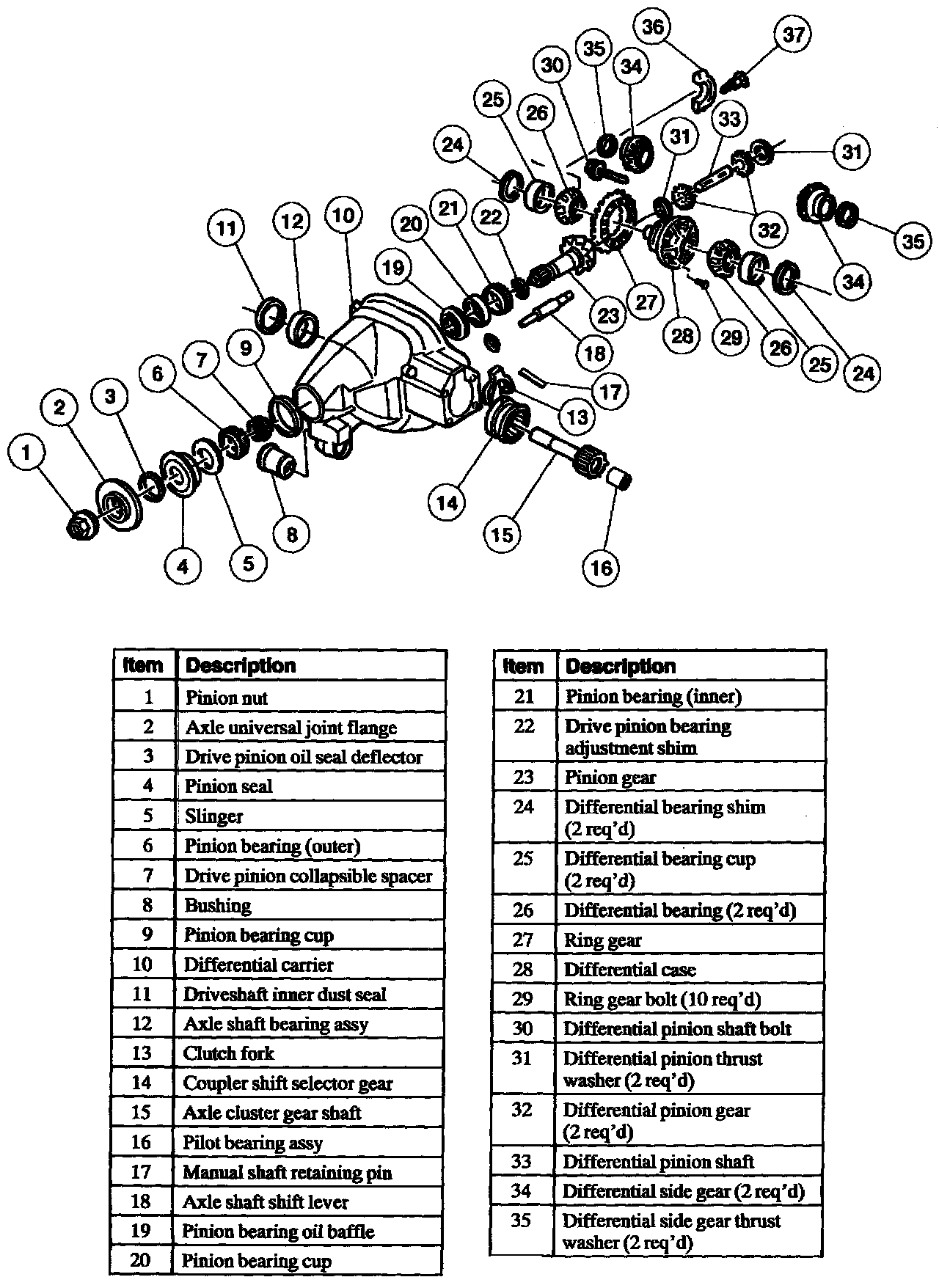

Front Differential-Exploded View
Front Differential-Exploded View
Front Differential-Exploded View
Part 1 of 3
Part 2 of 3

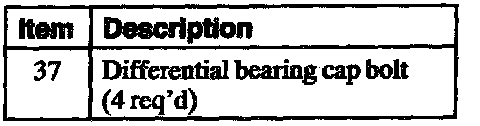

Part 3 of 3
