Sensor, Front

Sensor - Front, 4x4
Removal

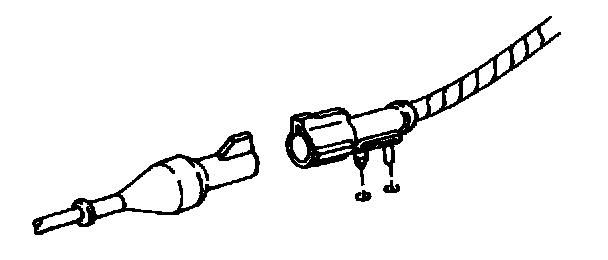

1. Disconnect the front brake anti-lock sensor electrical connector.
2. Remove the front disc brake rotor shield.

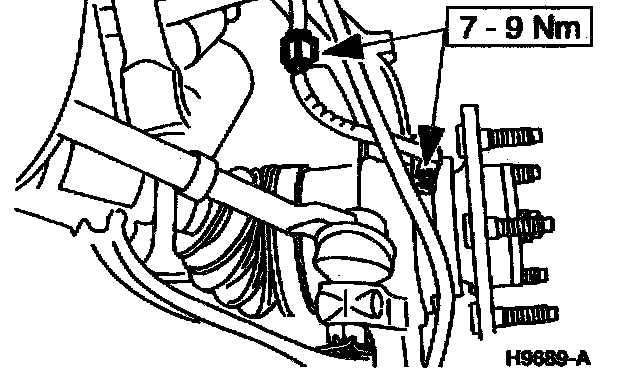

3. Remove the (A) front brake anti-lock sensor bolts and the (B) front brake anti-lock sensor.

Installation





1. To install, reverse the removal procedure.
