Seat-Front Bench

DISASSEMBLY
1. Remove the seat track.

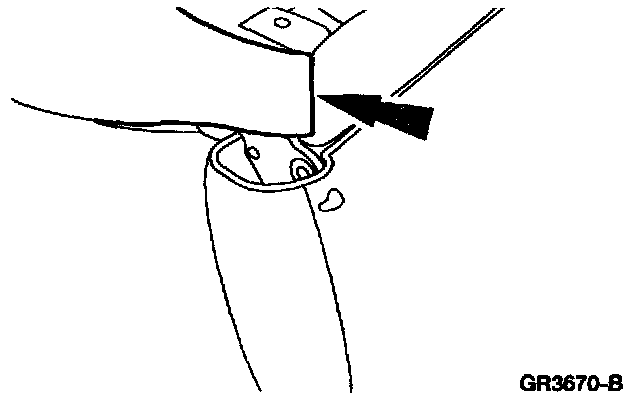

2. Unclip the seat cushion trim cover hinge cover flaps.

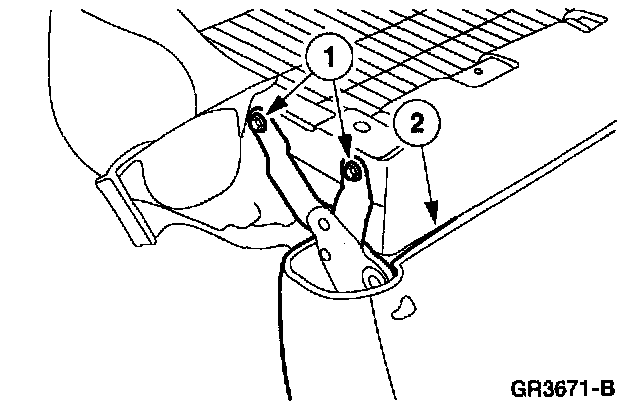

3. Remove the seat back.
1 Remove the bolts.
2 Remove the seat back.

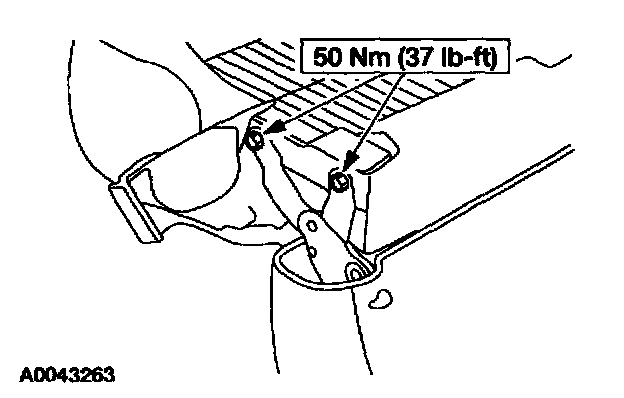

ASSEMBLY







1. To assemble, reverse the disassembly procedure.
