Rear Door Window Glass: Service and Repair

REMOVAL

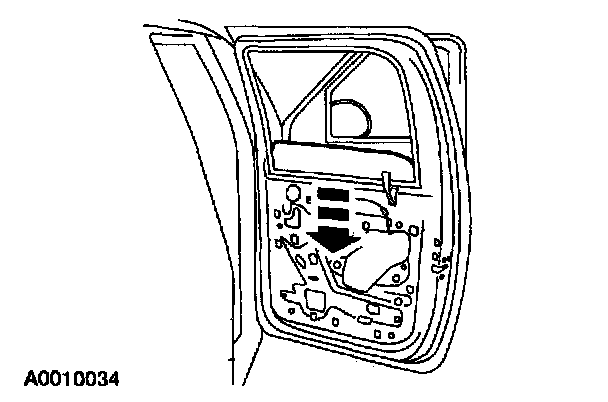

1. Remove the rear door window regulator motor.

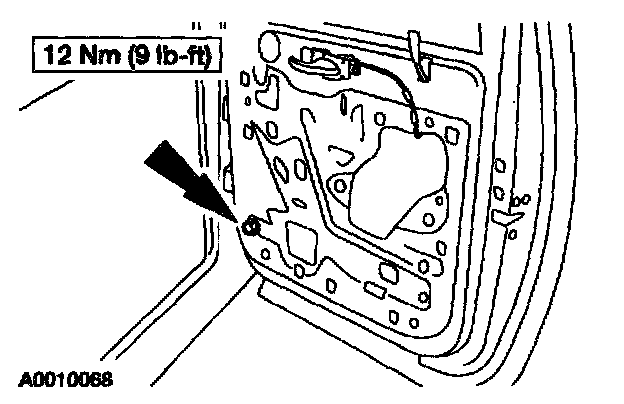

2. Remove the bolt and lower window run.

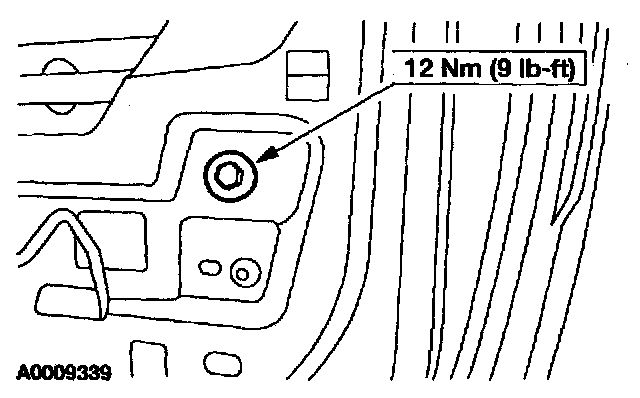

3. Remove the upper window run retaining bolt.

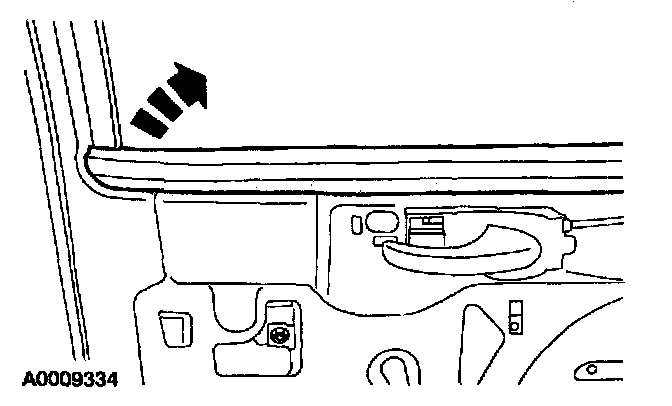

4. Remove the inside glass weatherstrip.

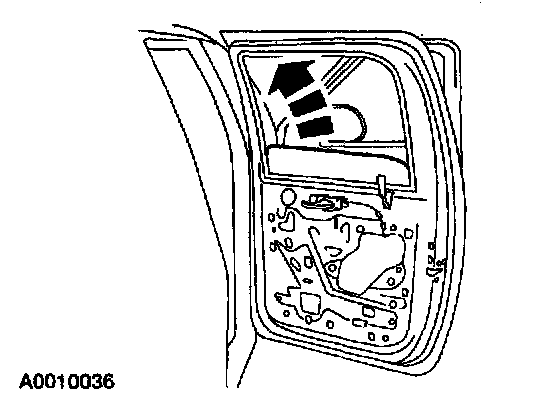

5. Lower the window glass to the bottom of the door frame and release it from the window run.







6. Remove the window glass.

INSTALLATION
1. To install, reverse the removal procedures.
