Rear Door Window Motor: Service and Repair

REMOVAL
1. Raise the rear door window glass to the full up position.
2. Remove the rear door trim panel.







3. Remove the screws and the trim panel brace.

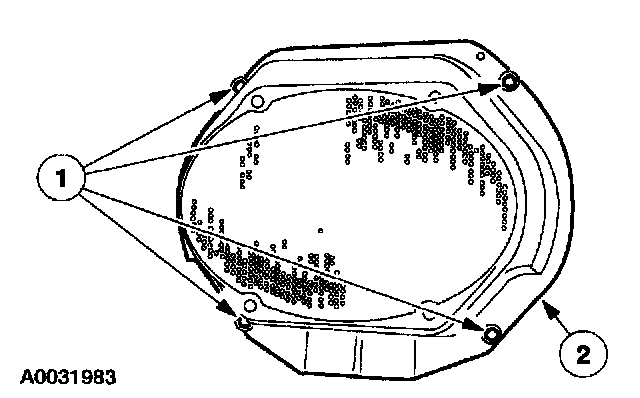

4. Remove the door speaker and adapter plate.
1 Remove the screws.
2 Remove the speaker and adapter plate as an assembly.
^ Disconnect the electrical connector.

5. Position the rear door watershield aside.







6. Disconnect the rear door window regulator electrical connector.







7. To access the power window motor bolts, use a 19 mm (3/4 in) hole saw with a 8 mm (1/4 in) pilot to drill three holes at the existing drill dimples on the door.

CAUTION: Make sure the electrical connector is positioned aside before drilling.







8. Remove the power window motor bolts and remove the motor.

INSTALLATION
1. To install, reverse the removal procedure.
^ Cycle the window glass to make sure the gears engage.
