Disc Check
Disc CheckSpecial Tools:
Special Tool(s)
1. Remove clutch assembly.
2. NOTE: Use emery cloth to remove minor imperfections in the clutch disc lining surface.

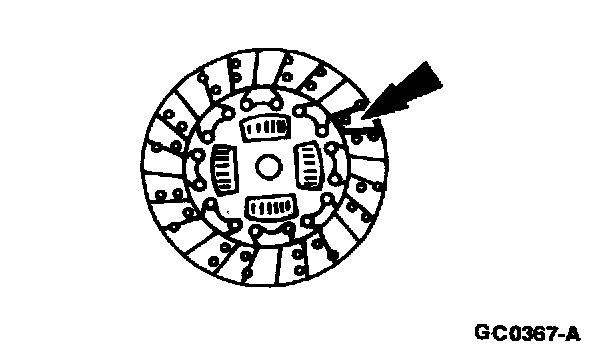

Inspect clutch disc for:
- Oil or grease saturation.
- Worn or loose rivets at the hub.
- Broken springs.
- Wear or rust on splines.
- Replace the clutch disc if any of these conditions are present.

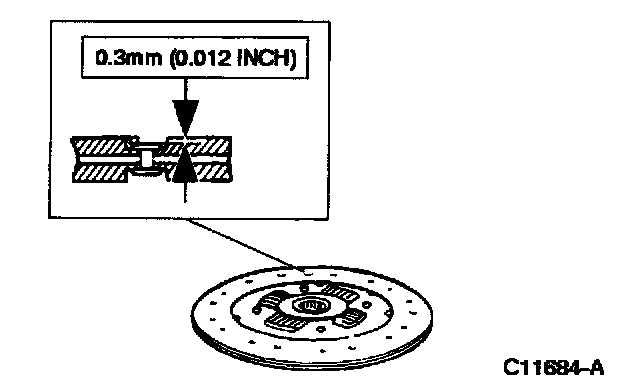

3. Use a slide caliper to measure the depth to the rivet heads. Replace the clutch disc if not within specification.

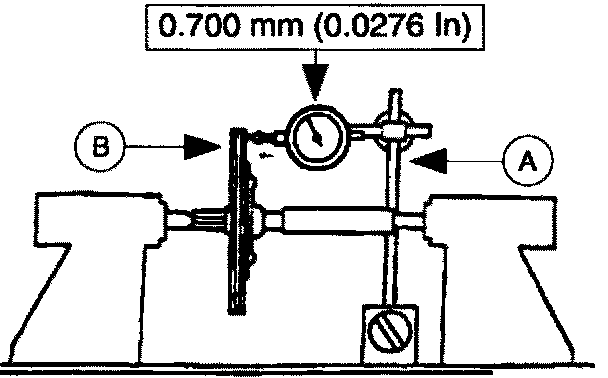

4. Use (A) Dial Indicator/Magnetic Base to inspect the (B) clutch disc runout. Replace the clutch disc if not within specification.
