4R70W

Transmission Filler Tube

Removal

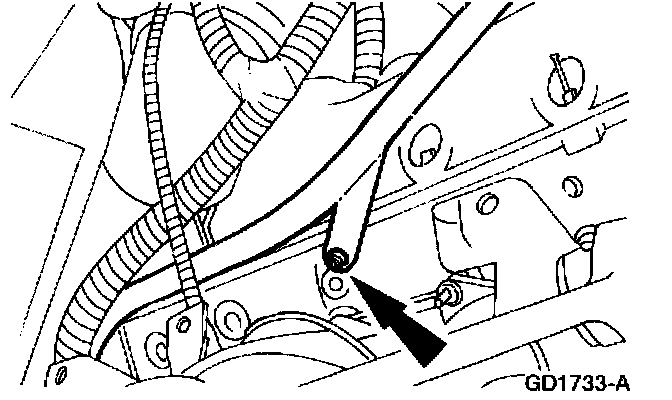

1. Remove the transmission fluid filler tube bolt from the side of the RH cylinder head.





2. Remove the fluid filler tube.

Installation
1. Follow the removal procedure in reverse order.

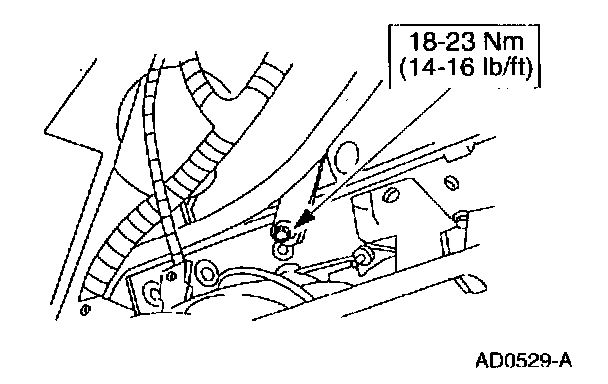

2. Install the transmission fluid tube bolt to the side of the RH cylinder head.
