Home >> Ford Truck >> 2002 >> F 150 Super Crew 2WD V8-4.6L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test F

Test F

PINPOINT TEST F: NO POWER IN TEST

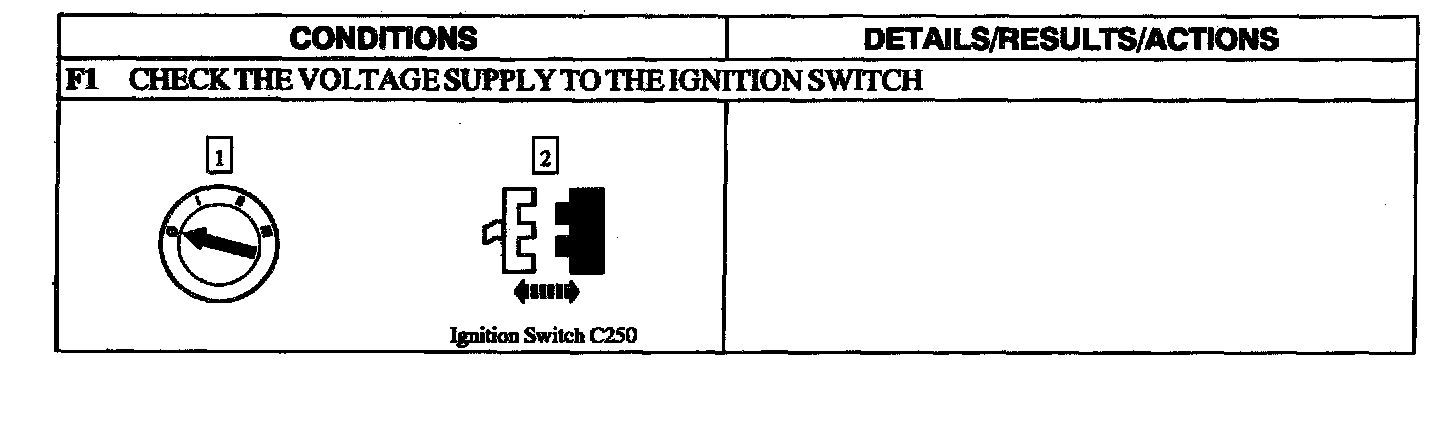

Test F1

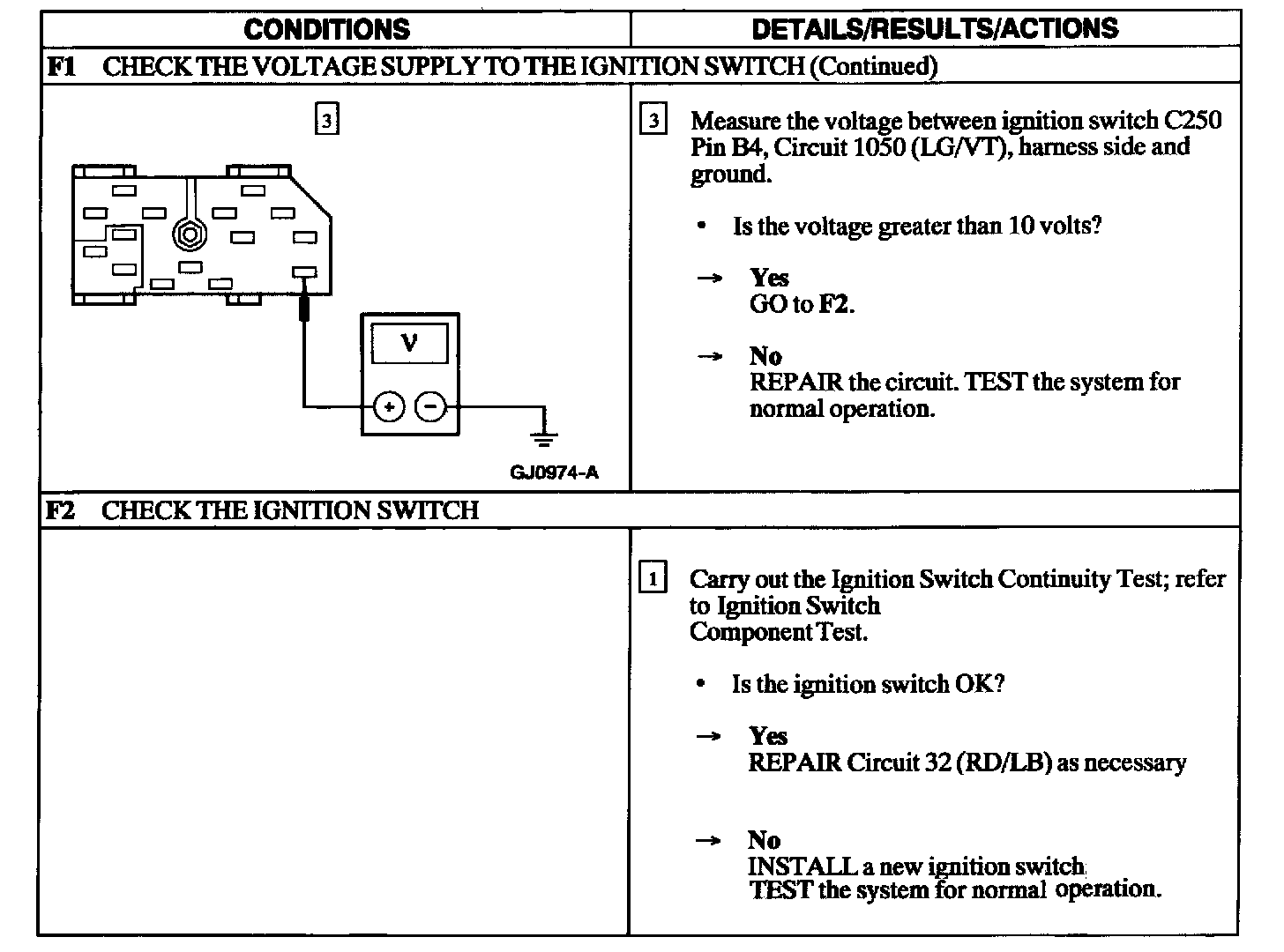

Test F1-F2
