Center Link: Service and Repair

Sector Shaft Arm Drag Link

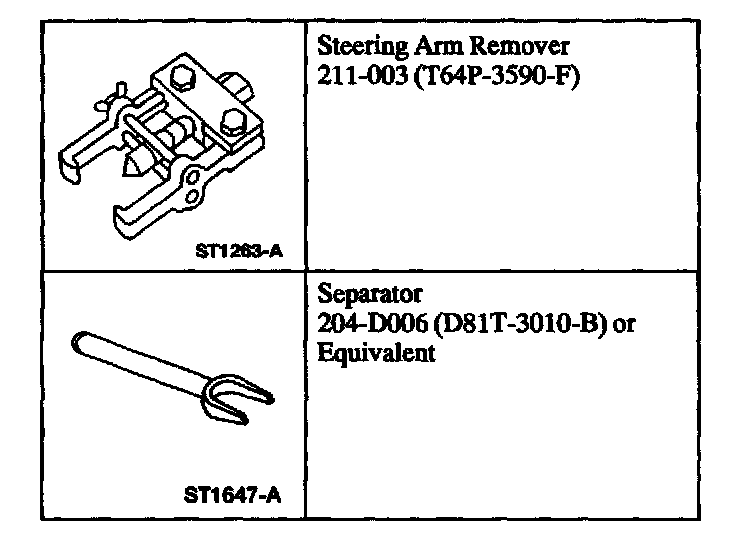

Special Tool(s)

Removal
1. Raise and support the vehicle.

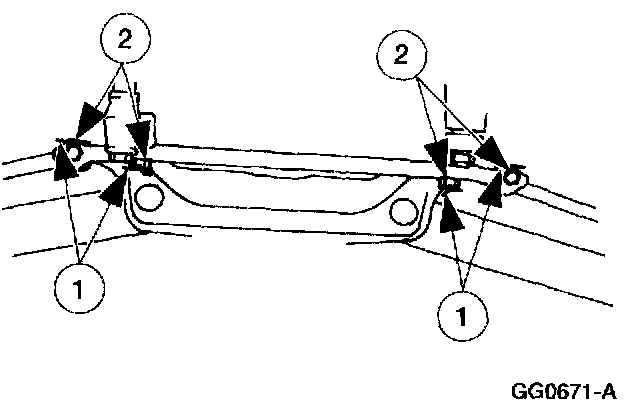

2. Remove the steering sector shaft arm drag link castellated nuts.





1. Remove the cotter pins.
2. Remove the castellated nuts.

3. Remove the two inner tie rods from the steering sector shaft arm drag link.

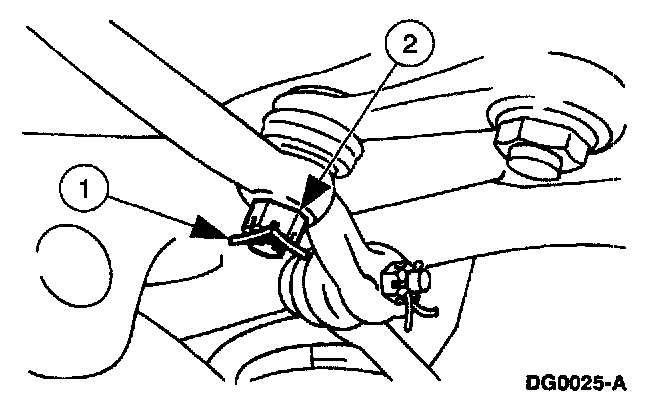

4. Remove the steering sector shaft arm drag link castellated nut.





1. Remove the cotter pin.
2. Remove the nut.

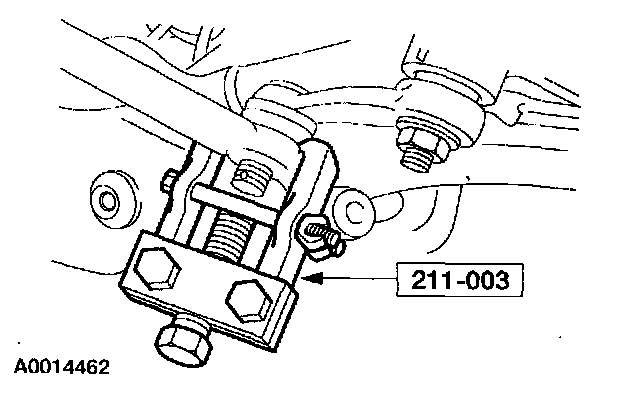

5. Using the special tool, separate the steering sector shaft arm drag link.

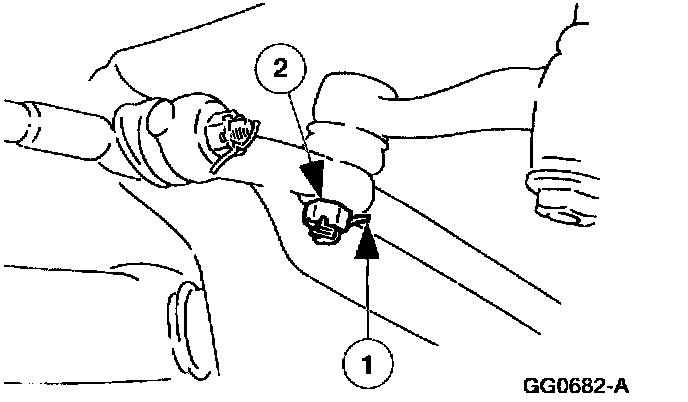

6. Remove the steering sector shaft arm drag link castellated nut.





1. Remove the cotter pin.
2. Remove the nut.





7. Using the special tool, separate the steering sector shaft arm drag link.

Installation

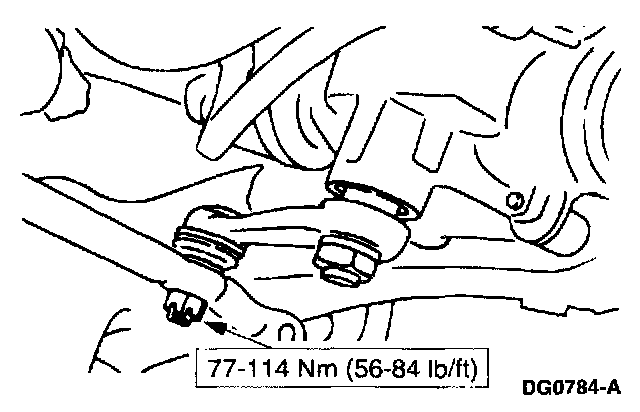

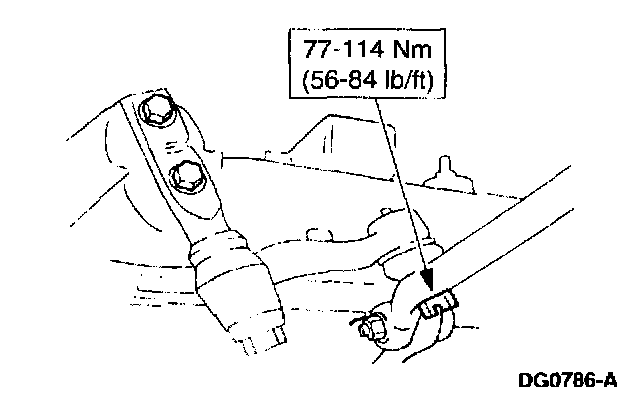

1. Follow the removal procedure in reverse order.
2. Lower the vehicle.
