Adjustable Accelerator Pedal

REMOVAL

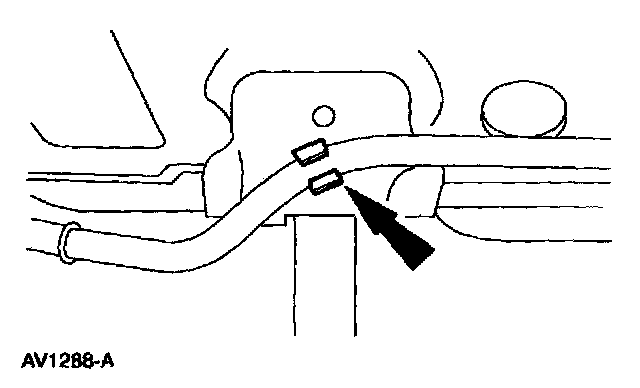

1. Depress the locking tabs on the accelerator pedal drive cable and remove the drive cable from the accelerator pedal assembly.

NOTE: Make sure that the adjustable pedals assembly is at the full forward position (pedals positioned toward front of the vehicle). The accelerator pedal and shaft can be serviced separately from the adjustable pedal assembly. However, the accelerator pedal and shaft itself is only serviced as an assembly.

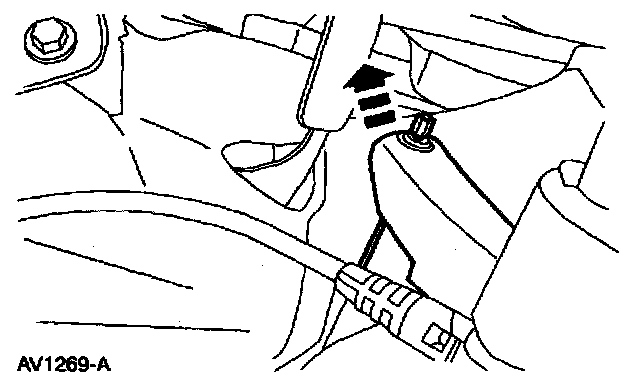

2. Disconnect the accelerator cable from the accelerator pedal and shaft assembly.

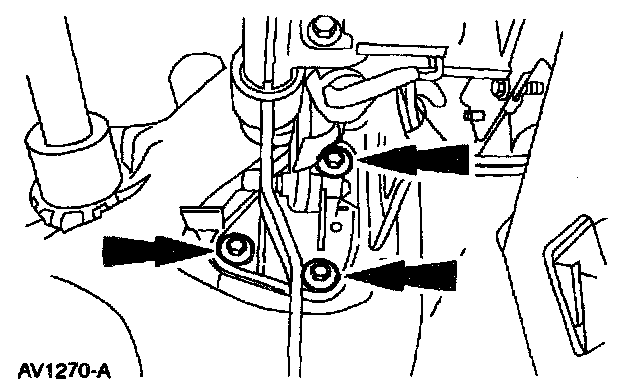

3. Remove the bolts and remove the accelerator pedal and shaft assembly.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: When installing a new accelerator pedal, the accelerator pedal will come in the forward or rearward position. Before installing the cable, move the brake pedal with the motor so it is in the same position as the accelerator pedal.
