Door Switch: Service and Repair

REMOVAL
1. Remove the door latch.







2. Remove the door ajar switch.

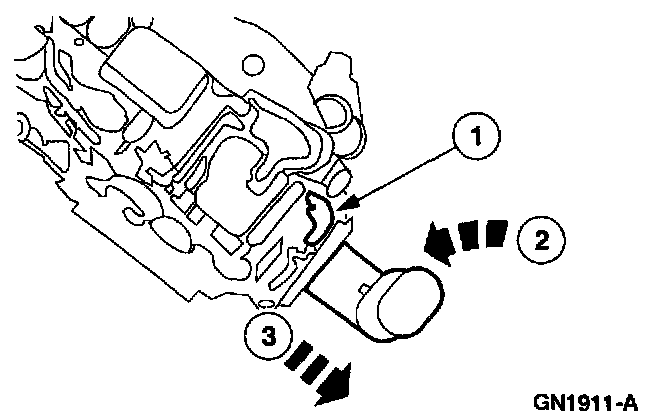

1 Lift the locking tab.
2 Rotate the door ajar switch counterclockwise.
3 Remove the door ajar switch.

INSTALLATION
1. To install, reverse the removal procedure.
