Vacuum Reservoir HVAC: Service and Repair

REMOVAL
1. Remove the battery and battery tray bracket.

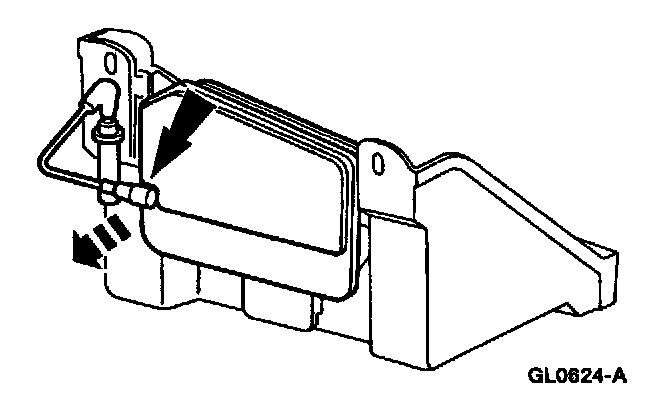

2. Disconnect the A/C vacuum tank hose from the A/C vacuum reservoir tank and bracket.

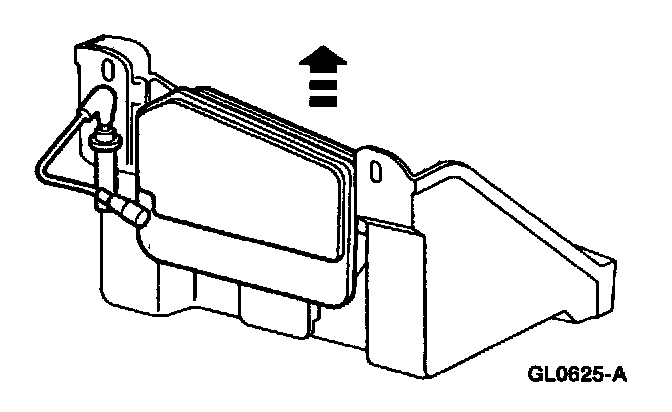

3. Remove the screw and the A/C vacuum reservoir tank and bracket.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When positioning the A/C vacuum reservoir tank, make sure that the bottom locator and two top tabs align with the battery tray.
