RH Register

REMOVAL
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

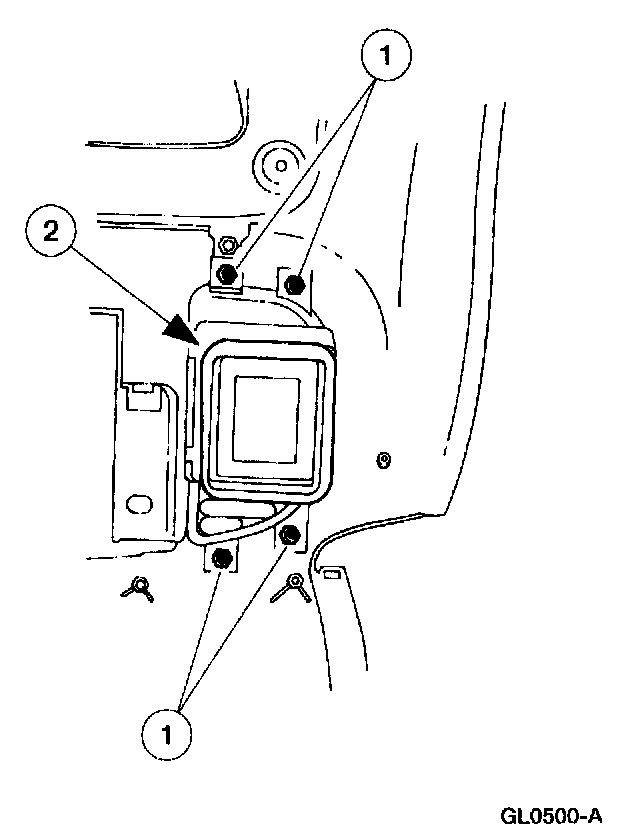

2. Remove the RH panel register.
1 Remove the screws.
2 Remove the RH panel register.

INSTALLATION
1. To install, reverse the removal procedure.
