Center Register

REMOVAL

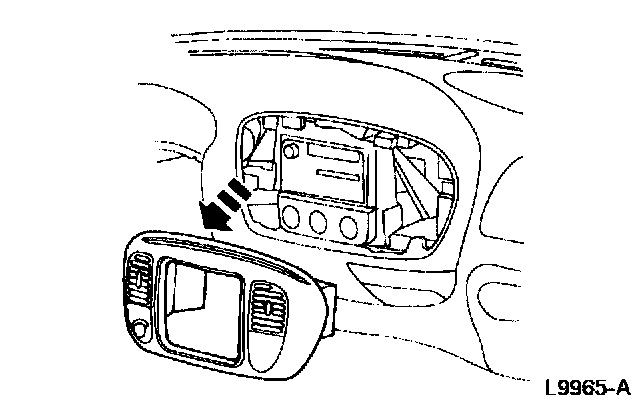

1. Remove the center instrument panel finish panel.

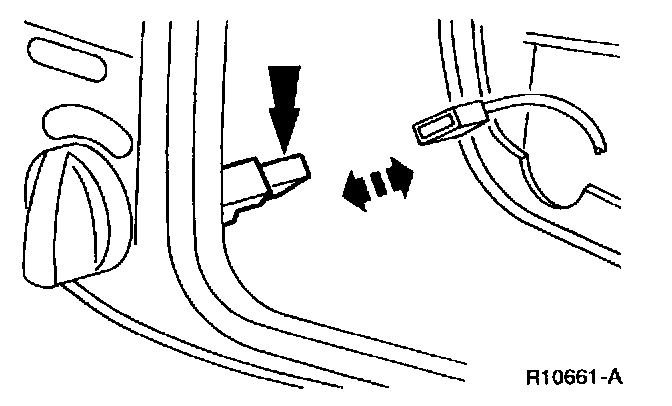

2. If equipped, disconnect the transfer case rotary control switch electrical connector.
3. Disconnect the battery.

WARNING:
^ NEVER PROBE THE CONNECTIONS ON THE AIR BAGS. DOING SO MAY RESULT IN AIR BAG DEPLOYMENT WHICH COULD RESULT IN PERSONAL INJURY.
^ THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE SERVICING OR REPLACING ANY AIR BAG SYSTEM COMPONENTS. FAILURE TO DEPLETE THE BACKUP POWER SUPPLY MAY ACCIDENTALLY DEPLOY THE AIR BAG AND CAUSE PERSONAL INJURY.

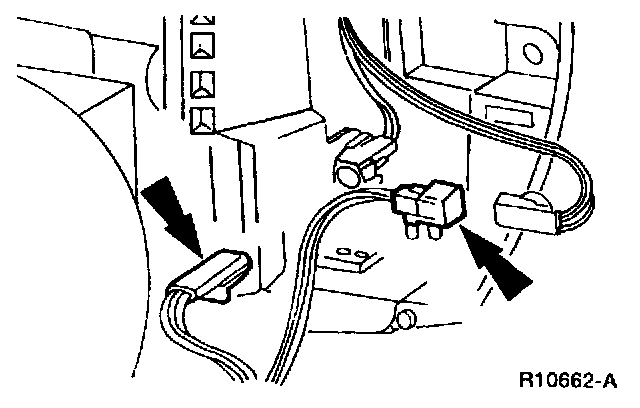

4. If equipped, disconnect the passenger air bag defeat switch electrical connector.

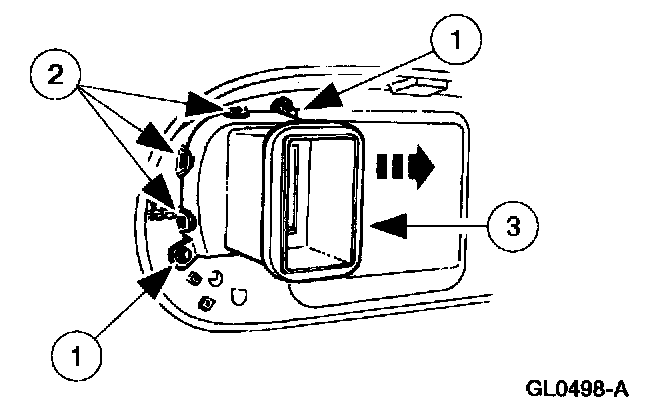

5. Remove the center panel register.
1 Remove the screws.
2 Pry back the lock tabs.
3 Remove the panel register.

INSTALLATION
1. To install, reverse the removal procedure.
