LH
Valve Cover LHRemoval
Vehicles
1. Disconnect the battery ground cable.
2. Remove the engine air cleaner and the air cleaner outlet pipe.
3. Position the power steering fluid reservoir and bracket aside.
1 Remove the bolts.
2 Position the power steering fluid reservoir and bracket aside.
4. NOTE: 4.6L engine shown 5.4L engine similar.

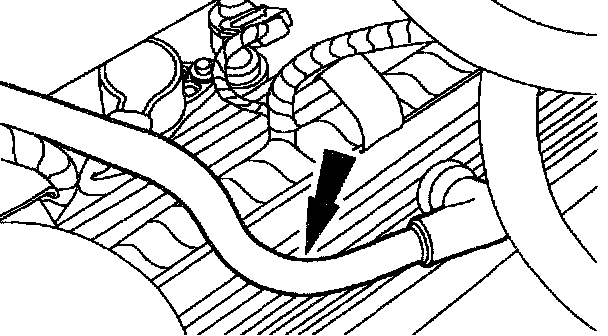

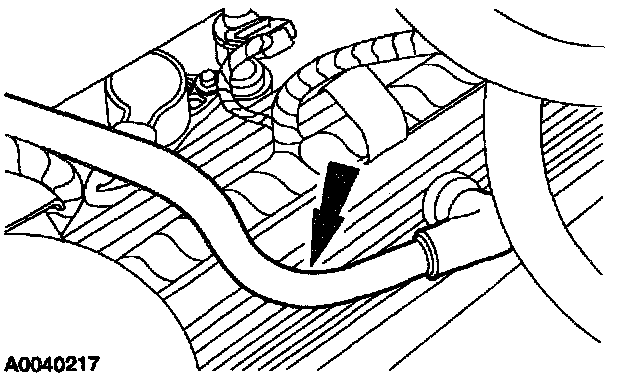

Remove the crankcase ventilation tube from the valve cover.
Romeo engine (4.6L)
5. Remove the exhaust manifold to Exhaust Gas Recirculation (EGR) valve tube.

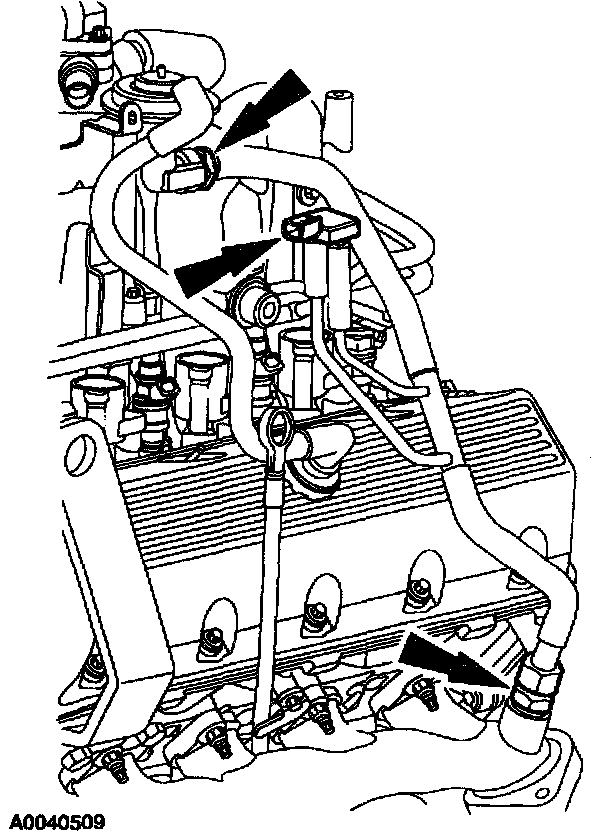

^ Disconnect the differential pressure feedback EGR system electrical connector and remove the sensor.
^ Disconnect the upper and lower exhaust manifold to EGR valve tube fittings.
Windsor engine (5.4L)
6. Remove the exhaust manifold to EGR valve tube.

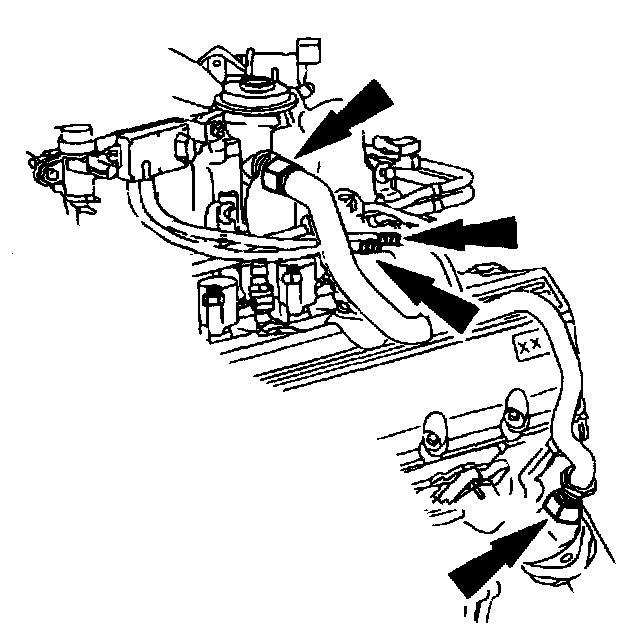

^ Disconnect the two differential pressure feedback EGR system hoses.
^ Disconnect the upper and lower exhaust manifold to EGR valve tube fittings.
All vehicles

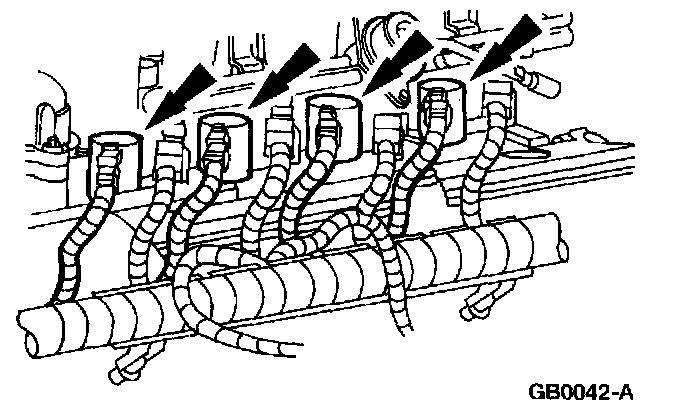

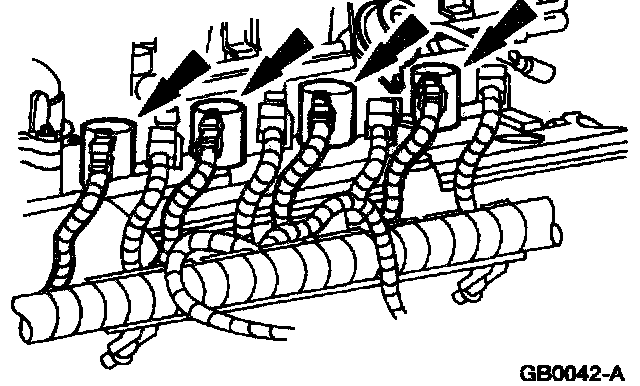

7. Disconnect the LH fuel injector electrical connections.

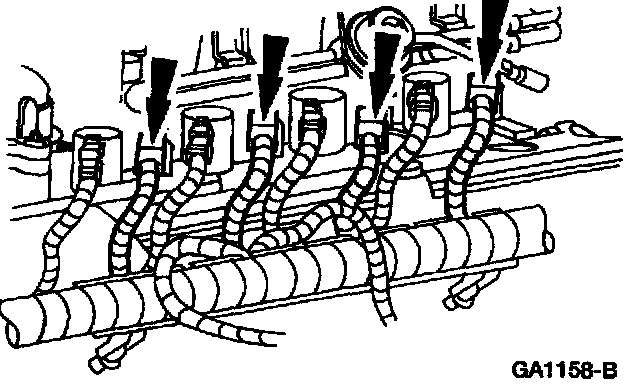

8. Disconnect the LH ignition coil electrical connections.

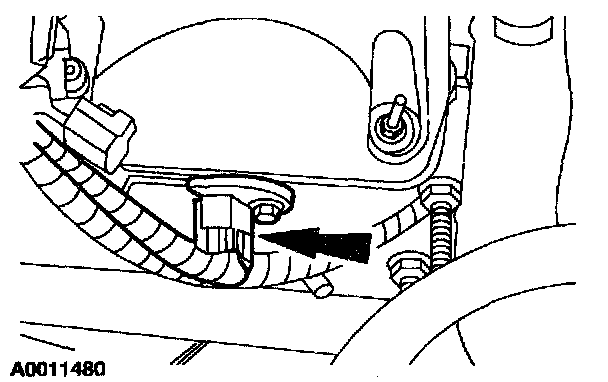

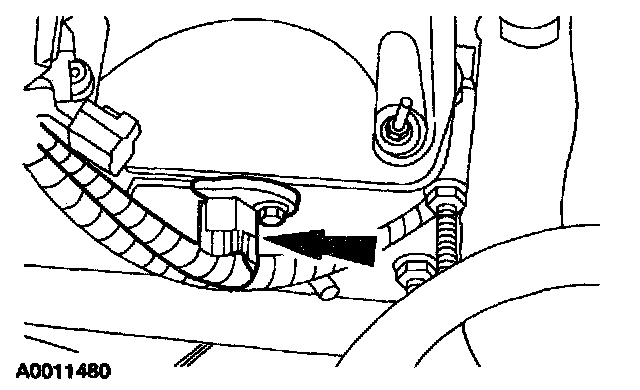

9. Disconnect the Camshaft Position (CMP) sensor.

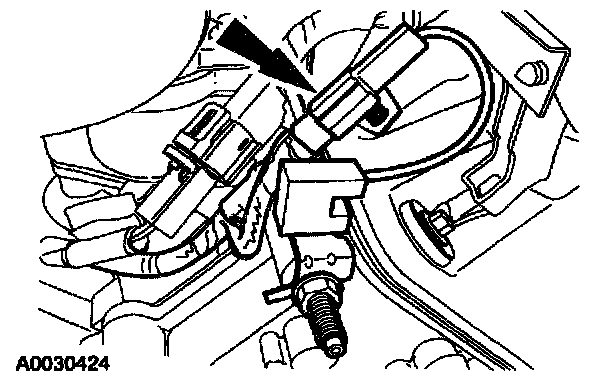

10. Disconnect the LE radio interference capacitor.
11. Lift the engine control wiring harness off of the valve cover studs.
12. NOTE: The intake manifold is removed for clarity.
NOTE: The bolts are part of the valve cover and should not be removed.

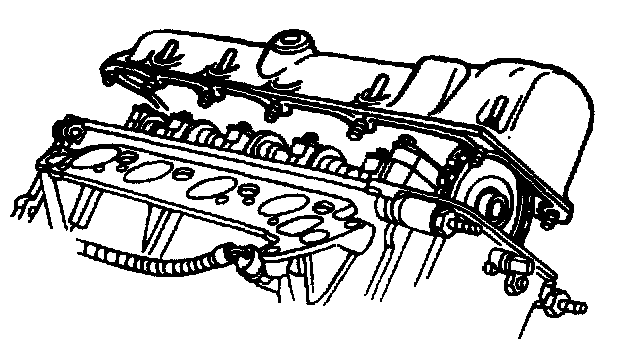

Remove the LH valve cover.
^ Fully loosen the bolts and remove the valve cover.
^ Inspect the valve cover gasket and clean the mating surface of the cylinder head.
Installation
All vehicles
1. NOTE: If not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

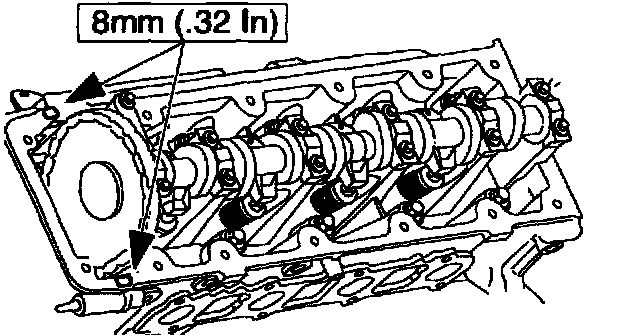

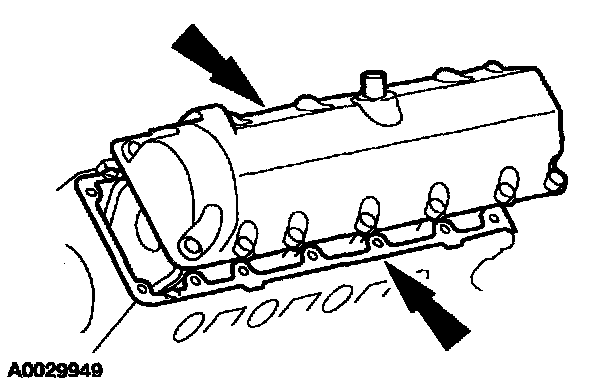

Apply a bead of silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
2. Position the valve cover and the valve cover gasket on the cylinder head, and loosely install the bolts.
Romeo engine (4.6L)

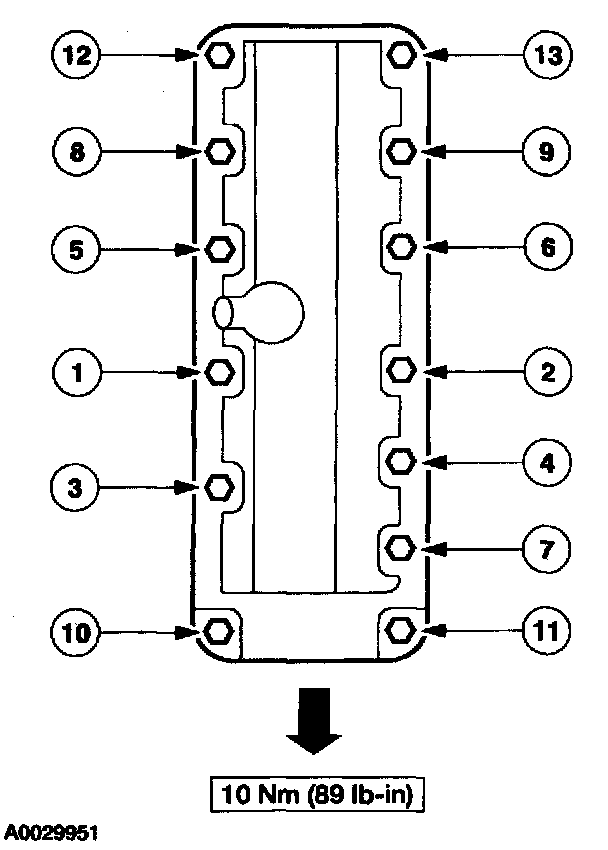

3. Tighten the bolts in the sequence shown.

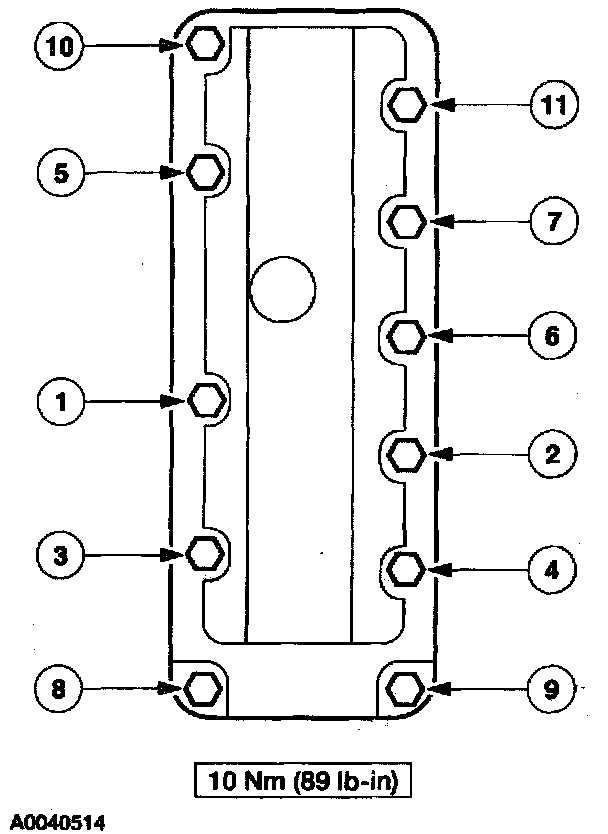

Windsor engine (5.4L)
All vehicles
4. Position the engine control wiring harness onto the valve cover studs.

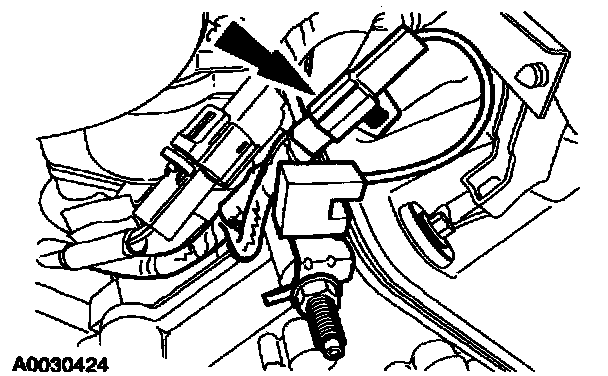

5. Connect the LH radio interference capacitor electrical connector.
6. Connect the CMP electrical connector.

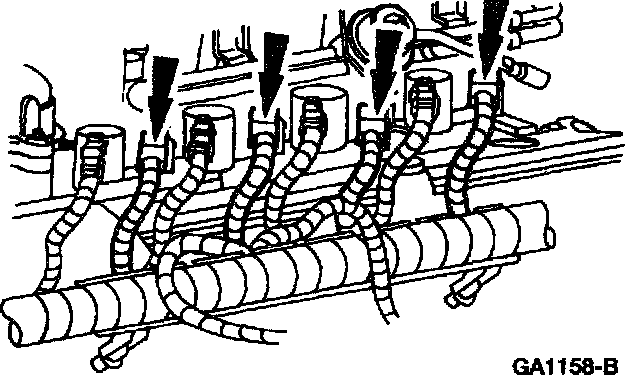

7. Connect the LH ignition coil electrical connectors.
8. Connect the LH fuel injector electrical connectors.
Romeo Engine (4.6L)
9. Install the exhaust manifold to EGR valve tube.
^ Install the differential pressure feedback EGR system and connect the electrical connector.

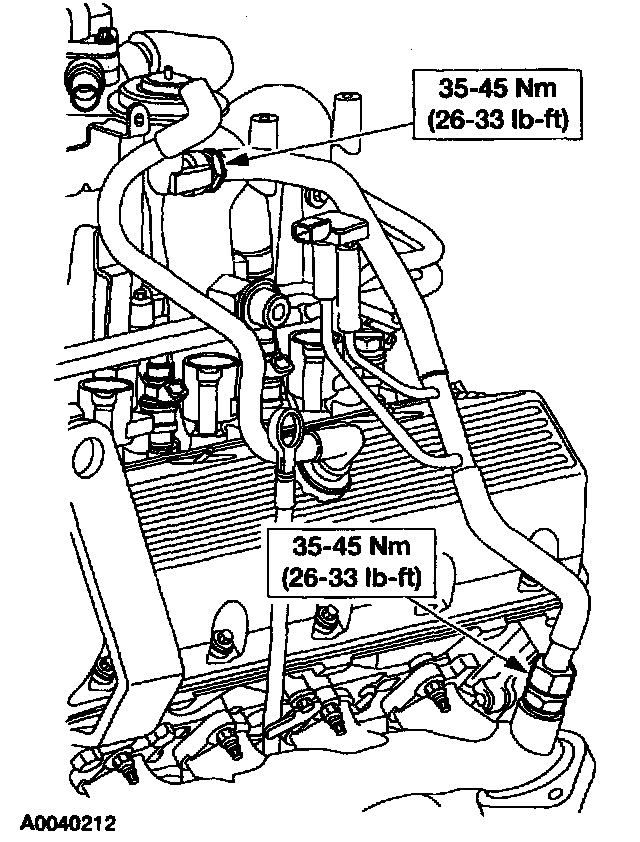

^ Tighten both fittings starting at the top in two stages.
^ Stage 1: Hand-tighten.
^ Stage 2: Tighten to 35 - 45 Nm (26 - 33 ft. lbs.).
Windsor engine (5.4L)

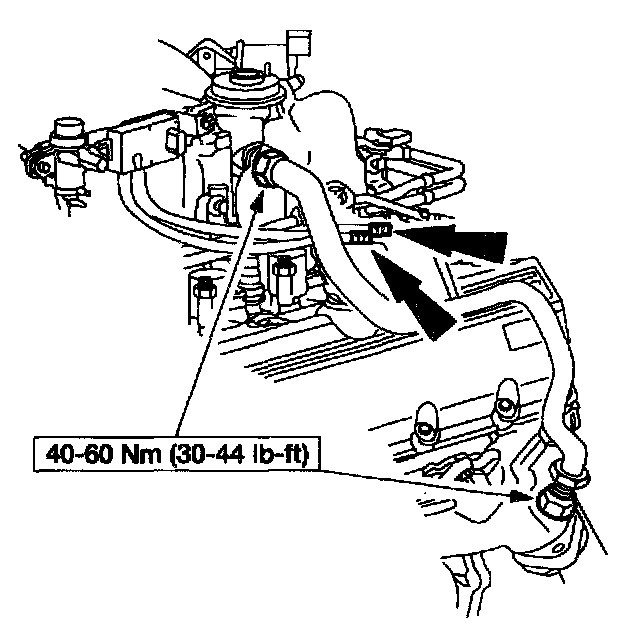

10. Install the exhaust manifold to EGR valve tube.
^ Tighten both fittings starting at the top in two stages.
^ Stage 1: Hand-tighten.
^ Stage 2: Tighten to 40-60 Nm (30-44 ft. lbs.).
^ Connect the two differential pressure feedback EGR system hoses.
All vehicles
11. NOTE: 4.6L engine shown; 5.4L engine similar.
Connect the crankcase ventilation tube to the valve cover.
12. Install the Engine Air Cleaner (ACL) and air cleaner outlet pipe.

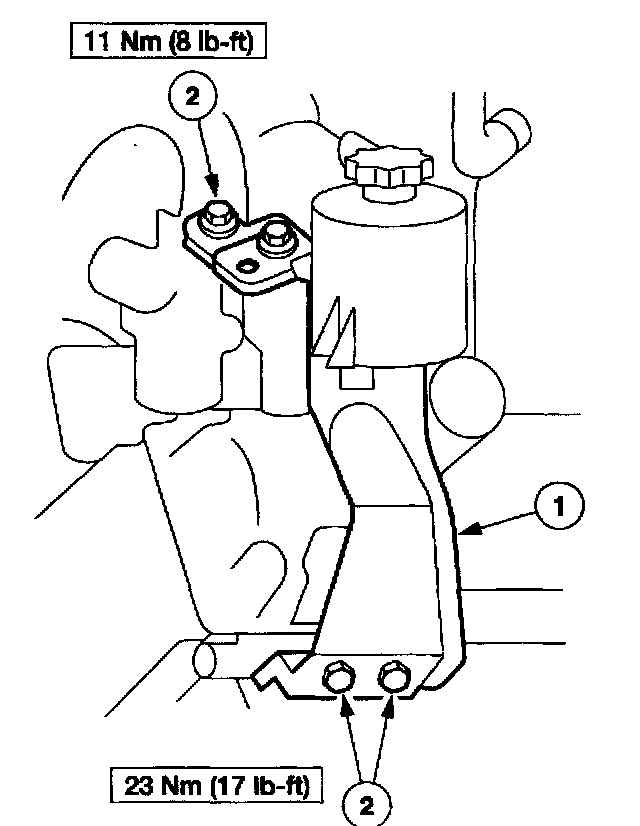

13. Install the power steering fluid reservoir and bracket.
1 Position the power steering fluid reservoir and bracket.
2 Install the bolts.
14. Connect the battery ground cable.
