Ford Truck
>>
2002
>>
F 150 Super Crew 2WD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
>>
Manual Transmission
Manual Transmission

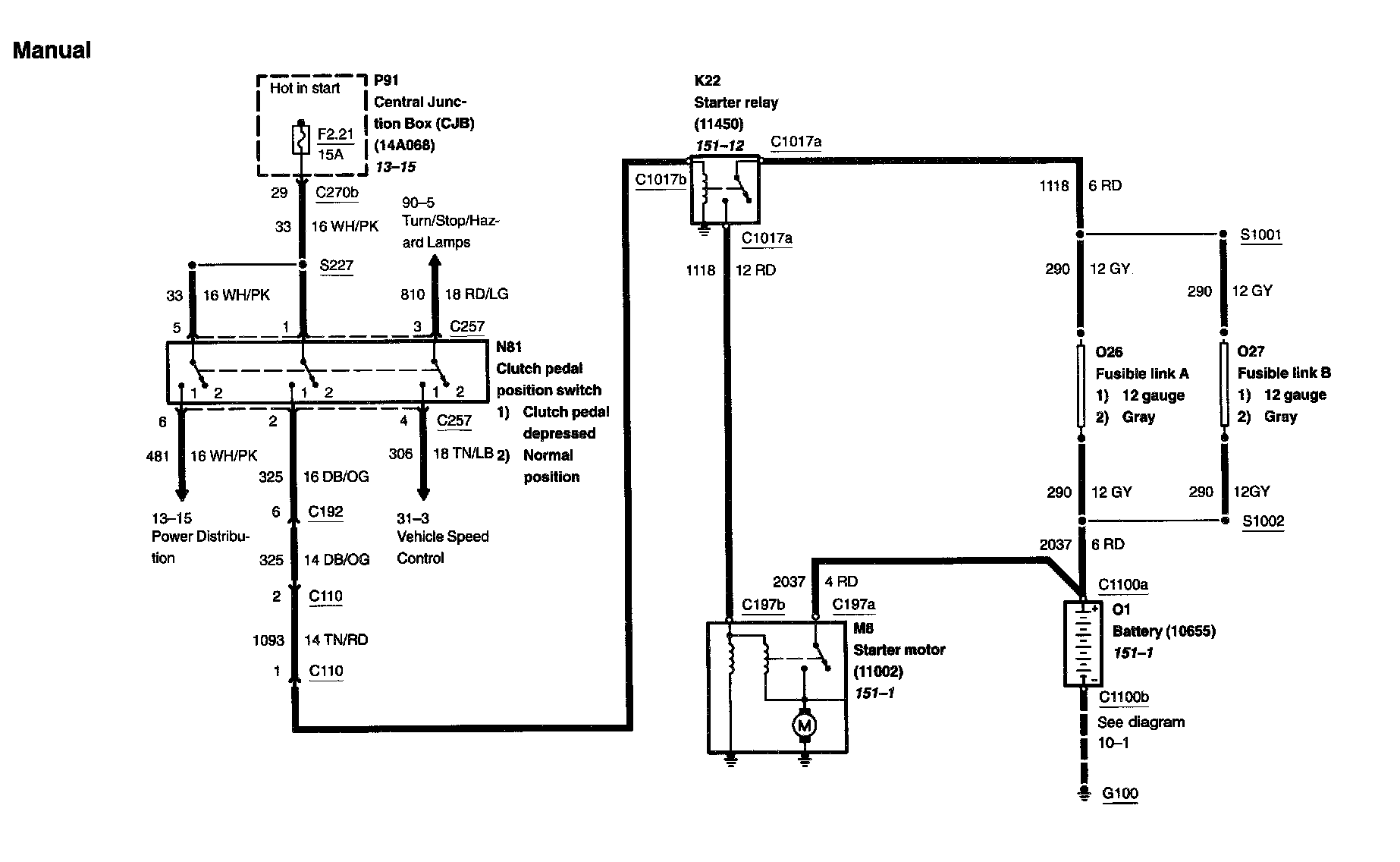

Diagram 20-1:
