Electronic Automatic Temperature Control Diagrams

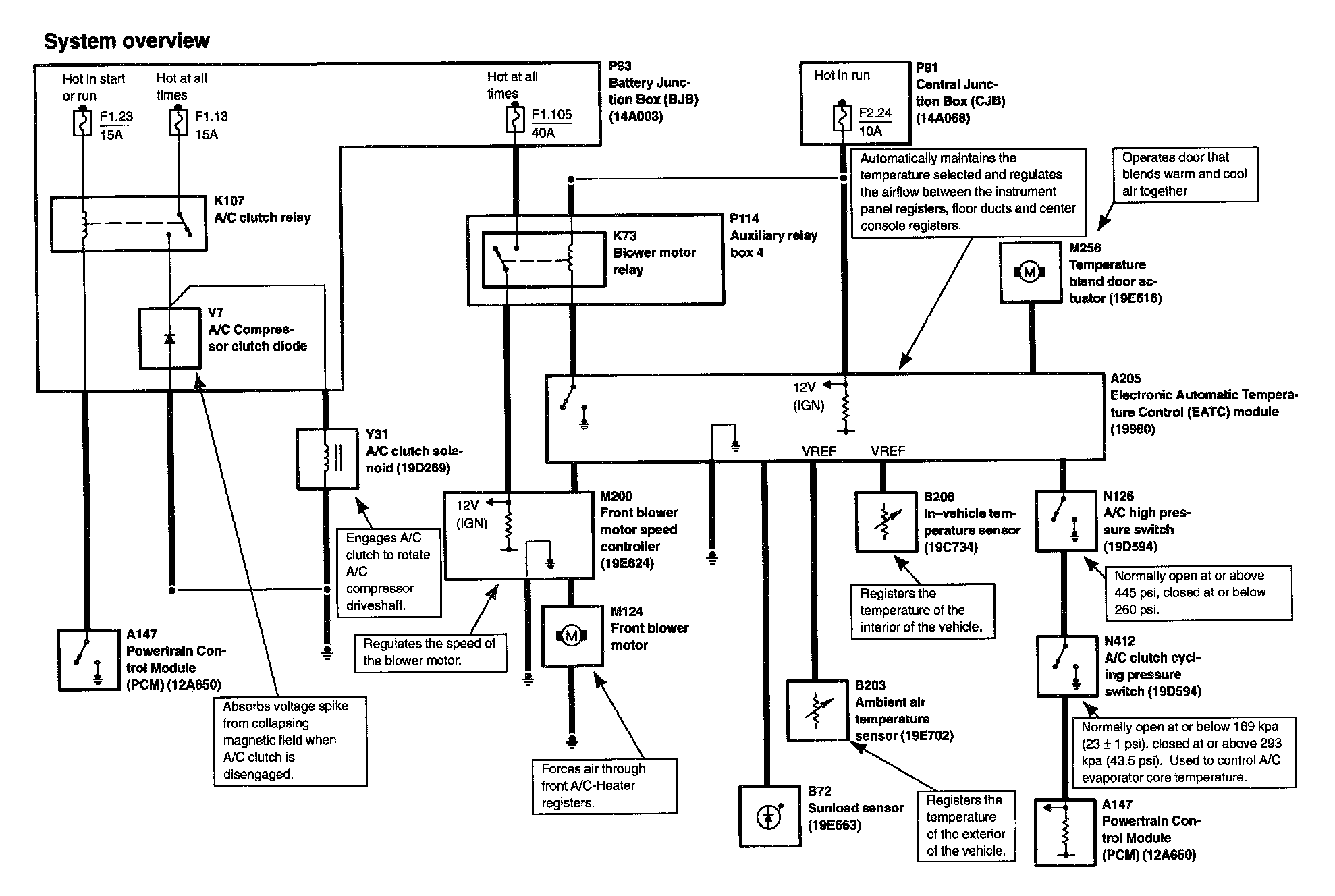

Diagram 55-1:

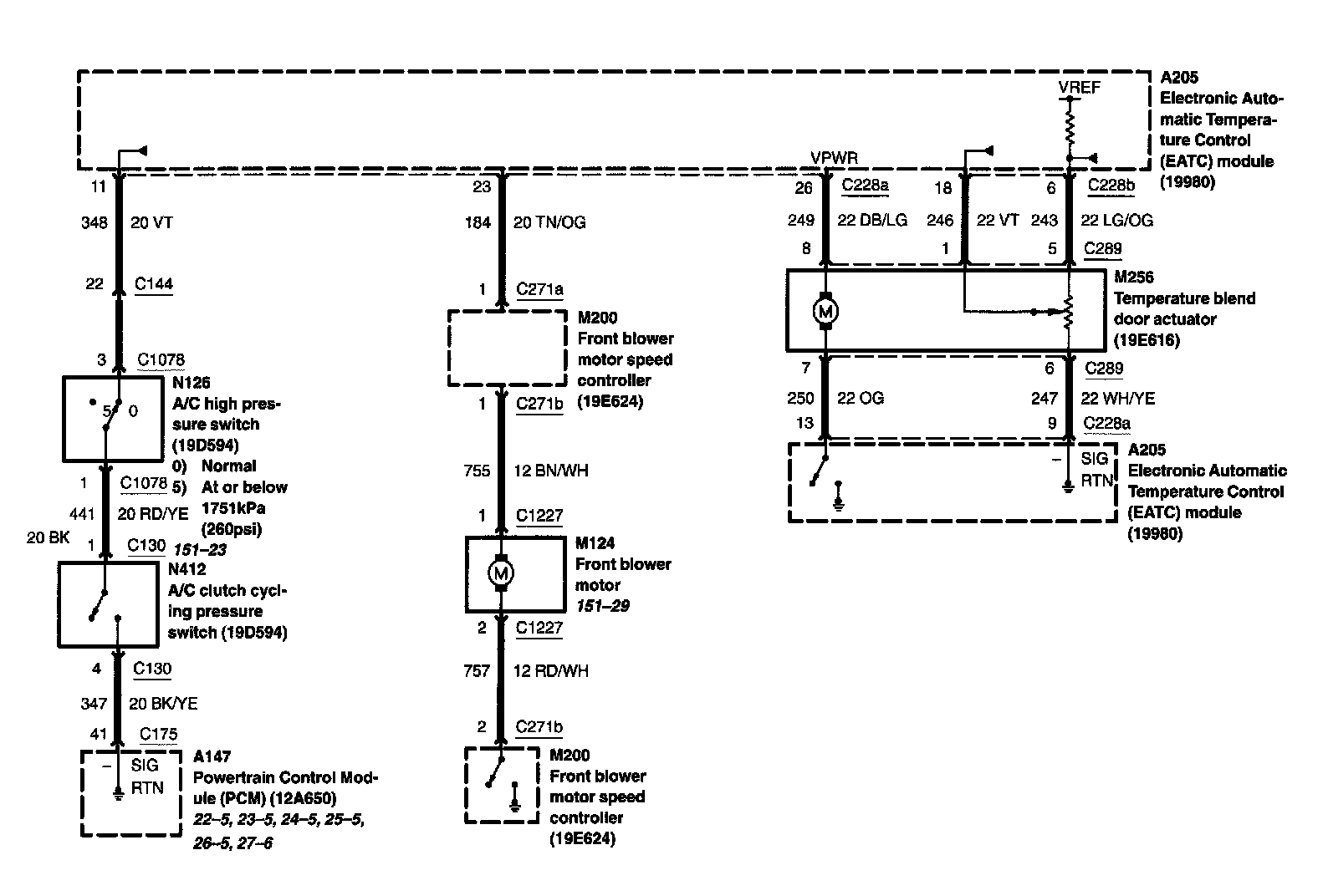

Diagram 55-2:

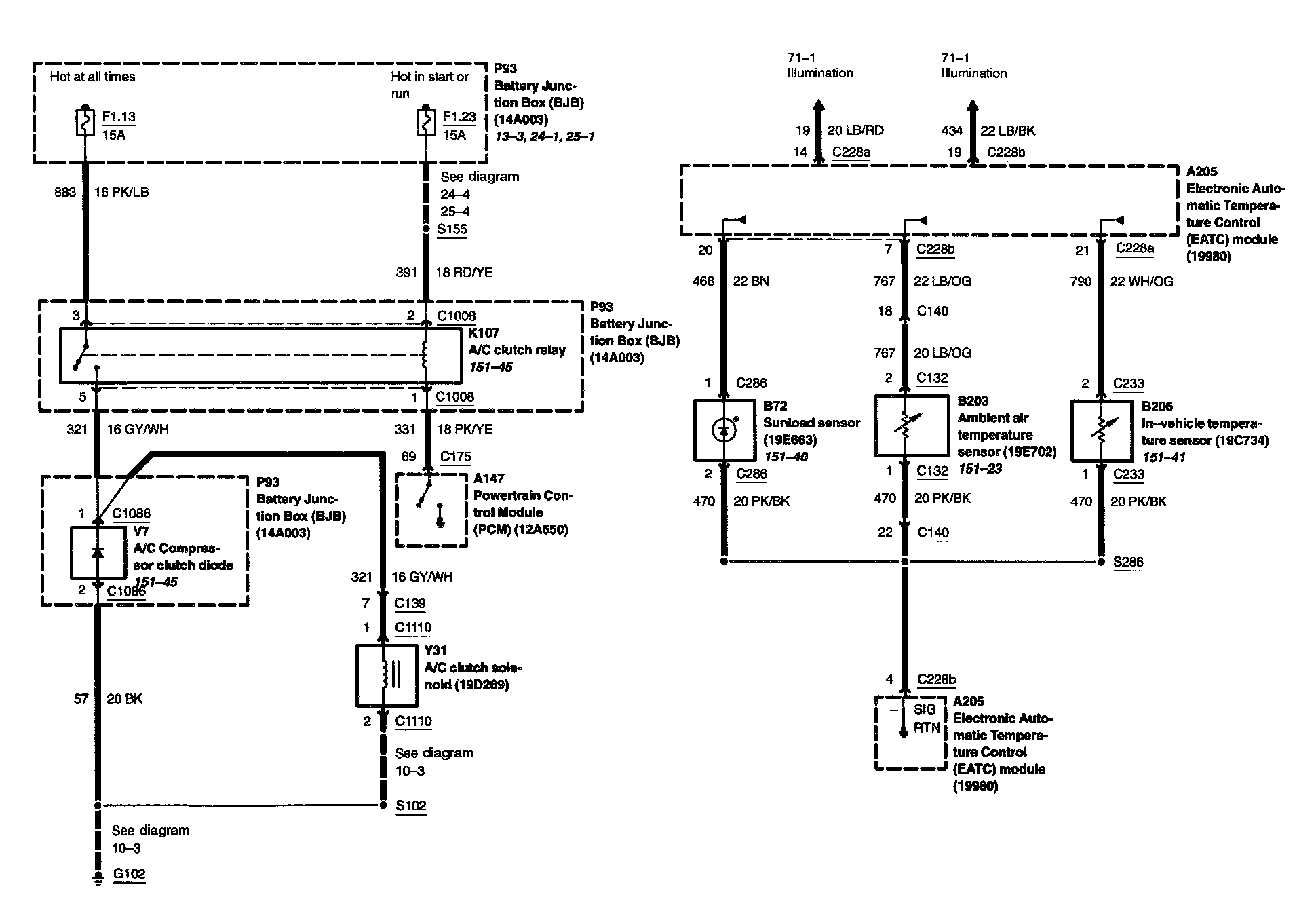

Diagram 55-3:






Diagram 55-4:
