Entertainment Systems

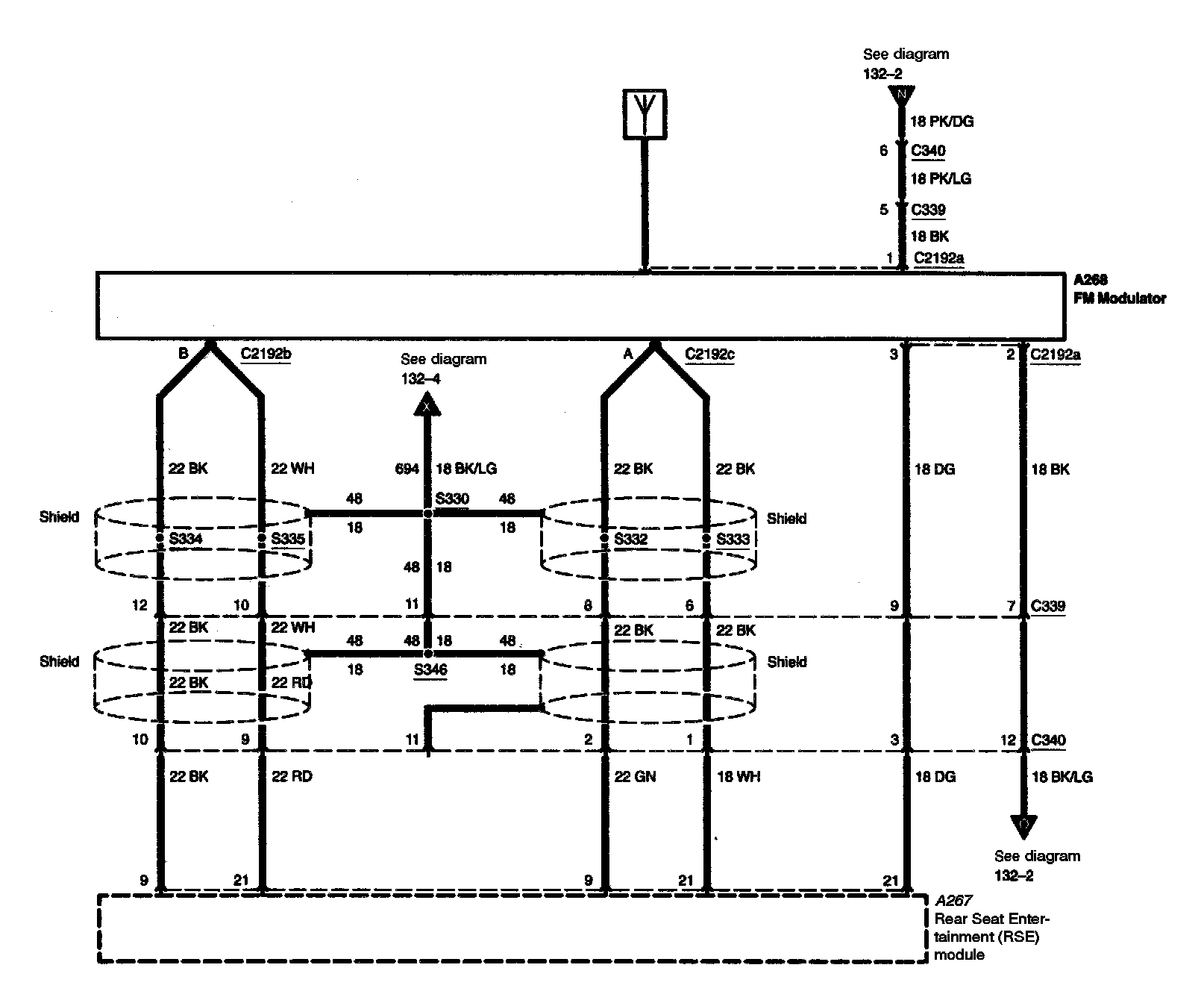

Diagram 132-1:

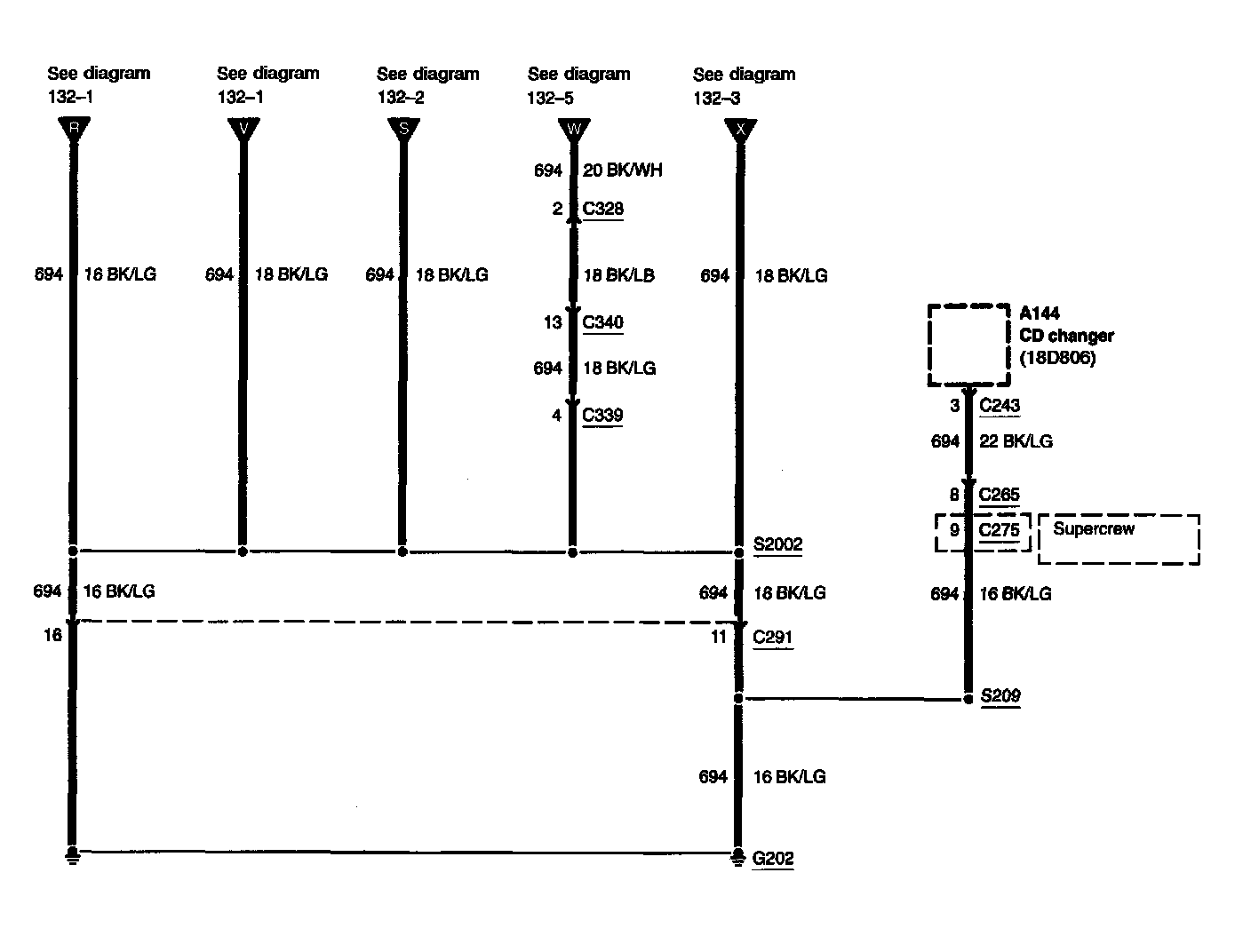

Diagram 132-2:

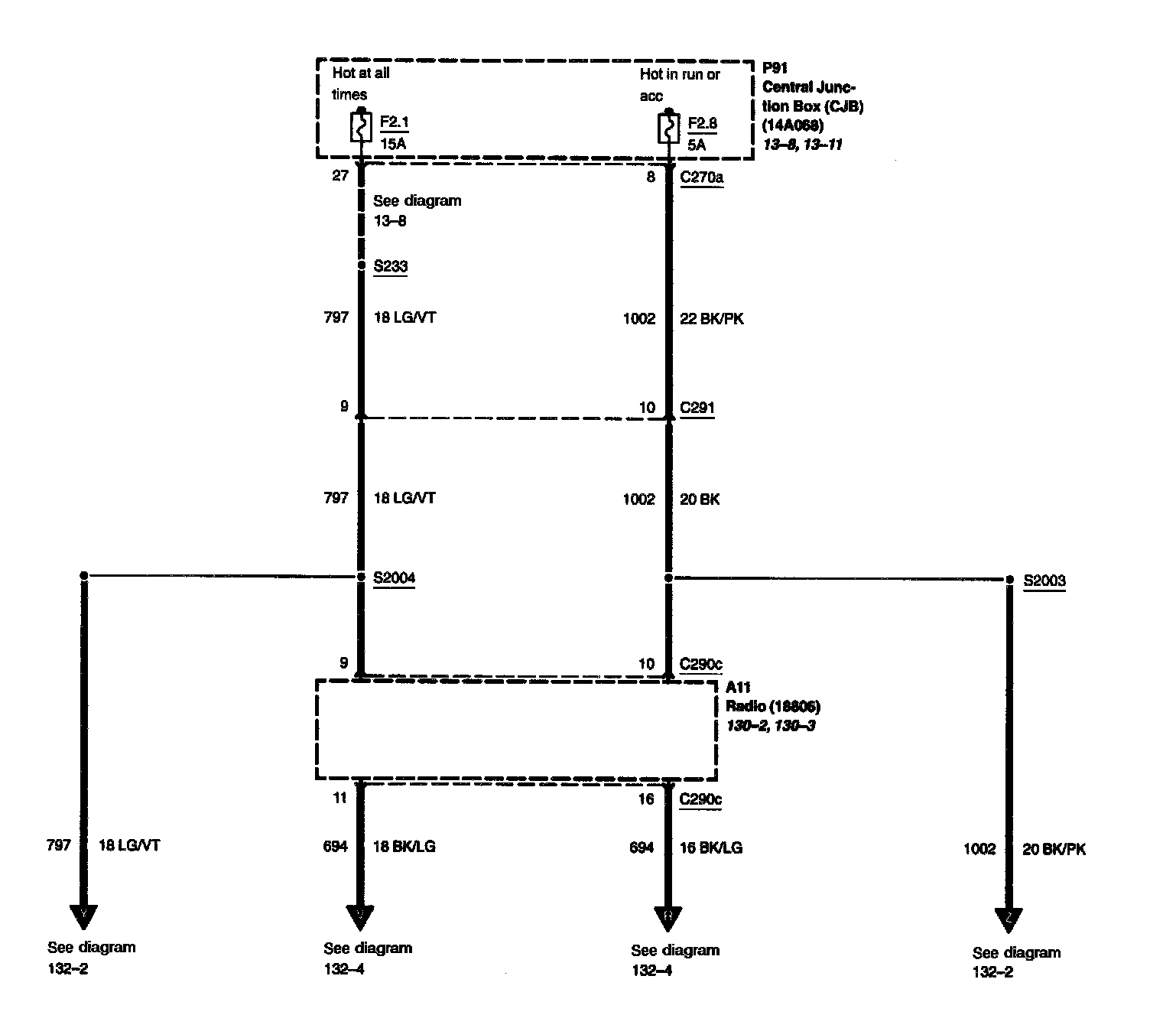

Diagram 132-3:

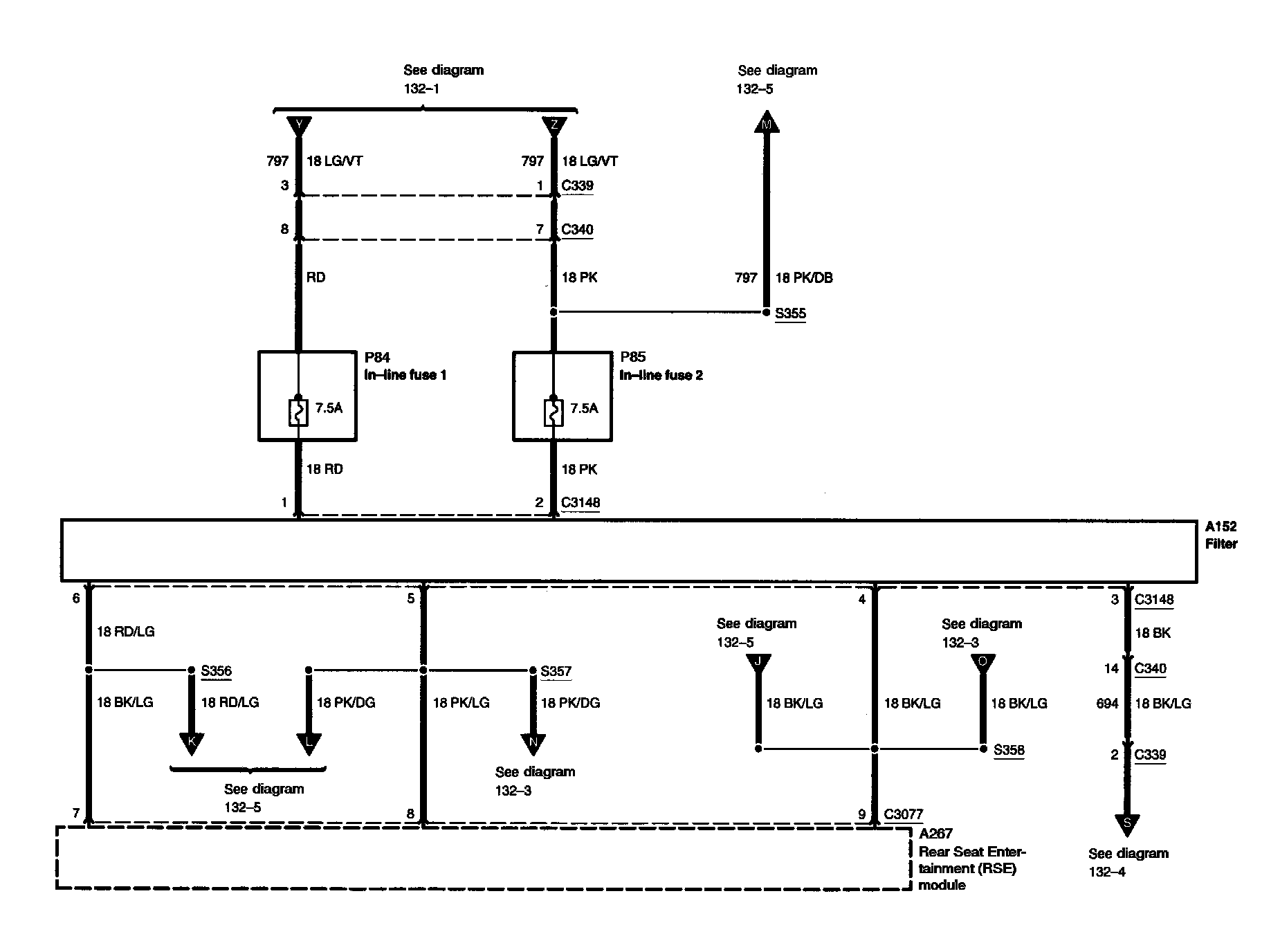

Diagram 132-4:






Diagram 132-5:
