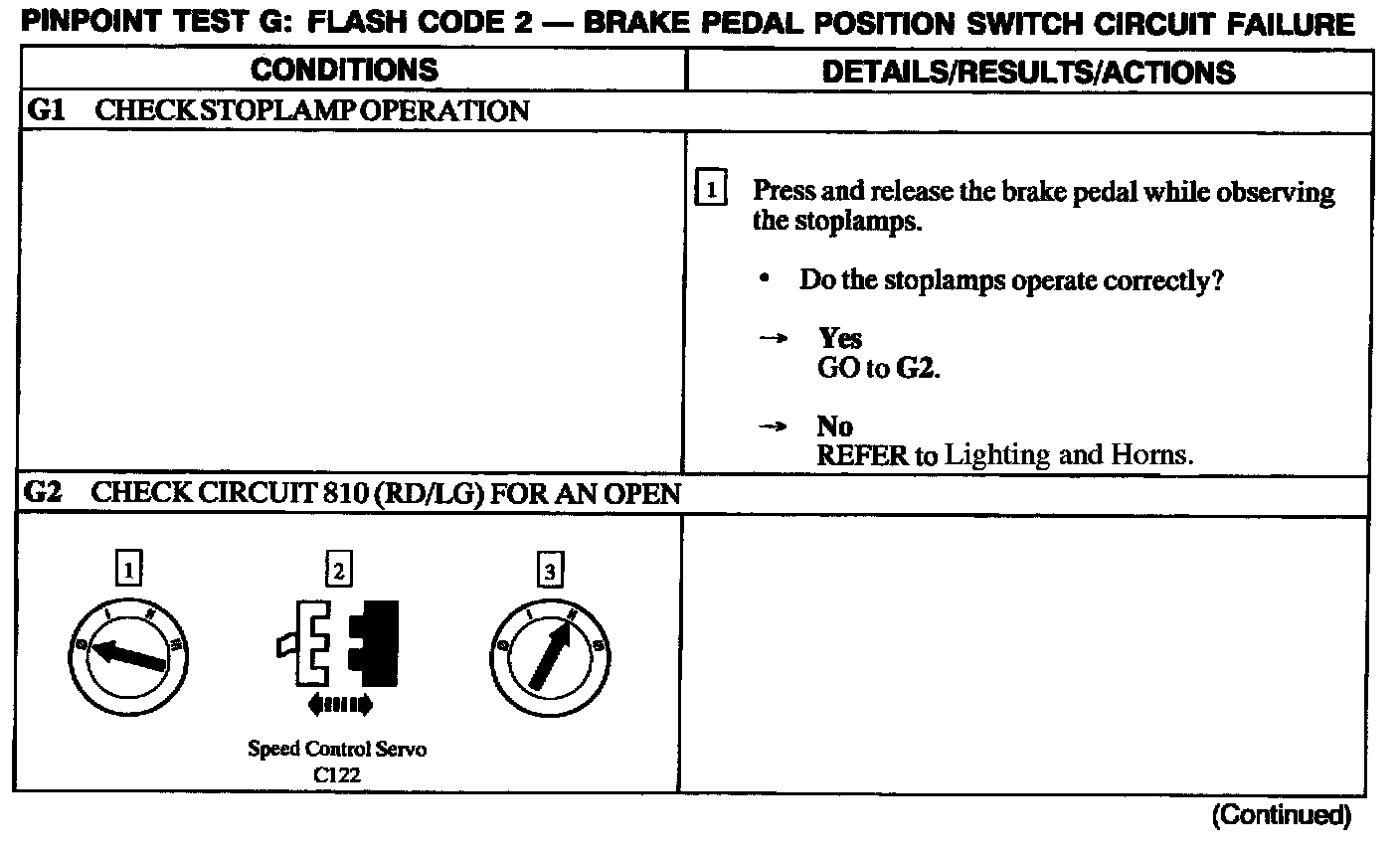

Test G: Flash Code 2 - Brake Pedal Position Switch CKT Failure

G1 - G2:






G2 - G4:






G4 - G5:






G6:
